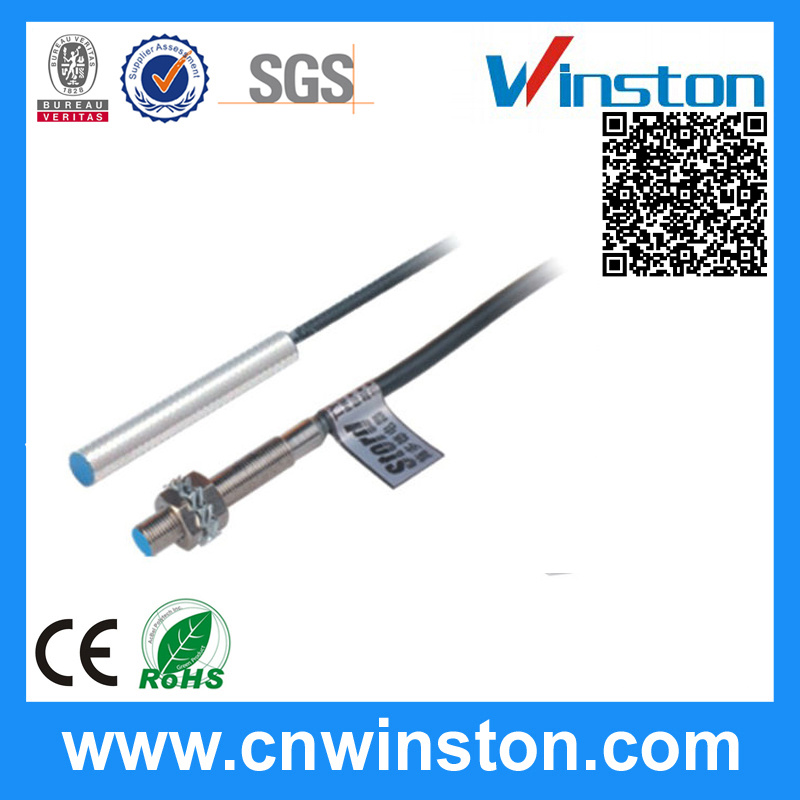

Lm4/Lm5 Inductive Proximity Swith with CE
| Price: |
US $ 5-10/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Paypal,Money Gram,Western Union |
| Prod Model: |
LM4, LM5 |
| Markets: |
North America,South America,Eastern Europe,Africa,Oceania,Eastern Asia,Western Europe |
| Brand: |
Winston |
| Max Temperature: |
55 Degree |
| Shell Material: |
Metal+Plastic |
| Slot Pitch: |
4mm |
| Rated Voltage: |
6-36V DC |
| Protect Degree: |
IP67 |
| Output Form: |
NPN PNP NPN+PNP |
| Standard: |
Standard |
| Certification: |
CE |
| Type: |
Proximity Switch |
| Wires: |
NPN PNP Two-Wires |
| Application: |
Location Detection |
Product Description
Product Description:
Compact volume
High precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof, vibration proof, water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life
Technique parameter:
1. Switch category(LM: Inductance type; CM: Capactitance type; SM: Hall type; AM: Safety explosion-proof type; XM: Mimic linear type)
2. Outward appearance code(C: Cylinder type; F: Angular column type and planeinstallation type)
3. Operating voltage(30: 6-36VDC; 310: 5-24VDC; 320: 12-60VDC; 20: 90-250VAC; 210: 24-250VAC; 220: 380VAC; 40: 12-240VDC/24-240AC; 50: Special voltage)
4. Detection distance( 01: 1mm; 05: 5mm; 10: 10mm)
5. Output method (N: Three-line DC NPN output; P: Three-line DC PNP output; L: Two-line DC output; AC two-wire output; J: Relay output; NP: NPN+PNP output)
6. Output status(A: NO; B: NC; C: NO+NC; MU: Mimic voltage; MI: Mimic current)
7. Auxi function code(T: With connector; Y: Water proof, oil proof; I: Special requirement; H: High temp resistance; R: Ring type)
| DETECTION DISTANCE 0.8mm/lmm |
F
l
u
s
h | DC
10-
30
VDC
AC
90-
250
VAC | NPN | NO | LM4-300.8NA/LM5-300INA |
| NC |
|
| NO+NC |
|
| PNP | NO | LM4-300.8PA/LM5-300IPA |
| NC |
|
| NO+NC |
|
two wire
system | NO |
|
| NC |
|
SCR
Control-
lable
silicon | NO |
|
| NC |
|
| NO+NC |
|
| Relay output |
|
| DETECTION DISTANCE |
F
l
u
s
h | DC
10-
30
VDC
AC
90-
250
VAC | NPN | NO |
|
| NC |
|
| NO+NC |
|
| PNP | NO |
|
| NC |
|
| NO+NC |
|
two wire
system | NO |
|
| NC |
|
SCR
Control-
lable
silicon | NO |
|
| NC |
|
| NO+NC |
|
| Relay output |
|
| Controloutput | DC | 200mA |
| SCR/ Relay |
|
| Output voltagc dropDC/AC | (NPN PNP)3V\: 3.9V\AC 10V DC< 3V\AC< 10V |
| Consumption current | (NPN PNP)DC 12V8mA\24V15mA\AC 10mADC< 15mA\AC< 10mA |
| Standard detected object | 6X6X1(A3 iron) |
| Repeated precision | 0.01 |
| DC/AC | 500Hz |
| Working environment temperature | -25~+70º C |
| Insulation resistance | 50MΩ |
| Shell material | Metal |
| Protection grade | IP67 |
| Altemative model at home and abroad |
|
