Lm42-3015nc Detection Distance 40mm Inductive Proximity Switch Sensor
| Price: |
US $ 3-5/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
LM42-3015NC |
| Control Output: |
200mA |
| Output Voltage Drop DC/AC: |
DC<3V AC<10V |
| Standard Detected Object: |
100×100×1(A3 Iron) |
| Repeated Precision: |
0.5 |
| DC/AC Response Frequency: |
50Hz/10Hz |
| Insulation Resistance: |
≥50mΩ |
| Shell Material: |
ABS Resin |
| Protection Grade: |
IP67 |
| Detection Distance: |
15mm |
| Wires: |
NPN (',Three-Wires) |
| Standard: |
Standard |
| Certification: |
CE |
| Application: |
Industrial |
| Type: |
Inductive Proximity Switch |
| Principle: |
Inductive |
Product Description

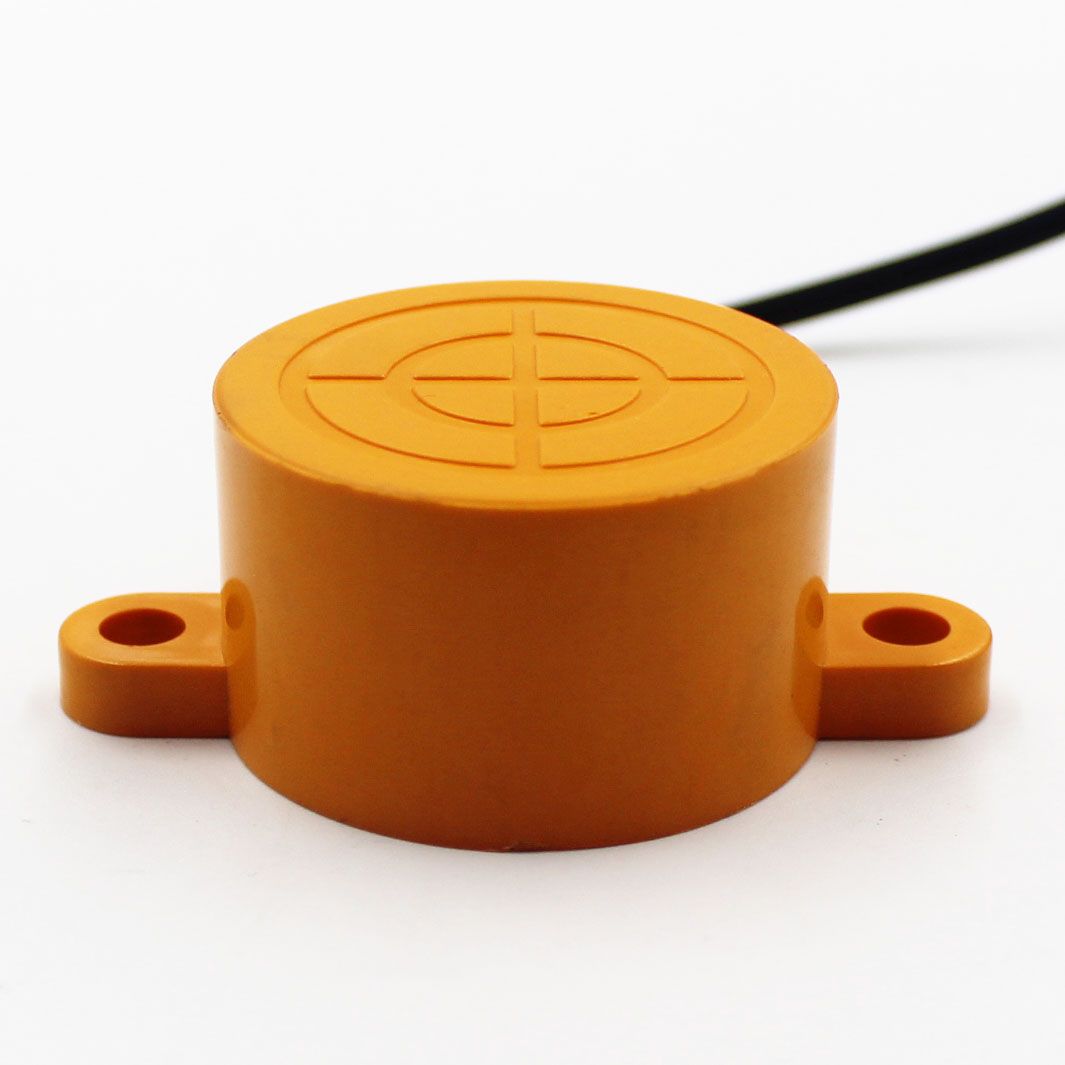

LM42-3015NC Detection Distance 40mm Inductive Proximity Switch sensor
| Structural category | Angular column type | Plane installation type |
| Outward appearance code | LMF38 | LMF39 | LMF42 |
| Outward appearance illustration | | | |
| Flush | Detection distance | - | - | - |
| DC 6~ 36 VDC | NPN | NO | - | - | - |
| NC | - | - | - |
| NO+NC | - | - | - |
| PNP | NO | - | - | - |
| NC | - | - | - |
| NO+NC | - | - | - |
| Two wire system | NO | - | - | - |
| NC | - | - | - |
| AC 90~ 250 VAC | SCR Controllable silicon | NO | - | - | - |
| NC | - | - | - |
| NO+NC | - | - | - |
| Relay output | - | - | - |
| Non-flush | Detection distance | 1 -40mm | 1 -50mm | 1-20mm |
| DC 6~ 36 VDC | NPN | NO | LMF38-3040NA | LMF39-3050NA | LM42-3020NA |
| NC | LMF38-3040NB | LMF39-3050NB | LM42-3020NB |
| NO+NC | LMF38-3040NC | LMF39-3050NC | LM42-3020NC |
| PNP | NO | LMF38-3040PA | LMF39-3050PA | LM42-3020PA |
| NC | LMF38-3040PB | LMF39-3050PB | LM42-3020PB |
| NO+NC | LMF38-3040PC | LMF39-3050PC | LM42-3020PC |
| Two wire system | NO | LMF38-3040LA | LMF39-3050LA | LM42-3020LA |
| NC | LMF38 -3040LB | LMF39 -3050LB | LM42-3020LB |
| AC 90~ 250 VAC | SCR Controllable silicon | NO | LMF38 -2040A | LMF39 -2050A | LM42-3020A |
| NC | LMF38-2040B | LMF39-2050B | LM42-3020B |
| NO+NC | LMF38 -2040C | LMF39 -2050C | - |
| Relay output | LMF38-2040JC | LMF39-2050JC | - |
| Control output | DC | 200mA | 200mA | 300mA |
| SCR/Relay | 300mA/ 2A | 300mA |
| Output voltage dropDC/AC | DC>3V , AC<10V |
| Consumption current | DC<15mA , AC<10mA |
| Standard detected object | 100×100×1(A3iron) | 120×120×1(A3iron) | 25×25×1(A3 iron) |
| Repeated precision | 0.5 | 0.5 | 0.05 |
| DC/AC Response frequency | 50Hz/10Hz | 200Hz/10Hz |
| Working environment temperature | -25 °C ~ + 75 °C |
| Insulation resistance | 50MΩ |
| Shell material | Resin .Fiber glass reinforced plastics | Resin |
| Protection grade | IP65 | IP67 |
| Altemative mode at home and abroad | TCD-2040 | TCA-2050 | - |
