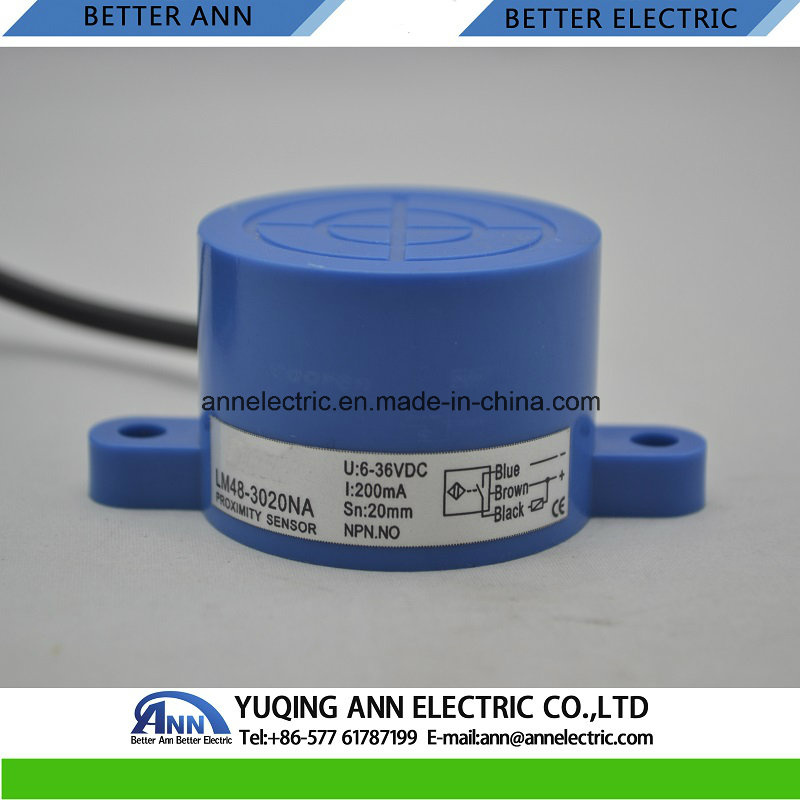

Lm48 Plane Installation Type Electric Inductiance Proximity Sensor Switch

Name: Lm48 Plane Installation Type Electric Inductiance Proximity Sensor Switch
Brand: all-electronics-online.com
SKU: 792819795
Availability: InStock
Rating: 4.5 (67 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	LM48
Detect Distance:	50-800mm
Output Type:	1 Switch Output E5
Shell Material:	Metal
Working Environment Temperature:	-25c-75c

Product Description

Compact volume
high precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof,vibration proof,water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life

Model explanation

1. Switch category(LM: inductance type; CM: capactitance type;SM:Hall type; AM:safety explosion-proof type; XM: mimic linear type)
2. Outward appearance code(C: Cylinder type; F: Angular column type and planeinstallation type)
3. Operating voltage(30: 6-36VDC; 310: 5-24VDC; 320: 12-60VDC; 20:90-250VAC; 210: 24-250VAC;220: 380VAC; 40: 12-240VDC/24-240AC; 50: Special voltage)
4. Detection distance( 01: 1mm; 05:5mm; 10:10mm)
5. Output method (N: Three-line DC NPN output;P: Three-line DC PNP output;
L: Two-line DC output; AC two-wire output;J: Relay output;NP: NPN+PNP output)
6. Output status(A: NO; B: NC; C: NO+NC; MU: Mimic voltage; MI: Mimic current)
7. Auxi function code(T: With connector; Y: Water proof, oil proof; I: Special requirement;
H: High temp resistance; R: Ring type)

Model NO.	Detection distance	Detection distance	Output		Flush
Model NO.	Detection distance	Detection distance	Form	State	Flush
LM48-3020NA	20mm	DC6-36V	NPN	NO	Non-flush
LM48-3020NB	20mm	DC6-36V	NPN	NC	Non-flush
LM48-3020NC	20mm	DC6-36V	NPN	NO+NC	Non-flush
LM48-3020PA	20mm	DC6-36V	PNP	NO	Non-flush
LM48-3020PB	20mm	DC6-36V	PNP	NC	Non-flush
LM48-3020PC	20mm	DC6-36V	PNP	NO+NC	Non-flush
LM48-3020LA	20mm	DC6-36V	Two wire system	NO	Non-flush
LM48 -3020LB	20mm	DC6-36V	Two wire system	NC	Non-flush
LM48 -2020A	20mm	AC90-250V	SCR Control label silicon	NO	Non-flush
LM48-2020B	20mm	AC90-250V	SCR Control label silicon	NC	Non-flush
LM48 -2020C	20mm	AC90-250V	SCR Control label silicon	NO+NC	Non-flush
