Lmck185-10 3000/5A IP65 Outdoor Split Core Current Transformer

Name: Lmck185-10 3000/5A IP65 Outdoor Split Core Current Transformer
Brand: all-electronics-online.com
SKU: 709483942
Availability: InStock
Rating: 4.7 (57 reviews)

Price:	US $ 199/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LMCK-185
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Class:	0.5, 1
Ratio:	300-5000/5A
Burden:	2.5va-20va
Weight:	4.5kg
Color:	Orange, Black
Types:	Outdoors Current Transformer
Output Signal:	10m Cable
Fs:	<10
Application:	Lighting
Type:	Current Transformer
Phase:	Single

Product Description

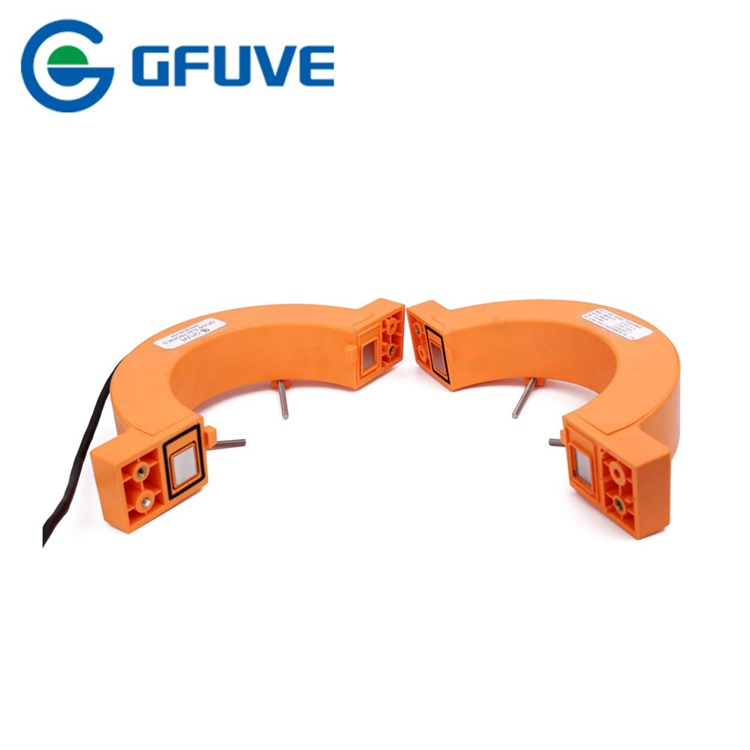

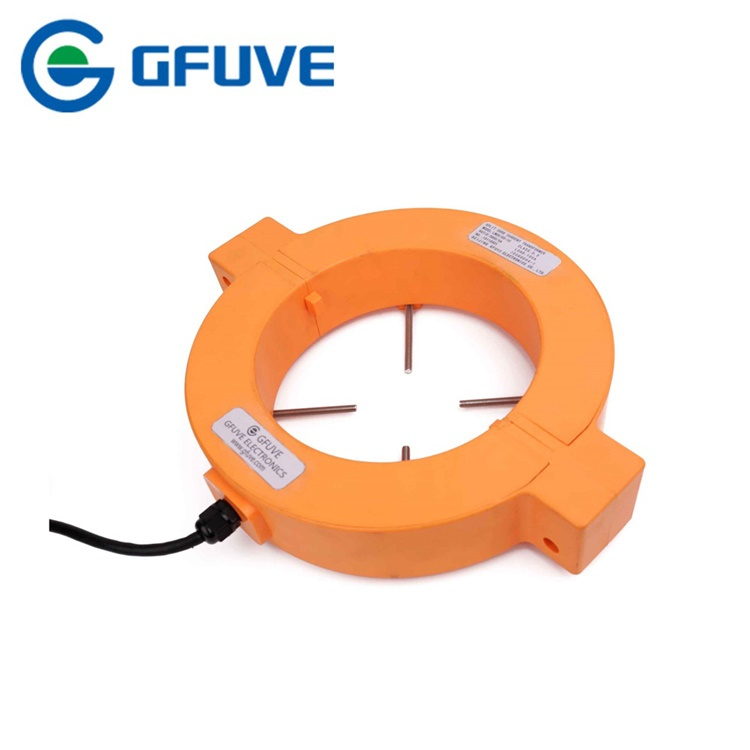

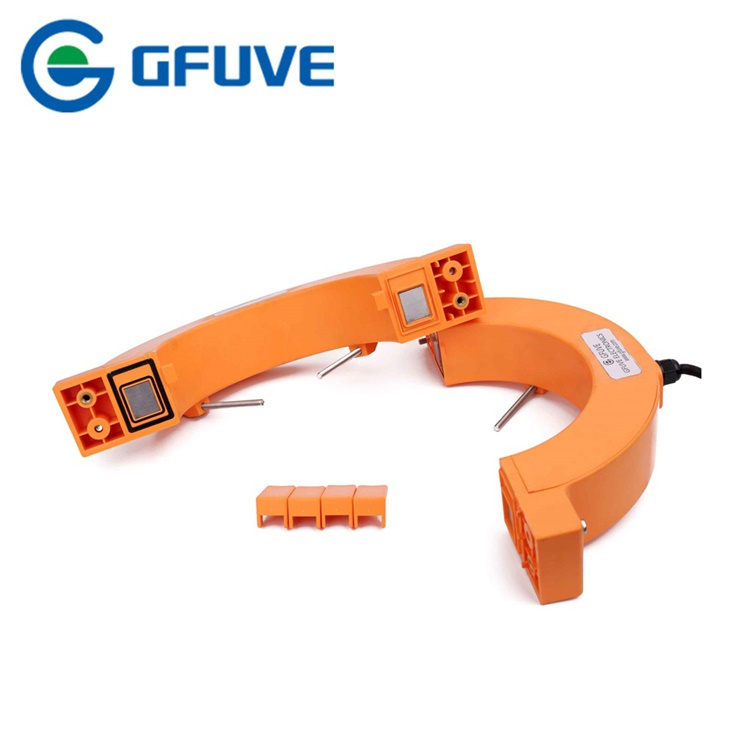

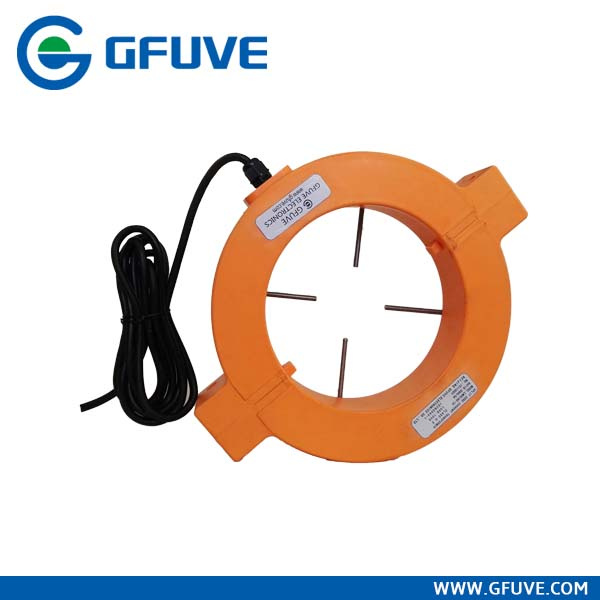

LMCK185-10 3000/5A IP65 Outdoor using split core current transformer

Product Description
LMCK185-10 Waterproof Outdoors Split Core Current Transformer
LZCK waterproof Outdoors Split Core Current Transformer applicable for AC power system 35kV and measurement of current of power supply equipment below 10KV, and microcomputer protection. This type of current transformer employs imported silican steel which with high permeability as magnetic material, have the characteristics of Small magnetic circuit loss and can be cut, its semicircular core and secondary windings employ high quality epoxy resin vacuum, casting in plastic-case which is flame retardance anti-moisture, stable performance, no maintenance.

PARAMETERS
Technical parametersMechanical parametersWorking conditions

Standards	IEC60044-1; IEC 61869-2; ANSI C57.13; NTC 2205; GB1208-2006
Accuracy Class	0.5%, 1%
Range of primary rated current	300-3000A
Range of Rated load	≤25VA
Rated frequency	50/60Hz
Rated secondary current	5A or 1A
Secondary winding power frequency withstand voltage	3kV, 1min
Safety Factor Rating	(FS) <5
Flame retardant ABS plastic shell inside, jaw waterproof apron.
Aperture (mm)	Φ185
Dimensions (W×D×H) (mm)	350×283×55
Weight (kg)	4.5
Operating temperature	-35°C to +55°C,
Environment	outdoors or indoors
The height of above sea level	0- 3000m
Conditions	No existence of severely begrimed, erosive and radioactive gas in the air. Continuous working under the rated current is allowed.

Beijing GFUVE Electronics Co., Ltd. Was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces split core current transformer, high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, current probe, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, handheld terminal and POS terminal, and power meter, power analyzer, intelligent digital meter, transducer, voltage transformer and current transformer models etc.

GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory of current probe. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, South east and Africa.

We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
