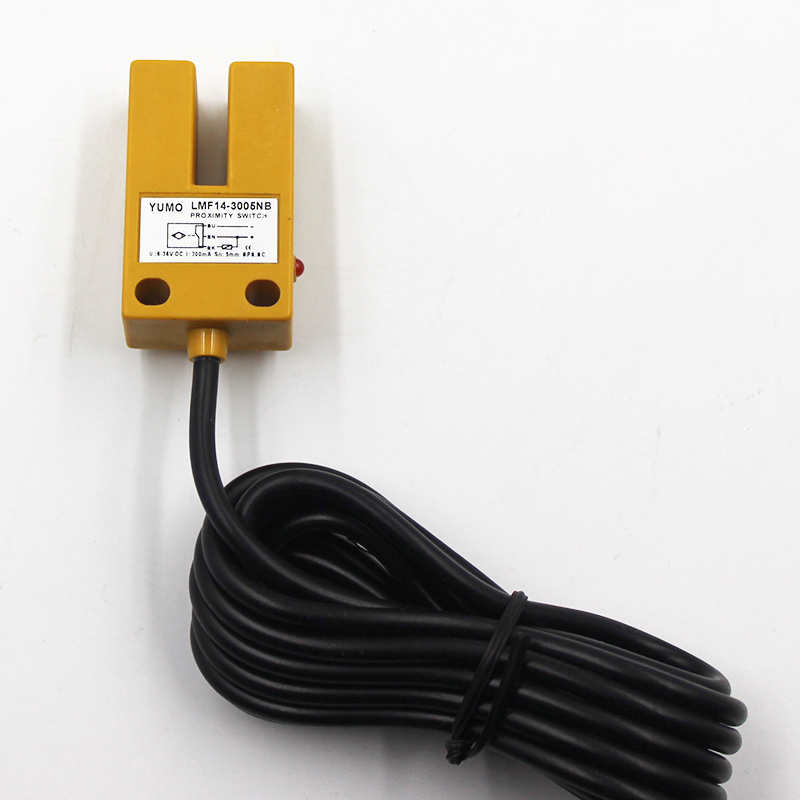

Lmf14 Angular Column Type Inductive Proximity Switch Sensor
| Price: |
US $ 2-5/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
LMF14-3005NB |
| Sensing Range: |
5mm |
| Output Signal: |
NPN |
| Operation Type: |
No+Nc |
| Voltage: |
6-36VDC |
| Output: |
DC<3V |
| Consumption Current: |
DC<15mA ;AC<10mA |
| Insulation Resistance: |
50m |
| Shell Material: |
ABS |
| IP Grade: |
IP67 |
| Control Output: |
200mA |
| Principle: |
Pyroelectric |
| Standard: |
Standard |
| Certification: |
CE |
| Type: |
Inductive Sensor |
| Wires: |
4wires |
Product Description
LMF14 Angular Column Type Inductive Proximity Switch Sensor
Product Description
Applications Diversified exterior structuresGood performance of anti-interferenceMany output formsHigh on-off frequencyWide voltage rangeDust proof, vibration proof, water proof and oil proofWith short-circuit protection and inverted connecting protectionLong service life Features1. Switch category(LM: Inductance type; CM: Capactitance type; SM: Hall type; AM: Safety explosion-proof type; XM: Mimic linear type) 2. Outward appearance code(C: Cylinder type; F: Angular column type and planeinstallation type) 3. Operating voltage(30: 6-36VDC; 310: 5-24VDC; 320: 12-60VDC; 20: 90-250VAC; 210: 24-250VAC; 220: 380VAC; 40: 1c2-240VDC/24-240AC; 50: Special voltage) 4. Detection distance( 01: 1mm; 05: 5mm; 10: 10mm) 5. Output method (N: Three-line DC NPN output; P: Three-line DC PNP output; L: Two-line DC output; AC two-wire output; J: Relay output; NP: NPN+PNP output) 6. Output status(A: NO; B: NC; C: NO+NC; MU: Mimic voltage; MI: Mimic current) 7. Auxi function code(T: With connector; Y: Water proof, oil proof; I: Special requirement; H: High temp resistance; R: Ring typeDatasheet | DETECTION DISTANCE 5MM | |
| Non-Flush | DC 10-30V | NPN | NO | LMF14-3005NA |
| NC | LMF14-3005NB |
| NO+NC | LMF14-3005NC |
| PNP | NO | LMF14-3005PA |
| NC | LMF14-3005PB |
| NO+NC | LMF14-3005PC |
| two wire system | NO | LMF14-3005LA |
| NC | LMF14-3005LB |
| AC 90-250V | SCR Control-lable silicon | NO | LMF14-2005A |
| NC | LMF14-2005B |
| NO+NC | |
| Relay output | |
| Controloutput | DC | 200mA |
| SCR/ Relay | 300mA |
| Output voltagc dropDC/AC | NPN/PNP< 3V, Two wire< 3.9V, AC< 10V |
| Consumption current | DC< 15mA, AC< 10mA |
| Standard detected object | 18*18*1(A3 iron) |
| Repeated precision | 0.05 |
| DC/AC | 500HZ/15HZ |
| Working environment temperature | -25~+70º C |
| Insulation resistance | 50MΩ |
| Shell material | ABS Resin |
| Protection grade | IP67 |
