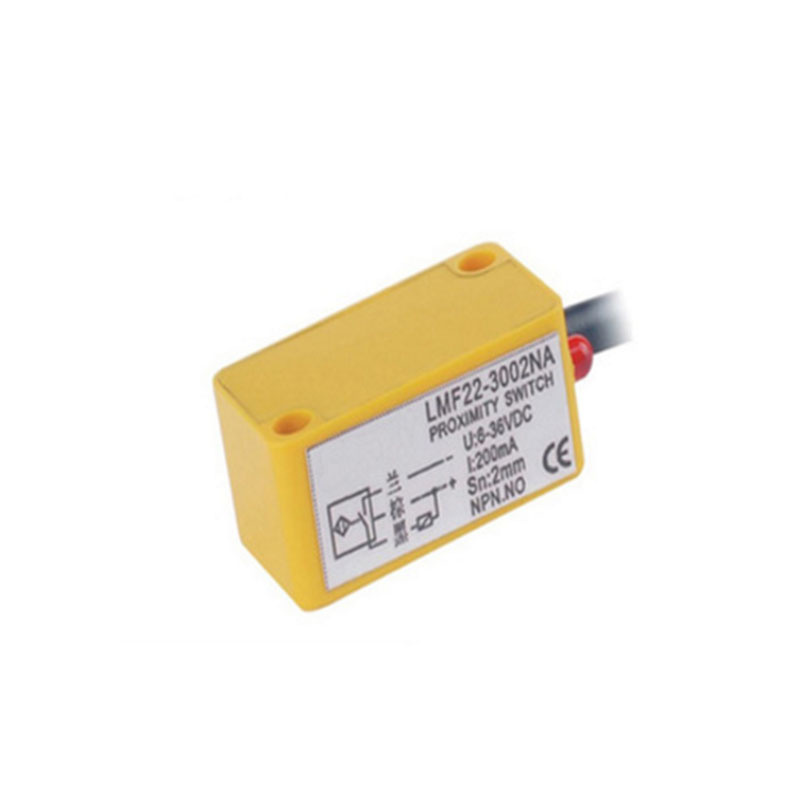

Lmf22 Detection Distance 2mm Inductive Proximity Switch Sensor

Price:	US $ 3.7-5/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	LMF22
Control Output:	DC200mA
Output Voltage Dropdc/AC:	DC<2V , DC(Two Wire System)<3.9V , AC<10mA
Consumption Current:	DC<15mA AC<10mA
Repeated Precision:	0.01
DC/AC Response Frequency:	300Hz
Shell Material:	ABS Resin
Protection Grade:	IEC Standard IP67
Standard:	Standard
Type:	Inductance Electric Proximity Sensor Switch
Principle:	Inductance
Certification:	IEC Standard IP67

Product Description

Features
Compact volume
High precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof, vibration proof, water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life

Technical Specifications

Flush	Detection distance			2mm
	DC6-36V	NPN	NO	3002NA
			NC	3002NB
			NO+NC	3002NC
		PNP	NO	3002PA
			NC	3002PB
			NO+NC	3002PC
		two wire system	NO	3002LA
			NC	3002LB
	AC90-250V	SRC Control label silicon	NO	2002A
			NC	2002B
			NO+NC
		Relay output
Non-flush	Detection distance			4mm
	DC6-36V	NPN	NO	3004NA
			NC	3004NB
			NO+NC
		PNP	NO	3004PA
			NC	3004PB
			NO+NC
		two wire system	NO	3004LA
			NC	3004LB
	AC90-250V	SRC Control label silicon	NO
			NC
			NO+NC
		Relay output
Control output		DC		200mA
		SCR/Relay		300mA
Output voltage dropDC/AC				DC<3V , DC(Two wire system)<3.9V , AC<10V
Consumption current				DC < 15mA, AC < 10mA
Standard detected object				15×15×1(A3 iron)
Repeated precision				0.01
DC/AC Response frequency				300Hz
Working environment temperature				-25ºC~70ºC
Insulation resistance				≥50MΩ
Shell material				ABS Resin
Protection grade				IEC standard IP67

Dimensions(mm)
