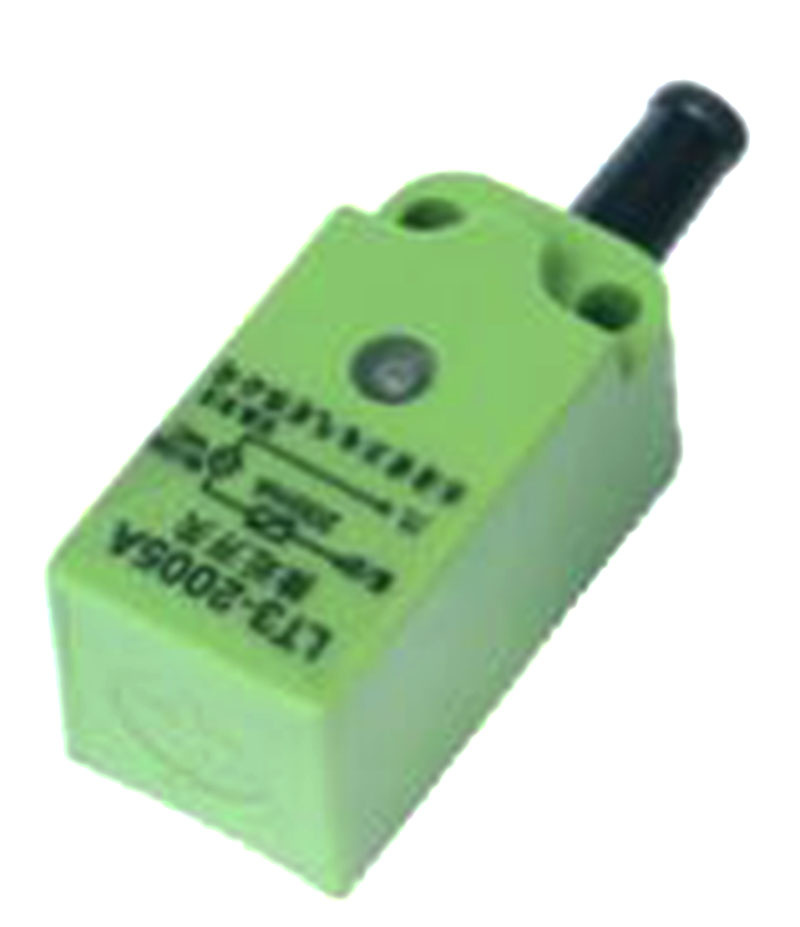

Lmf3 Inductance Electric Proximity Switch Sensor
| Price: |
US $ 3-5/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
LMF3 |
| Control Output: |
DCT200mA |
| Output Voltage Dropdc/AC: |
DC<3V AC<10V |
| Consumption Current: |
DC<15mA AC<10mA |
| Repeated Precision: |
0.02 |
| DC/AC Response Frequency: |
400Hz/25Hz |
| Shell Material: |
ABS Resin |
| Protection Grade: |
IEC Standard IP67 |
| Altemative Model At Home And Abroad: |
PS17-5pn |
| Standard: |
Standard |
| Type: |
Inductance Electric Proximity Sensor Switch |
| Principle: |
Inductance |
| Certification: |
IEC Standard IP67 |
Product Description
FeaturesCompact volumeHigh precision of repeated locationDiversified exterior structuresGood performance of anti-interference.Many output formsHigh on-off frequency.Wide voltage rangeDust proof, vibration proof, water proof and oil proof.With short-circuit protection and inverted connecting protection.Long service lifeTechnical Specifications| Flush | Detection distance | 5mm |
| | NPN | NO | 3005NA |
| DC | NC | 3005NB |
| 6 | NO+NC | |
| ~ | PNP | NO | 3005PA |
| 36 | NC | 3005PB |
| V | NO+NC | |
| | two wire system | NO | 3005LA |
| | NC | 3005LB |
| AC | SRC Control label silicon | NO | |
| 90 | NC | |
| ~250 | NO+NC | |
| V | Relay output | |
| Control output | DC | 200mA |
| SCR/Relay | 300mA |
| Output voltage dropDC/AC | DC<3V AC<10V |
| Consumption current | DC<15mA AC<10mA |
| Standard detected object | 20×20×1(A3 iron) |
| Repeated precision | 0.02 |
| DC/AC Response frequency | 400Hz/25Hz |
| Working environment temperature | -25ºC~75ºC |
| Insulation resistance | 50MΩ |
| Shell material | ABS Resin |
| Protection grade | IEC standard IP67 |
| Altemative model at home and abroad | PS17-5PN |

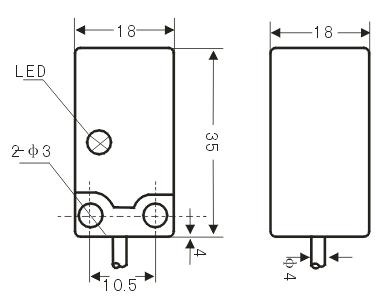

Dimensions(mm)
