Lmf30-3004nb Square Shape NPN Nc Inductive Proximity Switch Sensor
| Price: |
US $ 3-5/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
LMF30-3004NB |
| Control Output: |
200mA |
| Output Voltage Drop DC/AC: |
DC<3V AC<10V |
| Standard Detected Object: |
100×100×1(A3 Iron) |
| Repeated Precision: |
0.5 |
| DC/AC Response Frequency: |
50Hz/10Hz |
| Insulation Resistance: |
≥50mΩ |
| Shell Material: |
ABS Resin |
| Protection Grade: |
IP67 |
| Detection Distance: |
4mm |
| Wires: |
NPN (',Three-Wires) |
| Standard: |
Standard |
| Certification: |
CE |
| Type: |
Inductive Proximity Switch |
| Principle: |
Inductive |
| Application: |
Industrial |
| Size: |
60g |
Product Description

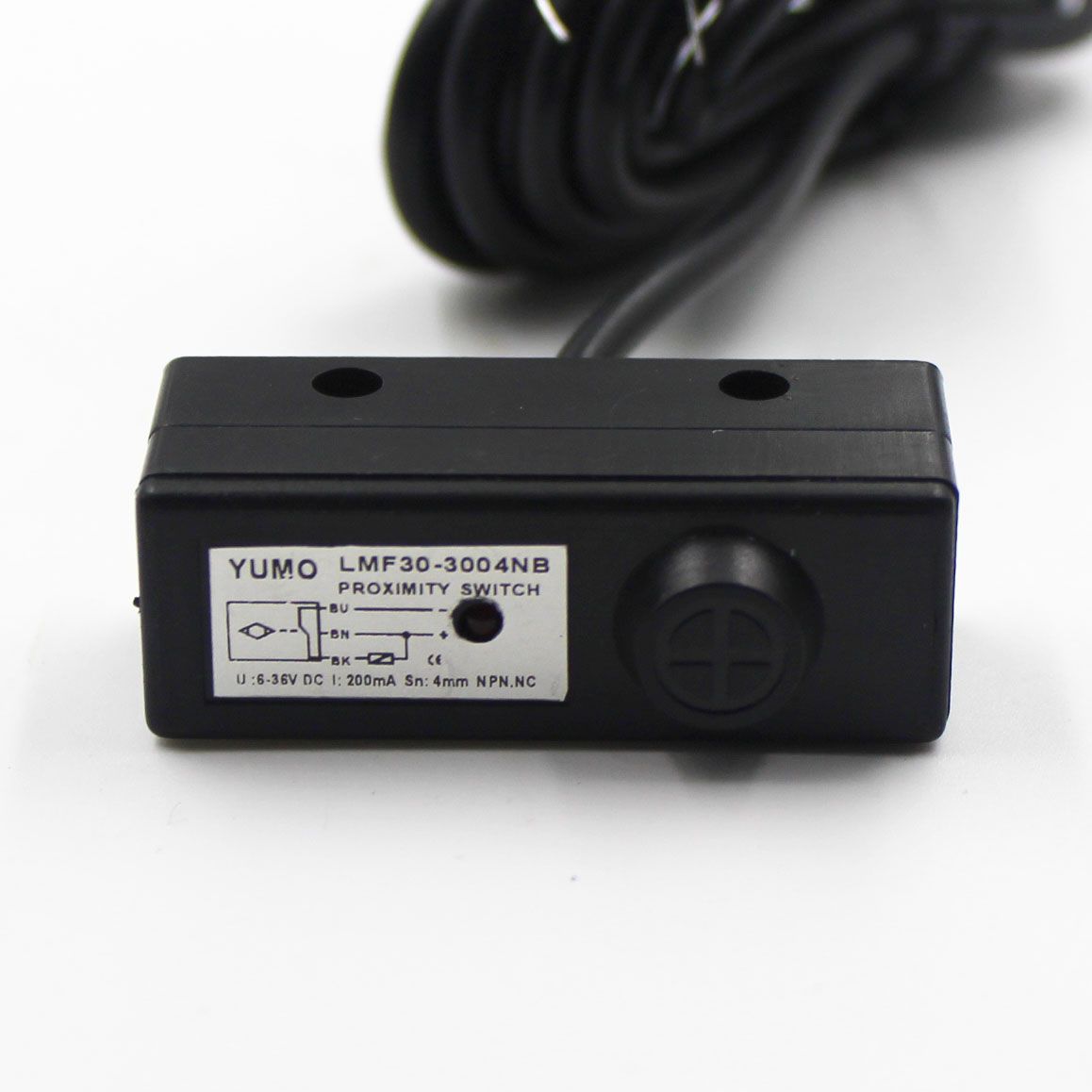

LMF30-3004NB Square Shape NPN NC Inductive Proximity Switch Sensor
Inductive proximity switch is composed of three parts: oscillator, switch circuit and magnified output circuit. The oscillator will generate an alternating electric field. When the metal object approaches this electric field and reaches the induction distance, whirlpool will generate in metal object, resulting in attenuation of vibration and then stop. The change of vibration and stop of oscillator is treated by behind stage magnified circuit and converted to switching sign, triggering driving control for non-contact detection.
OVERALL DIMENSIONS |
LMF30
| | | DETECTION DISTANCE 4mm | N
O
N
-
F
l
u
s
h |
DC
10-
30
VDC
AC
90-
250
VAC | NPN | NO | LMF30-3004NA | | NC | LMF30-3004NB | | NO+NC | LMF30-3004NC | | PNP | NO | LMF30-3004PA | | NC | LMF30-3004PB | | NO+NC | LMF30-3004PC |
two wire
system | NO | LMF30-3004LA | | NC | | SCR
Control-
lable
silicon | NO | LMF30-2004A | | NC | LMF30-2004B | | NO+NC | | | Relay output | | | | |
Controloutput | DC | 200mA | | SCR/ Relay | 300mA | | Output voltagc dropDC/AC | DC<3V AC<10V | | Consumption current | DC:<15mA AC:<10mA | | Standard detected object | 20×20×1(A3 iron) | | Repeated precision | 0.02 | | DC/AC | 25°C~+70°C |
| Working environment temperature | -25°C~+70°C | | Insulation resistance | 50MΩ | | Shell material | ABS Resin | | Protection grade | IP67 | | Altemative model at home and abroad | E2E-XIR5-M1
|
|
