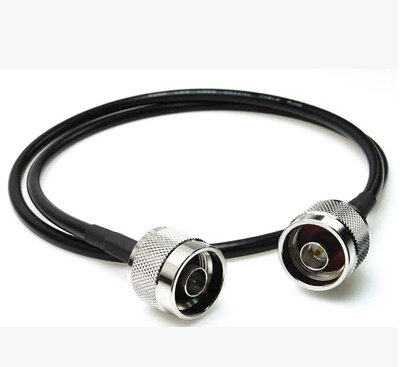

LMR195-Llpl Coax Jumper Cable with N Connector

Name: LMR195-Llpl Coax Jumper Cable with N Connector
Brand: all-electronics-online.com
SKU: 748971035
Availability: InStock
Rating: 4.8 (59 reviews)

Price:	US $ 0.05-3.0/Meter
Trade Terms:	FOB,CIF
Min Order:	2500/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LMR1995-LLPL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
50 Ohm RF Coaxial Cable:	LMR195-Llpl
Inner Conductor:	Bc/CCS
Insulation:	Foam PE
Shield:	Al Foil+Tc Braid
Jacket:	PVC
Application:	RF Cable
Conductor Material:	Copper
Cover Material:	PVC
Certification:	RoHS
Type:	Coaxial
Model:	Coaxial
Brand:	Otto Cable

Product Description

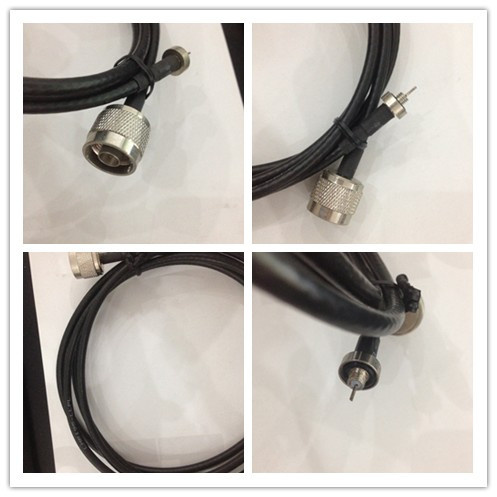

Coax Jumper Cable LMR195-LLPL with N Connector // Pigtail LMR195-LLPL

LMR195 cable assemblies works very wellwith cellphone signal boosters, repeaters, antennas.
50 ohm LMR195 can also be fixed with SMA, BNC, TNC connectors.As a substitute for RG58 coaxial cable, these versatile cable assemblies with various lengths have been widely applied to CDMA,GSM radio transmission,base radio antenna station and other communication systems.

Spec:

N type Connector, Nickle Plated Brass + Cable-Feed Connector, Heat Shrink: Fire Resistant.

Cable Length: 1M, 2M, 5M..... can be made as per customers requirements.

Coaxial Cable LMR195-LLPL
Construction
Item	Material		Diameter(mm)
Inner Conductor	Bare Copper / Copper Clad Steel		19*0.19 / 0.94
Dielectric	Foam PE		2.79
First Shield	Bonded Aluminum Foil		2.95
Second Shield	Tinned Copper / AL-Mg Wire Braid		3.53
Jacket	PVC(Fire Resistant)		4.95

Electrical Characteristics		Attenuation @20ºC (dB/100M)
Impedance(Ω)	50	@450MHz	26.5
Velocity of Propagation(%)	85	@900MHz	37.7
Return Loss(dB)	≥18	@1500MHz	48.9
Capacitance	83.3	@1800MHz	53.9
Shielding Effectiveness(dB)	≥90	@2000MHz	57.1
Operating Temperature(ºC)	-30 to +70	@2500MHz	64.3

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
