LMR200 Coax Cable Designed for Antenna

Name: LMR200 Coax Cable Designed for Antenna
Brand: all-electronics-online.com
SKU: 781378365
Availability: InStock
Rating: 4.9 (79 reviews)

Price:	US $ 0.01-1.5/Meter
Trade Terms:	FOB,CIF
Min Order:	10000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LMR200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inner Conductor:	Bc
Shield:	Double Shield
Insulation:	Foam PE
Jacket:	PVC/PE
Application:	RF Cable
Conductor Material:	Copper
Cover Material:	PVC
Certification:	RoHS
Type:	Coaxial
Model:	LMR200
Brand:	Otto

Product Description

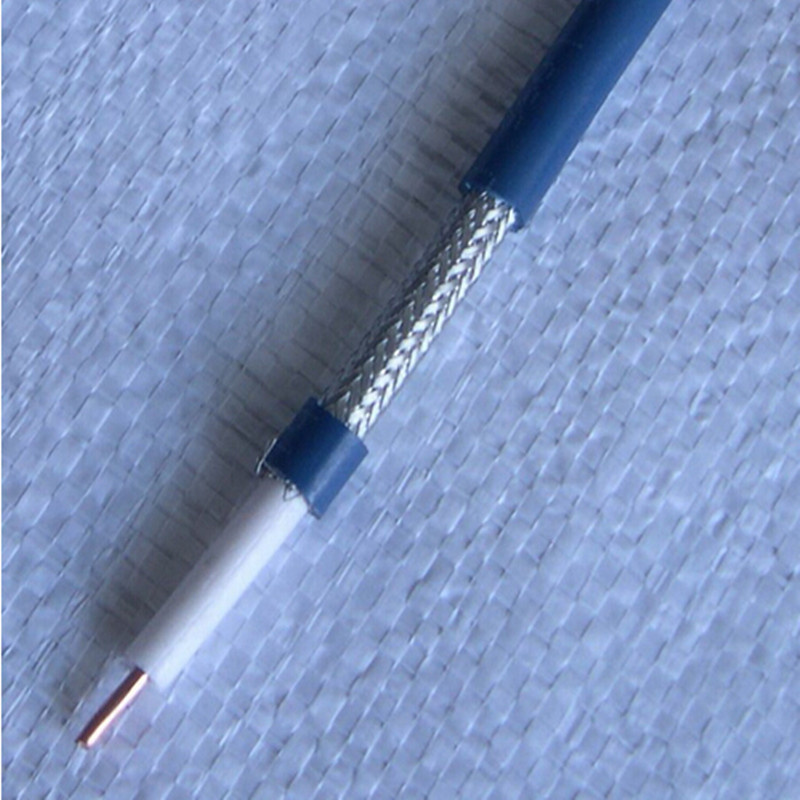

LMR200 Coax Cable Designed for Antenna

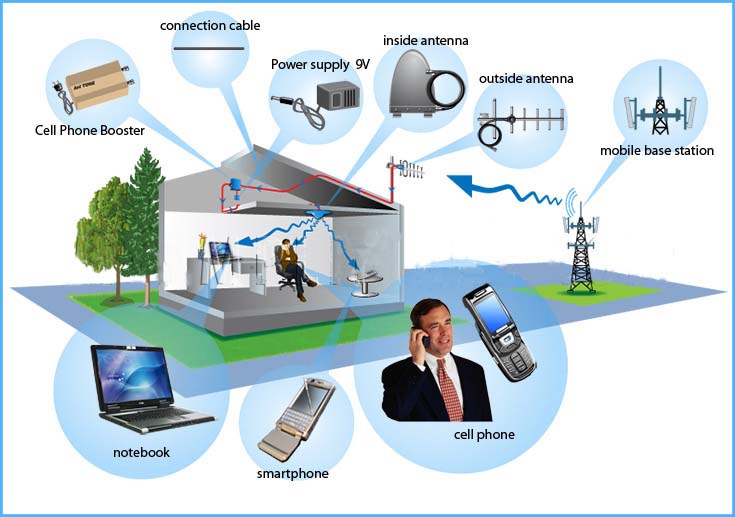

This LMR200 coaxial cable and its assemblies works very well with cellphone signal boosters, repeaters and have already been widely used to DAS,radio transmission,base radio antenna station and other communication systems.

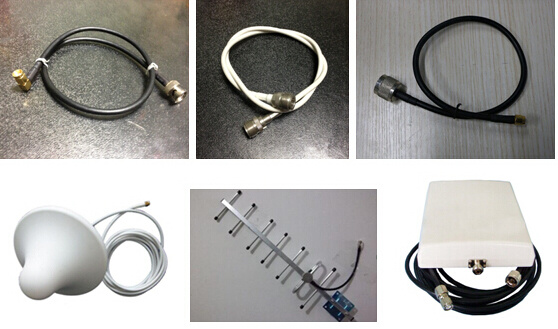

Cable LMR200 can be terminated with connectors like :N, BNC, TNC,SMA and etc.,

Coaxial Cable LMR200
Construction
Item	Material		Diameter(mm)
Inner Conductor	Bare Copper / Copper Clad Steel		1.12
Dielectric	Foam PE		2.95
First Shield	Bonded Aluminum Foil		3.07
Second Shield	Tinned Copper / AL-Mg Wire Braid		3.66
Jacket	PVC		4.95

Electrical Characteristics		Attenuation @20ºC (dB/100M)
Impedance(Ω)	50	@450MHz	23.8
Velocity of Propagation(%)	83	@900MHz	33.6
Return Loss(dB)	≥18	@1500MHz	43.4
Capacitance	83	@1800MHz	48.0
Shielding Effectiveness(dB)	≥90	@2000MHz	51.0
Operating Temperature(ºC)	-30 to +70	@2500MHz	57.6

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
