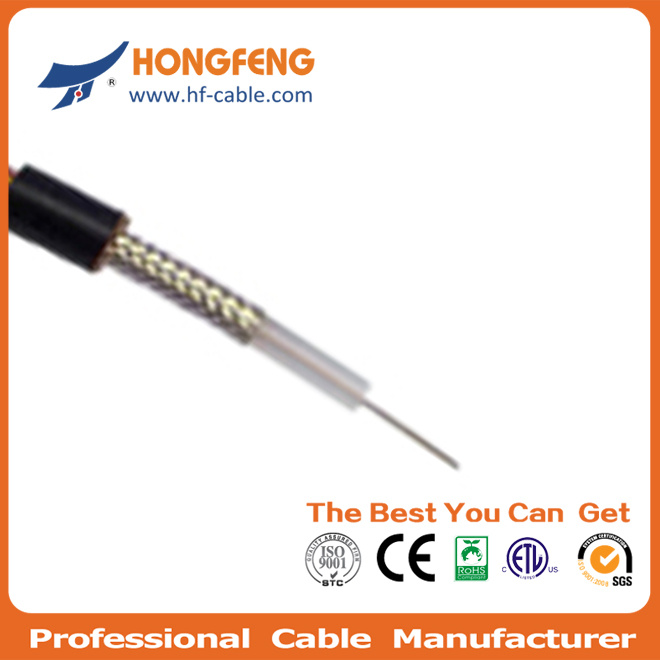

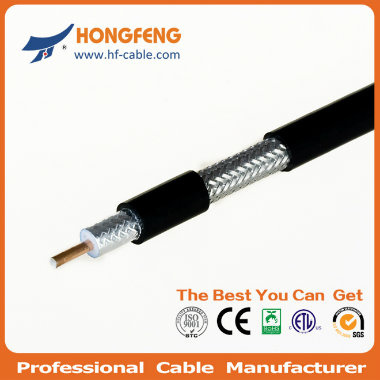

LMR300 CCTV/CATV Telecom Coaxial Cable

Prod Model:	LMR300 cable
Inner Conductor:	Cu/CCS/CCA
Inner Conductor Od:	1.78 mm
Dielectric:	4.83mm Foam PE
Shielding 1:	Al Foil Pet/Bonded
Shielding 2:	Tc Wire
Shielding Coverage:	88%-98%
Jacket Of LMR200:	7.62mm PVC/PE RoHS/UV
Drop Cable LMR200:	LMR195 Coaxial Cable
Coaxial Cable LMR200:	CATV Cable LMR300
OEM LMR300 Cable:	LMR300 Cable
Application:	RF Cable
Conductor Material:	Copper
Cover Material:	PVC
Certification:	ETL
Brand:	Hf/OEM
Type:	Coaxial

Product Description

LMR300 for telecommunication coaxial cable manufacturer

Item	Material	Diameter(Inch/mm)
Inner Conductor Dielectric Out Conductor Overall Braid Jacket	Bare Copper Foam PE Bonded Aluminum Tinned Copper Wire Braid PVC/PE	0.070 0.190 0.196 0.225 0.300	1.78 4.83 4.98 5.72 7.62

Electrical Characteristics

Impedance Ohm Capacitance Pf/m Velocity of Propagation % Return Loss Screening Effectiveness DC Resistance Ohms/KM Inner Conductor Outer Conductor Voltage Withstand Installation Temp °C Operating Temp  °C

50 ±3 78.4 85.0 ≥20 ≥90   7.0 7.3 2000.0 -40 to +85 -40 to +85



Attenuation @20 °C

Frequency (MHz)	Max Attenuation (dB/100 ft)	Max Attenuation(dB/100 m)
30 50 150 220 450 900 1500 1800 2000 2500 5800	1.1 1.4 2.4 2.9 4.2 6.1 7.9 8.7 9.2 10.4 16.5	3.5 4.5 7.9 9.6 13.8 19.9 26.0 28.7 30.3 34.2 54.2

1. LMR series 50 Ohm RF cable Applications:
Jumper assemblies in wireless communications systems
Short antenna feeder runs
Coaxial Cable may be used in many applications

2. Package:
1) Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.

Q/A:

Q1: Are you a trading company or manufacture?
A1: HF cable is a professional manufacture, not a trading company, Thus, we can control your order from the first begining to the last.

Q2: What is your delivery time?
A2: Normally, our delivery time is 15-25 days after PO confirmation, but every inquiry will be based on the quantity.

Q3: What is your MOQ?
A3: Usally, the MOQ of our general coaxial cable product is 15-20M, but every inquiry will be considered individually.

Q4: What is your general payment term?
A4: Usally we require advanced payment, and the balance before shipment, but every inquiry will be quoted taking client, orders and other factors into consideration

Q5: What is your commerial item?
A5: Usually we adopt FOB Ningbo/Shanghai, CIF, CFR and others.

Q6: What is your main packing pattern?
A6: For inner packing: Wooden reel, plastic reel, paper reel, shrink wrap:
For outer packing: Carton box, pull-out box and pallet
Other packing methods are available after confirmation with clients

Q7: Can you produce the specfic cable strictly according to clients' requirement
A7: Yes, we can. We have talented technical team and production team.
