LMR400 Low Loss 50 Ohm Rg174 RF Coaxial Cable with PTFE

Name: LMR400 Low Loss 50 Ohm Rg174 RF Coaxial Cable with PTFE
Brand: all-electronics-online.com
SKU: 640158035
Availability: InStock
Rating: 4.6 (116 reviews)

Price:	US $ 0.01-1.2KM
Trade Terms:	FOB,CFR,CIF
Min Order:	10KM
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG174
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Center Conductor:	CCS/Bc
Conductor Size:	7*0.16mm
Dielectric:	1.6mm Solid PE
Shielding:	90% Tc Braiding
Jacket:	2.7mm PVC
Impedance:	50 Ohm
Velocity Of Propagation:	66%
Capacitance:	100 PF/M
Sparker Test:	3000 VAC
SRL:	23 Db (50-300 MHz)
Application:	RF Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	UL
Type:	Rg174
Model:	Rg174
Brand:	Xingfa

Product Description

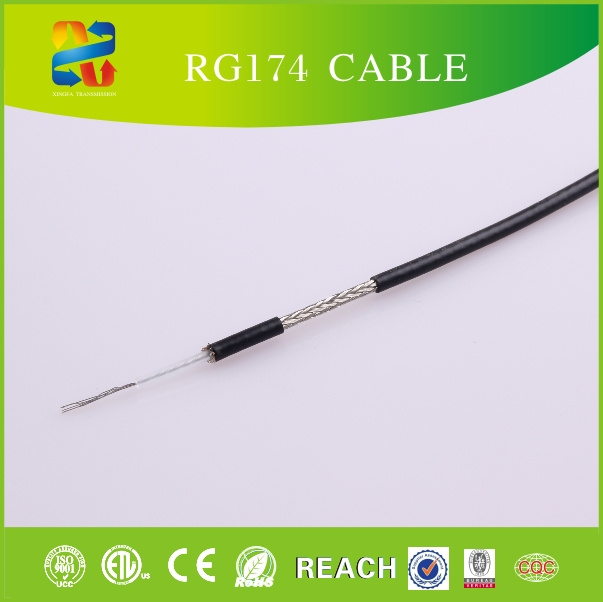

Low Loss Cable RF Coaxial Cable-RG174

Application
Transimission of data signals in applications such as LAN/WAN or GPS

Features
Small diameters, flexible
Operating Temperature Rating: -25°C ~ +70°C
Min. Bend Radius(Install): 10mm

BASIC CONSTRUCTION

		RG174
CONDUCTOR	MATERIAL	CCS/BC
CONDUCTOR	Nom.Dia.	7*0.16mm(0.48mm)
DIELECTRIC	MATERIAL	PE
DIELECTRIC	Nom.Dia.	1.60mm
SHIELD	MATERIAL	TC braiding
SHIELD	COVERAGE	90%
JACKET	MATERIAL	PVC
	Nom.Thick.	0.5mm
	Nom.Dia.	2.7±0.10mm

BASIC CHARACTERISTICS

Nominal Impedance(ohm)		50±2
Nominal Velocity of Propagation(%)		66
Nominal Capacitance(pF/m)		100
Sparker Test(VAC)		3000
SRL(dB)	50-300	23
	300-1000	21
Attenuation [68° F(20ºC)]	Frequency(MHz)	Maximum(dB/100m)
	10	9.80
	100	31.0
	400	74.0
	1000	120
	2000	170
	3000	210

Packing
1) Packing Lengths:100/roll,200 m/roll, 300m/roll. 305m/roll

2) Inner Packing: Wooden reel, plastic reel, and paper reel

3) Outer Packing: Carton box, pull out box, pallet available

4) Other packing available according to clients' request

About US
We HANGZHOU XINGFA TRANAMISSION EQUIPMENT CO., LTD. is TOP3 cable manufacturer in Linan, Hangzhou,China. We have more than 18 years experience in the communication cable industry in China. We mainly prouduce Coaxial Cables, Lan Cables, Alarm Cables, Speaker Cables, Telephone cables and so on.

We Hangzhou Xingfa Technology Co., Ltd is a Pioneer manufacturer with more than 15 years experience in the communications cable industry in China. We can professionally manufacture and supply coaxial cables(RG59, RG6, RG11, RG213, KX6 etc. ), LAN cables(CAT5, CAT6, UTP, FTP, SFTP), alarm cables, telephone cables and the cable assembly etc, and many are approved by CE, ETL, RoHS and REACH. The current production capacity is about 300, 000, 000meters per year.

Our company is located in Lin an city, enjoying great convenience to China's Biggest Port - Shanghai Port and Ningbo Seaport. It takes 2 hours from Shanghai airport to our factory, and It just take 1 hour from Hangzhou airport to our factory.

Our company has high-tech and advanced imported equipment: Automatic number series of tandem wire drawing-insulation line, dozens of high speed braiding machines, numbers of high-quality physical foaming insulation line, also dozens of Twisting machines, Laying-up machine, and wire coil wrapping machines. With good quality and best after-sales service, our annual turnover can reach 33 million Dollars, production capacity is 300, 000Kilometers.

We have over 200 employees and 15 professional international sales team. About 5 person for Research and Development. More than 15 people for Quality Control. We carefully test cables under ISO9001-2000 quality management before shipping to the customers. And our quality is always reliable.

Most of our products are exported to Europe, America, and South-east Asia. etc. What is more, our company always devotes to developing custom cables according to clients needs. We look forward to working with you and getting mutual benefit in future.

"Quality First, Customer First" is the policy we stick to forever. Customer's most satisfaction is our biggest honor, too. All customers abroad are welcome to visit our company and make business discussion. Long-term cooperation is highly appreciated.
