| Prod Model: |
WP401A |
| Pressure Type: |
Gauge Pressure(G), Absolute Pressure(a), Sealed Pr |
| Process Connection: |
G1/2,M20*1.5,1/4NPT,1/2NPT, Customized |
| Electrical Connector: |
Terminal Block, Cable |
| Output Signal: |
4-20mA (1-5V); 4-20mA with Hart Protocol |
| Power Supply: |
24V DC |
| Compensation Range: |
-10~70dgree C |
| Name: |
LNG Liquid Natraul Gas Pressure Sensor |
| Measuring Medium: |
Gas, Oil, Liquids, Steam |
| Pressure Range: |
0--+/-0.2kpa~+/-100kpa, 0-0.2kpa~400MPa |
| Certification: |
Ex, ISO9001, CMC, CPA, RoHS |
Product Description

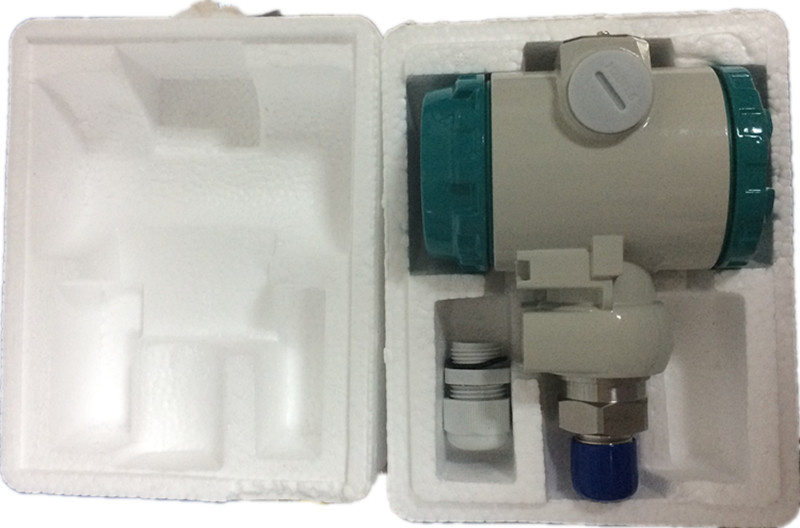

LNG Liquid Natraul Gas Pressure sensor
Model: WP401A
Application:
This pressure snsor can be used to measure and control pressure in Petroleum and chemical industry, Electric power, water supply, Oil & Gas, CNG/LNG Station and other automatic control industries.
Description:
1. WP401A Industrial gas pressure sensor adopt advanced imported sensor component, which is combined with the solid state integrated technological and isolate diaphragm technology.
2. The pressure transmitter is designed to work well under various conditions.
3. The temperature compensation resistance makes on the ceramic base, which is the excellent technology of the pressure transmitters.
4. Various output signal 4-20mA (2-wire), strong anti-jamming, it is suitable for long distance transmission.
Features:
Imported advanced sensor component
Measure pressure of Corrosive medium
World-class pressure transmitter technology
Compact dimension design, strong
Light weight, easy to install, maintenance-free
Range can be adjusted in external, widely range of shift
100% Linear meter is configurable
3 1/2 LCD or LED digital indicator is configurable
Explosion-proof type: Ex iaIICT6, Ex dIIBT4
Specification:
| Pressure range: | 0--+/-0.2kPa~+/-100kPa, 0-0.2kPa~400MPa. |
| Pressure type: | Gauge pressure(G), Absolute pressure(A), Sealed pressure(S), Negative pressure (N). |
| Output signal: | 4-20mA (1-5V); 4-20mA with HART protocol; 0-10mA(0-5V) |
| Power supply: | 24V DC; |
| Electrical connection: | Cable, Terminal block |
| Compensation range: | -10~70 degree C |
| Operation temperature: | -40~85 degree C |
| Overload pressure: | 150%FS |
| Pressure connection: | M20*1.5, G1/2, |
| Accuracy: | 0.5%FS, 1.0 %FS, |
| Wetted part: | Stainless steel 304 or 316L |
| Ordering guide: WP401A-0.6MPa-M20*1.5-4-20mA-24VDC-0.5%FS-ExdIIBT4 |
Our service:
1. We have rich experience of OEM, factory can manufacture according to your request.
2. We could also send the goods which is labelling your brand name to your customer's warehouse directly.
3. We can offer you neutral packing without our logo and company information.
4. Warranty: We offer 12 months warranty for all of our products from shipping date;
5. You will enjoy free repair service for failures found within the warranty, if there are any problems of manufacturing quality;
6. We provide paid repair services for instrumentation damages beyond the warranty period or not arising from manufacturing quality problem.
