Load Break Switch
| Price: |
US $ 400-10000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
LXFZN25-12D/T630-20, LXFZRN25-12D/T200-31.5 |
| Breaking Capacity: |
High Voltage Circuit Breakers |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Vacuum |
| Installation: |
Fixed |
| Poles Number: |
3 |
| Certification: |
CCC |
| Operation: |
Manual & Electric Type |
| Structure: |
Vcb |
Product Description
Basic Information:
Model NO.: LXFZN25-12D/T630-20/ LXFZRN25-12D/T200-31.5
Poles Number: 3
Type: Circuit Breaker
Function: Conventional Circuit Breaker
Certification: ISO9001-2000
Rated Voltage: 12kv
Scope of Application: Indoor
Customized: Available
Brand: Longxiang
Vlotage: High Vlotage
Transport Package: in Wooden Case
Origin: Baoji City
HS Code: 85352100 Product Description:
Advantages: 1.Our Company Has Great Reputation In Domestic Market.
2.Good Quality Guaranteed With Reasonable Price.
3.OEM, ODM Are Welcomed.
4.Goods Will Be Delivered On Time.

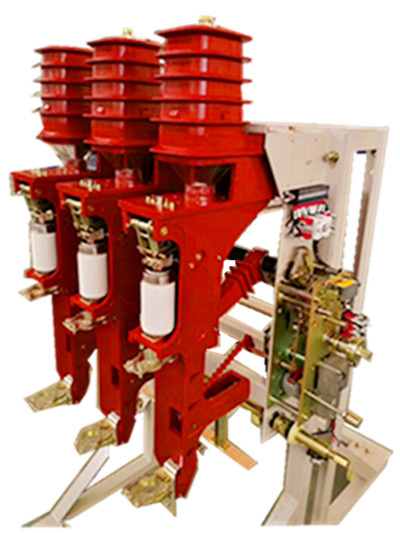

5.Factory Selling DirectlySummary:LXFZN25-12D/T630-20, LXFZRN25-12D/T200-31.5 type vacuum load switch , suitable for three-phase 50Hz ring network or terminal power supply and industrial electrical equipment, load control and short circuit protection, load switch, load, closed loop current, no-load transformer and cable charging current. A combined appliance can be switched off until any current is rated for short-circuit current. Straight action type isolation fracture and vacuum arc extinguishing chamber are adopted. It has manual and electric functions.
LXFZN25-12D/T630-20 and LXFZRN25-12D/T200-31.5 unique transmission structure design, arc extinguishing chamber only in closing and breaking of the moment to withstand high pressure, so small size, light weight.
LXFZN25-12D/T630-20 and LXFZRN25-12D/T200-31.5 can realize the one-time operation of isolating fracture and arc chamber fracture.
The grounding valve which is mutually linked with the grounding switch is arranged between the static contact and the movable contact conductive cylinder of the LXFZN25 and LXFZRN25, and the utility model not only ensures the safety, but also facilitates the overhaul.
Use environmental conditions:
1. Ambient air temperature limit: +40 degrees, lower limit: -25 degrees
2. Altitude is not more than l000m;
3. Relative humidity is not greater than 95% daily average monthly value is not greater than 90%
4. The earthquake intensity is not more than 8 degrees;
5. No fire, explosion hazards, chemical corrosion and severe vibration of the place;
6. Pollution level: level II;
Company Introduction
General
Shaanxi Longxiang Electrical Co., Ltd. is a specialized manufacturer of making vacuum circuit breaker covering the voltage range of 12kV~40.5kV, which is located in Gaoxin 19th Road, East Development Zone, Baoji city, Shaanxi province. It occupancies total area of 18800 square meters including building area of 12800 square meters. The annual production capacity of vacuum circuit breaker is 16000 sets.
Professional management team and extensive market supply
Shaanxi Longxiang Electrical Co., Ltd is in posseeion of professional management team, main of them were from middle of high level management of large-scale enterprises in this industry, with more than 20 years working experience accumulation, professional knowledge and managerial experience, we focus on technology innovation based on market-oriented concept. The products are widely used in national power, petrochemical, smelting, aviation industry etc. And also exporting to Italy, Russia, Iran, India and other international markets. We also have established long-term strategic cooperation relations with several specialized manufactures of power transmission and distribution in the world.
Reliable technique and continuous improvement of quality control
Having professional R&D team to supply technical support, and cooperating with related research institutes, all these guarantee our product in pioneer level on its technique. Besides, our advanced production line can control the quality of any procedures, and all products will be inspected strictly before delivery.
