Load Button Load Cell with Small Dimension (compression-B109)

Name: Load Button Load Cell with Small Dimension (compression-B109)
Brand: all-electronics-online.com
SKU: 820187785
Availability: InStock
Rating: 4.7 (91 reviews)

Price:	US $ 80/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	B109
Pattern:	Load Button
Out-Wire:	5 Wires
Feature:	Low Profile
Production Process:	Strain Gauge
Certification:	SGS

Product Description

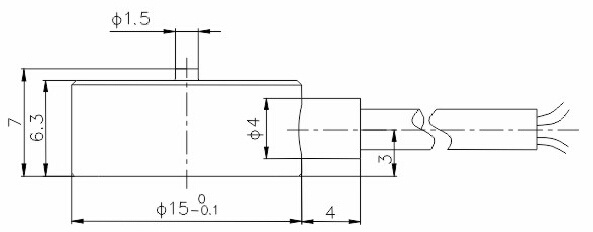

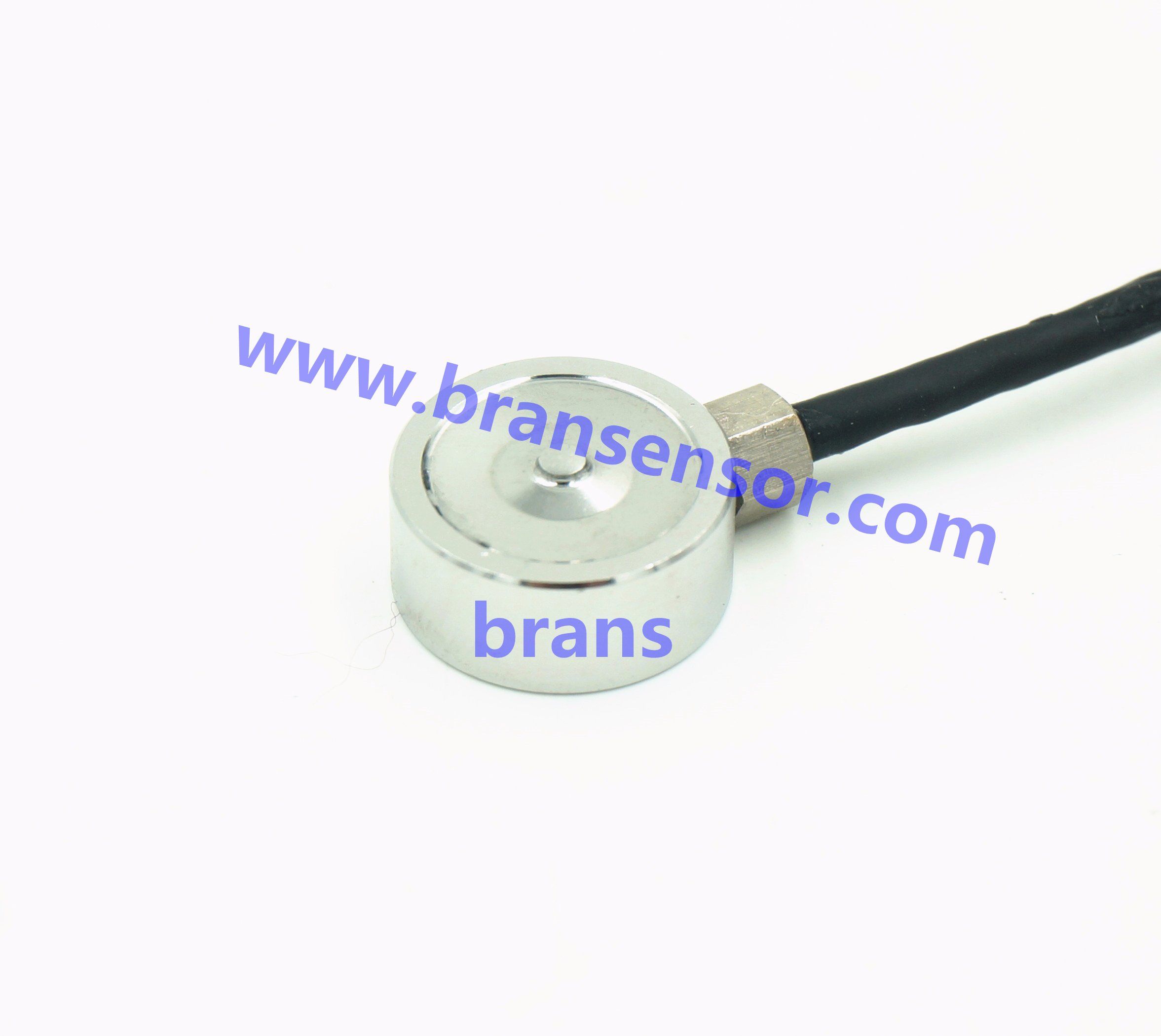

1. Products Name: B109 miniature force sensors load cells

2. Details: The compression series is only 13mm in diameter and fits in the smallest places. Its high accuracy and small package solve many industrial force measurement applications. All stainless steel construction and high quality strain gauge assures long term reliability in industrial environments. This was built for Pression, inline compression control and force measurement applications. Wheatstone bridge and thin-film strain gauge provide extremely low power consumption as well as unmatched long term stability.

B108 is also available in metric configurations, with ranges from 0-50 to 0-1,000 N. Please see the sensor for complete details from attached.

However, if your range requirements are different do not hesitate to contact us and we will strive to meet the desired parameters.

3. Datasheet

Number	Specifications	Technique Data
1	Capacity	50,100,200,300,500,1000N
2	Rated output	1.5±15%mV/V
3	Zero balance	±0.03 mV/V
4	Non-linearity	0.50%F.S.
5	Hysteresis	0.20%F.S.
6	Repeatability	0.20%F.S.
7	Creep(30min)	0.20%F.S.
8	Temp.effect on output	0.05%F.S./10ºC
9	Temp.effect on zero	0.05%F.S./10ºC
10	Input impedance	800~1100Ω
11	Output impedance	800~1100Ω
12	Insulation	≥5000MΩ/100VDC
13	Recommended excitation	5V
14	Maximum excitation	10V
15	Compensated temp range	-10~60ºC
16	Operation temp range	-20~80ºC
17	Safe overload	120%F.S.
18	Ultimate overload	150%F.S.
19	Cable size	φ2×4000mm
20	Weight approx.	0.1kg
21	Material	Stainless Steel
22	IP Class	IP66
