Load Cell for Injection Molding Machine Equipment

Load Cell for Injection Molding Machine Equipment
Price: US $ 55-120/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: YLP301S
Accuracy Class: C2 & C3
Excitation Voltage: 9-12VDC
Safe Overload: 150%
Warrenty: 12 Months

Product Description

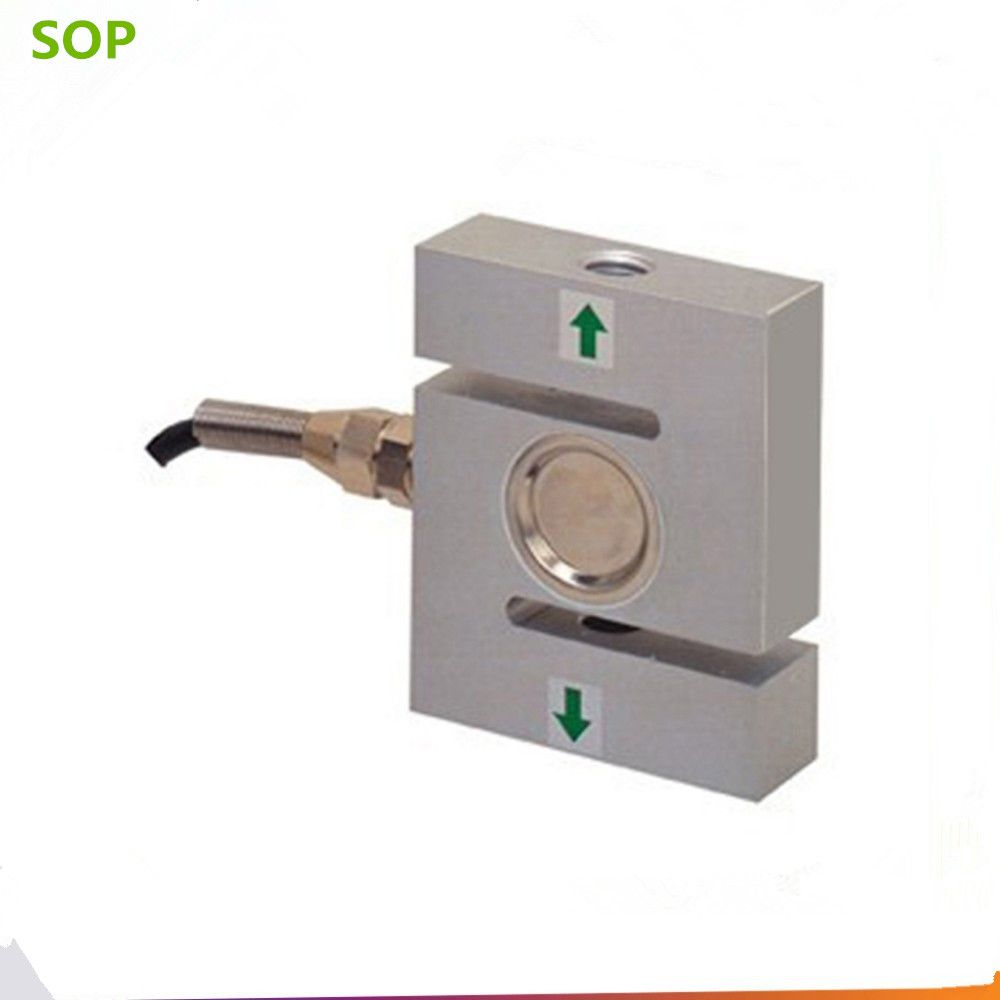

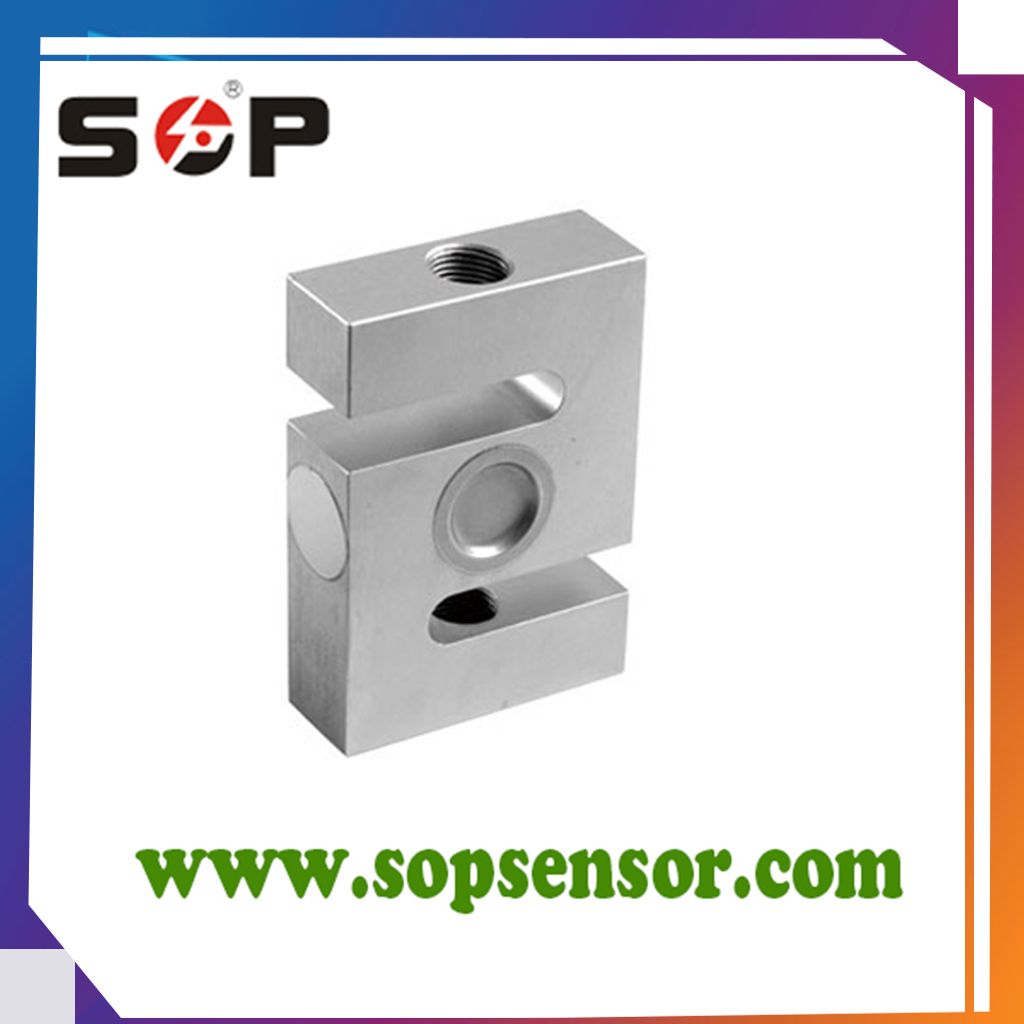

Load Cell for Injection molding machine equipment

We offer one of the largest variety of Linear Draw Wire Sensors in measuring ranges from 100mm up to 100000mm. A variety of configurations are available, providing alternative features. A number of outputs are available, including Poteniometer, Voltage, Current,and Quadrature Encoder.

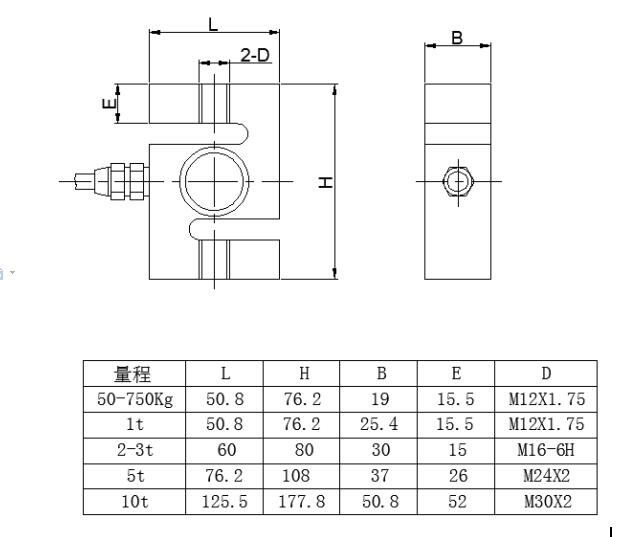

Data sheet
Scale range  0~0.1,0.15,0.2,0.3,0.5,0.6,0.8,1,1.5,2,2.5,3,5,10t
output sensibility1.5~2.0mV/V
Linearity  L±0.02; ±0.05%F.S
Hysteresis  H±0.02; ±0.05%F.S
Repeatability  R±0.02; ±0.05%F.S
Working temperature -35~+80ºC
Temperature make up ~+60ºC
 Temoerature effect Zero±0.05%F.S/10 ºC
output temperature effect ±0.05%F.S/10 ºC
excitation voltage 12VDC
insulation resistance 2000MΩ/100VDC
Input resistance :steel 380±5Ω
Aluminium 400±5Ω
Output resistance 350±2/350±5Ω
Zero output 0~±1%F.S
Safe overload rate120%F.S
Standard wire longth 3m

Product Features

   Exd II CT6 Gb
   Solid and firm, fully closed design
   Linear measurement, absolute value output
   Noncontact measurement, no abrasion
   Testing all materials compatible with 316L stainless steel


Applicable Scope

   petroleum industry, mining and Metallurgy
   engineering machinery, rubber machinery
   injection molding machine, new energy



Draw-wire displacement sensor measures linear movements using a highly flexible steel cable. The cable drum is attached to a sensor element which provides a proportional output signal.

2. Features

1. rugged construction, compact size, easy to install

2. economic cost, and cost savings for customers

3. cylinders, testing machines and other industry has achieved large-scale applicatIons, reliability


3. Displacement sensor Advantage

*Absolute encoder, multi-output.
* Compact structure and light weight.
* Straight line measurement, easy to install.
* Anti-dust, anti-vibration, durable.
* Groove for cable, each circle trip is the same, high repetition accuracy.

* Multi-strand soft stainless steel rope, corrosion-resistant type.

* Economic and practical.



Key Features





Note:

Wrong wiring may damage the sensor

Make sure wire in the power off state

Do not let go after wire is pulled out, otherwise the sensor could be easily damaged

Do not exceed the total length of the wire

Please ensure the cleanness of the equipment and wire line to prolong the service life

Avoid external force

Founded in 1994, SOP Mechanical & Electrical Co., Ltd is specilized in manufacturing high pressure and high efficiency air blowers, precision vacuum pumps and parts, the tools. Products are sold widely in the demestic and overseas market. It gets high reputation.

High pressure air blowers are widely applicable for the machinery, exhaust, of the powder and granules, the suction conveyance, the liquid agitation, bottle packing, combustion the air supply to the aquatics, cooling of the radiation equipments and the environments in the manufacture industries.

We possess over 30 engineers and technicians. Work on the area of 6000 square meters. It is divided into blower R & D, Production Dept. Electric Motor R & D, Production Dept, Vacuum Pump R & D, Production Dept. It has all the advanced and necessary lathes, driller, broacher, balancing machine, constant temperature over etc.

Welcome customers from all countries, we firmly provide you quality products and perfect after-sales services.
