Load Cell for The Load Testing with Water Filled Weight Bags

Load Cell for The Load Testing with Water Filled Weight Bags
Price: US $ 600/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal
Prod Model: 10t
Accessories: Shackle, Wireless Readout
Display: 18mm 6digits LCD
Power On Zero Range: 20% F.S.
Manual Zero Range: 4% F.S.
Tare Range: 20% F.S.
Stable Time: <10s
Overload Indication: 100% F.S.+9e
Maxmum Load: 125% F.S.
Ultimate Load: 400% F.S.
Battery Life: >40h
Out-Wire: Wireless
Feature: Wireless
Material: Aluminum or Alloy Steel

Product Description

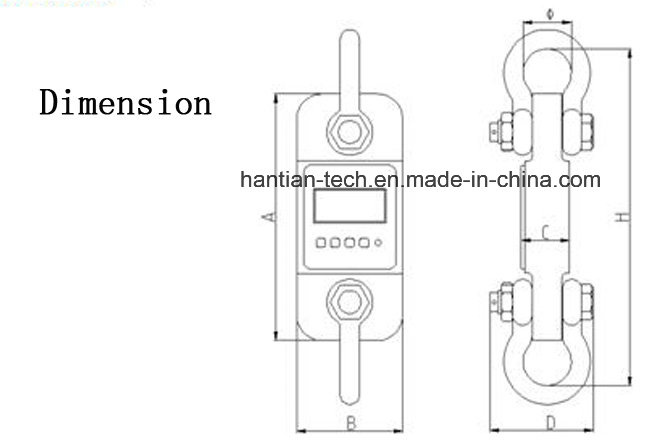

capacityweight(kg)A(mm)B(mm)C(mm)D(mm)Dia(mm)H(mm)Material
2t1.72451123719043335Aluminum
5t2.72851235721058405Aluminum
10t10.43201205723092535Alloy steel
50t39465150104305184930Alloy steel
100t815701901323662291230Alloy steel
200t2107252651834402801380Alloy steel

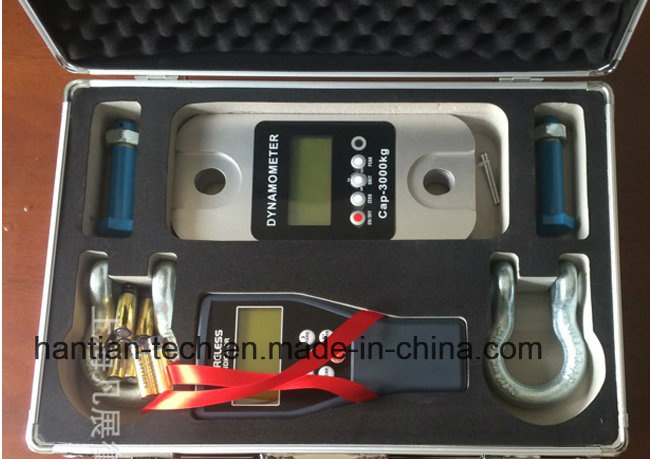

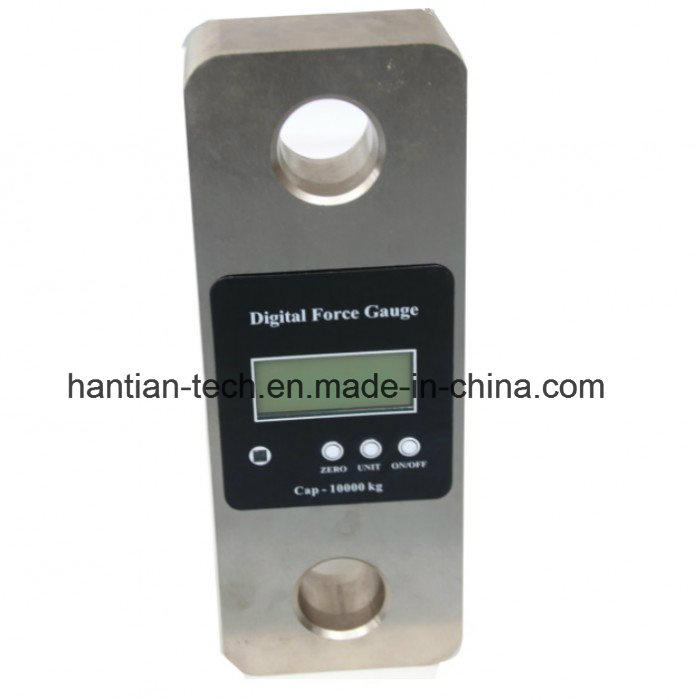

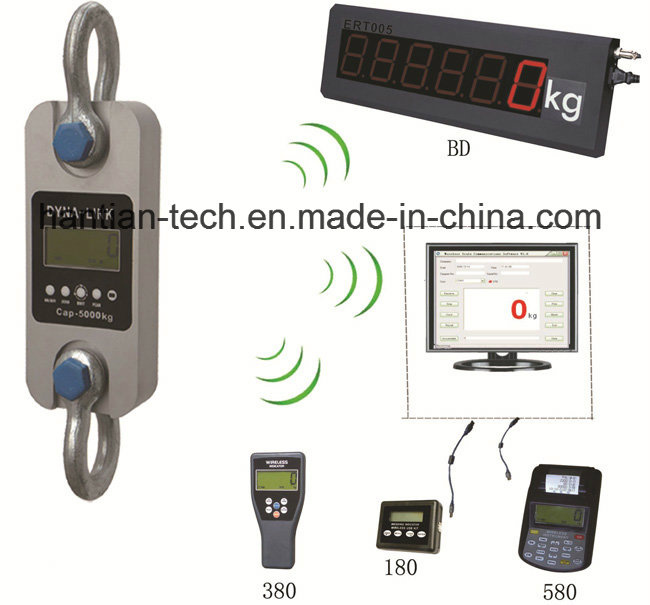

Load cell is necessary instrument for the load testing with water filled weight bags. Measuring capacity is available as following capacity. Wireless load cell used for the weight measuring of proof load testing using water weight bags. The load cell set consist of a load link with two shackles, wireless readout, and high quality carry case. Our load cell is an extremely well-built instrument for industry use, as a standard wireless too offer universal applications, whether used as conventional crane weight or measure force, it is microprocessor controlled for precision accuracy, calibration is easy with wireless indicator.
Measure capacity2t, 5t, 10t, 20t, 30t, 50t, 100t, 200tOverload indication100% F.S.+9e
Display18mm 6digits LCDMaxmum load125% F.S.
Power on zero range20% F.S.Ultimate load400% F.S.
Manual zero range4% F.S.Battery life>40h
Tare range20% F.S.Wireless distanceMin80m, or 200m
Stable time<10sWireless frequency2.4Ghz, or 433MHZ
Operation Temp. Operation Humidity<85% RH under 20ºC
