Load Cell Manufacturer Load Cell (L6W)

Name: Load Cell Manufacturer Load Cell (L6W)
Brand: all-electronics-online.com
SKU: 678355512
Availability: InStock
Rating: 4.5 (49 reviews)

Price:	US $ 10-20/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	L6W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ce:	OIML
Weighing:	30-300kg
Application:	Industrial Scales, Commercial Scale
Function:	Weighing Scale, Counting Scales
Structure:	Electronic Scale
Material:	Carbon Steel

Product Description

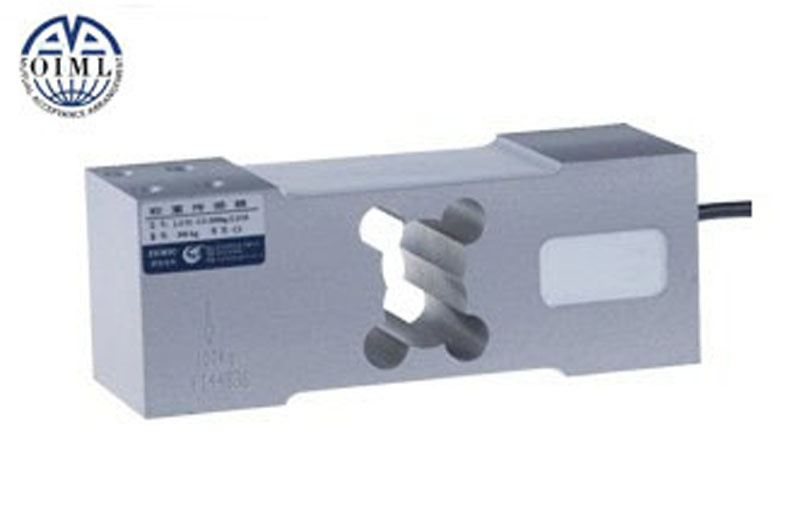

Name: Load cell
Modl: L6W
Capacity:250kg to 635kg .
High accuracy.
Max. platform size: 600x800mm.
With OIML approval.
L6W load cells are available in the capacities 250kg to 635kg.
Alumium construction with parallel beam.
Silicon adhesive sealed, surface anodized and anti-corrosion.
Intergral structure and easy installation.
Suitable for electronic balance and other electronic weighing devices.

Specifications

Capacity	(kg)	250/300/400/500/635
Accuracy		C3
Maximum number of verification intervals	n max	3000
Minimum load cell verification interval	v min	Emax/7000
Combined error	(%FS)	≤±0.020
Creep	(%FS/30min)	≤±0.0167
Temperature effect on sensitivity	(%FS/10ºC)	≤±0.0175
Temperature effect on zero	(%FS/10ºC)	≤±0.020
Output sensitivity	(mv/v)	2.0±0.2
Input resistance	(Ω)	406±6
Output resistance	(Ω)	350±3
Insulation resistance	(MΩ)	≥5000(50VDC)
Zero balance	(%FS)	2
Temperature,compensated	(ºC)	-10~+40
Temperature,operating	(ºC)	-35~+65
Excitation, Recommended	(V)	5~12(DC)
Excitation,Max	(V)	18(DC)
Safe overload	(%FS)	150
Ultimate overload	(%FS)	300
Corner correction		0.02% load value/100mm
