Load Cell

Name: Load Cell
Brand: all-electronics-online.com
SKU: 827208725
Availability: InStock
Rating: 4.3 (66 reviews)

Price:	US $ 6/Piece
Min Order:	20000/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

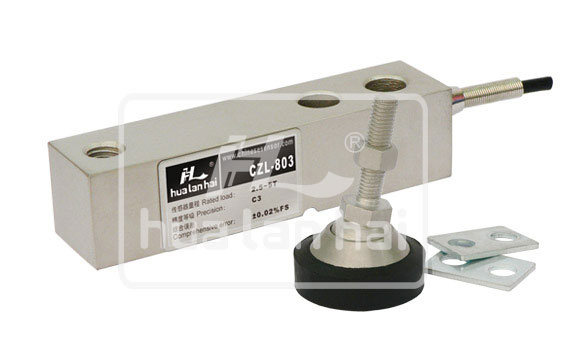

Prod Model:	CZL803M
Pattern:	Shear Beam
Material:	Alloy Steel

Product Description

Rated load:500kg~10000kg
Main features:Alloy steel & stainless structure; bellows hermetically sealed by laser, nickel plated, waterproof and anti-corrosion, suitable for multiform environments; suitable for electronic platform scales, hopper scales, and other electronic weighing devies.

Parameters:
Precison : C2 & C3		Temp. effect on span(%F.S/10ºC): ±0.017& ±0.011
Comprehensive error(%F.S) : ±0.03 & ±0.02		Temp. effect on zero(%F.S/10ºC): ±0.023 & ±0.015
Rated output(mv/v) : 3.0±0.003		Compensated temp. range(ºC ) : -10~+40
Creep(%F.S/30min) : ±0.024 & ±0.016		Use temp. range(ºC ) : -20~+55
Zero balance(%F.S) : ±1.0		Excitation voltage(V) : 9~12(DC)
Input resistance(Ω) : 350±5		Safe overload (%F.S) : 150
Output resistance(Ω) : 350±3		Ultimate overload (%F.S) : 200
Insulation resistance(MΩ) : ≥5000(100VDC)		Defend grade : IP66

Installation size (mm):

Rated load(kg)	L	L1	L2	L3	L4	d	B	M
500-2000 1.5--4klb	130	56.5	15.8	25.4	76.2	13.5	31.8	M16×2
2500-5000 5--15klb	171.5	77.2	19.1	38.1	95.3	20	38.1	M20×2.5
10000 20klb	222.3	101.6	25.4	50.8	120.7	26.2	50.8	M24×2

Wiring schematic diagram:
Red: Input ( + ) 111 White: Output ( - )
Black: Input ( - ) 111 Green: Output ( + )

Notes:It used 4-core shielded cable(φ5×10000mm)

Guangdong South China Sea Electronic Measuring Technology Co., Ltd. (SCS)is located at Dongguan City, Guangdong Province, Where is the manufacture centre of China. Established in 1992, it specializes in developing and manufacturing advanced load cells, force sensor, Torque sensor, axle weigher, wheel weigher, pressure transducer based on strain-gages. We also manufacture custom designed load cells and weighing system whatever our customers can dream up. Some of our products have "OIML" and European approved "CE" mark. Hope we will establish a long term business-ship with you.
