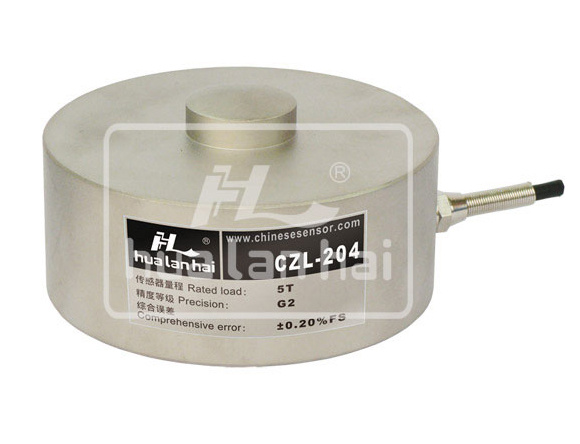

Load Cell

Name: Load Cell
Brand: all-electronics-online.com
SKU: 827493295
Availability: InStock
Rating: 4.3 (127 reviews)

Price:	US $ 20/Piece
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CZL204
Material:	Alloy Steel

Product Description

Rated load:0.1t~0.5t / 1t~5t
Main features:Alloy steel & stainless structure; bellows hermetically sealed by laser, nickel plated, waterproof and anti-corrosion, suitable for multiform environments; suitable for electronic platform scales, hopper scales, and other electronic weighing devies.

Parameters:
Precison : G2		Temp. effect on span(%F.S/10ºC): ±0.05
Comprehensive error(%F.S) : ±0.2		Temp. effect on zero(%F.S/10ºC): ±0.05
Rated output(mv/v) : 2.0±0.04		Compensated temp. range(ºC ) : -10~+40
Creep(%F.S/30min) : ±0.02		Use temp. range(ºC ) : -35~+65
Zero balance(%F.S) : ±1.0		Excitation voltage(V) : 9~12(DC)
Input resistance(Ω) : 700±10		Safe overload (%F.S) : 120
Output resistance(Ω) : 700±5		Ultimate overload (%F.S) : 150
Insulation resistance(MΩ) : ≥5000(100VDC)		Defend grade : IP68

Installation size (mm):

(Rated load)t	D1	D4	D5	H1	M	SR
0.02--1	10	42	50	30	M5	30
2--5	22	70	90	48	M10	50
10--20	32	90	115	60	M12	80
30	42	125	155	90	M16	100

Wiring schematic diagram:
Red: Input ( + ) 111 White: Output ( - )
Black: Input ( - ) 111 Green: Output ( + )

Notes:It used 4-core shielded cable(φ5×3000mm)

Guangdong South China Sea Electronic Measuring Technology Co., Ltd. (SCS)is located at Dongguan City, Guangdong Province, Where is the manufacture centre of China. Established in 1992, it specializes in developing and manufacturing advanced load cells, force sensor, Torque sensor, axle weigher, wheel weigher, pressure transducer based on strain-gages. We also manufacture custom designed load cells and weighing system whatever our customers can dream up. Some of our products have "OIML" and European approved "CE" mark. Hope we will establish a long term business-ship with you.
