Load Cells, Single Point Type, Czl601

Name: Load Cells, Single Point Type, Czl601
Brand: all-electronics-online.com
SKU: 703847805
Availability: InStock
Rating: 5 (77 reviews)

Price:	US $ 2.5/Piece
Trade Terms:	FOB
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CZL601
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output:	Analog Sensor
Usage:	Pressure Sensitive Sensor
Theory:	Strain Gage

Product Description

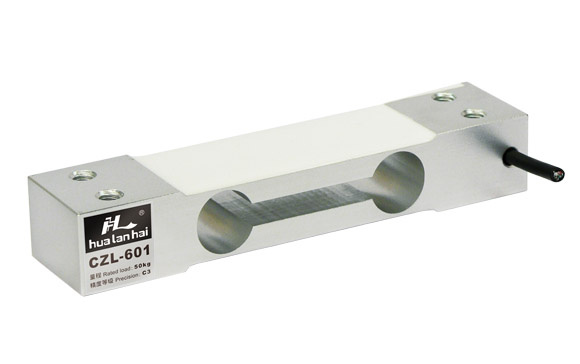

Load Cell, Single Point Type

Specifications:
1. Rated Load (Kg): 3-120
2. Rated Output (mV/V): 2.0
3. Zero Balance (%F. S): 0.1
4. Input Resistance (Ω): 400

5. Output Resistance (Ω): 350
6. Excitation Voltage (VDC): 9-12

7. Nonlinearity (%F. S): 0.02

8. Hysteresis (%F. S): 0.02

9. Repeatability (%F. S): 0.02

10. Creep (30min) (%F. S): 0.02

11. Operating Temperature(deg C): -20 To +65

12. Temperature Effect on Zero (%F. S/10): 0.03

13. Temperature Effect on Span (%F. S/10): 0.02

14. Insulation Resistance ( MΩ): 5000 (50VDC)

15. Safe Overload (%F. S): 120

16. Material: Aluminium Alloy

17. Protection Grade: IP65

(Outline size: 150(L)x40(W)x40(H)mm; Recommended platform size: 400x400mm)

Guangdong South China Sea Electronic Measuring Technology Co., Ltd. (SCS)is located at Dongguan City, Guangdong Province, Where is the manufacture centre of China. Established in 1992, it specializes in developing and manufacturing advanced load cells, force sensor, Torque sensor, axle weigher, wheel weigher, pressure transducer based on strain-gages. We also manufacture custom designed load cells and weighing system whatever our customers can dream up. Some of our products have "OIML" and European approved "CE" mark. Hope we will establish a long term business-ship with you.
