| Prod Model: |
gps car alarm tk103 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty Time: |
12 Months |
| Shipment: |
by Express or by Air |
| Delivery Time: |
2-3 Business Days |
| Certificate: |
CE FCC ISO |
| Machine Type: |
Tk103 GPS Tracker |
| Network: |
GSM/GPRS |
| Feature: |
Dual SIM Card with Fuel Shock Sensor |
| Tracking System: |
SMS, Mobile APP, Web Platfrom Tracking |
| OEM: |
Yes |
| Function: |
Acc, Door, Shock, Move, Speed, Geofence, Sos Alarm |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Operating Principle: |
GPS GPRS GSM Tracking |
| Port Number: |
20 |
| Model: |
103ab+ |
| Screen Size: |
No Screen |
| Brand: |
Coban |
| Certification: |
ISO9001 |
Product Description

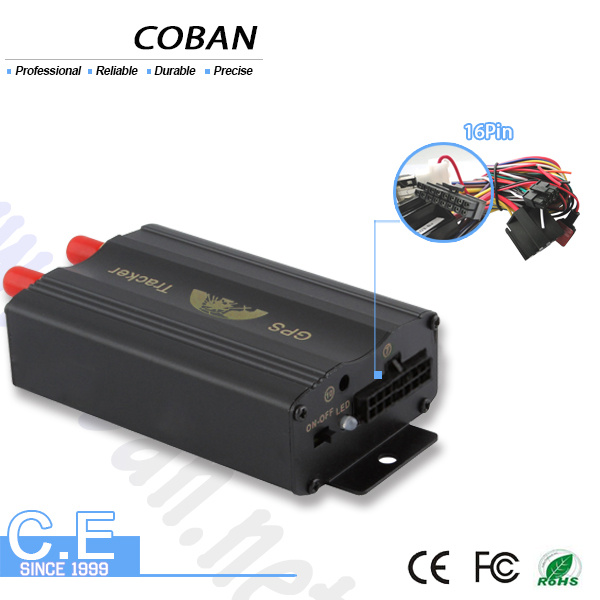

Model: GPS tracker TK-103A,TK103B
It is based on GSM/GPRS(850/900/1800/1900MHZ) and GPS satillite global position system .
1. Summary
This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
2. Features
Support both GPS & LBS (Location based service).
Support GPRS on-line and GPRS re-connected automatically if GPRS drops
Support SMS / GPRS dual-mode switching
Support configuration by remote terminal.
Support for point-to-point, point to group, group-to-group monitoring.
Set multiple functions of anti-theft, positioning, monitoring surveillance, emergency alarms and management in its entirety.
Vehicle fleet/logistics/Vehicle rental GPS tracker support GSM/GPRS network on APP/web platform tracking
New functions:
dual Sim Card,dual fuel sensor,central lock system
Gps tracker gps tracking device car gps tracker GPS vehicle tracker Wholesale vehicle gps tracking device support Built-in GPS/GSM antenna GPS103 gps tracking device
3. Main Function Description
1. Show location directly on mobile phone with HTTP Google map link
2. Get physical location in real street/address name
3. Remote Engine-stop and Resume.
4. Track by Distance Interval &time
5. USB configuration (option)
6. SD card for data logging (option)
7. ACC working alarm
8. Voice surveillance
9. Multi-Geo fence
10. Less GPRS traffic
11 .automatic update positions of vehicle turns
12. Arm alarm: Door Alarm, ACC Alarm, shock sensor alarm
13. Movement alert.
14. over speed alarm
15. Power supply disconnection alarm.
16. Low battery alarm function
17. Check the vehicle status
18. Easy switch for track or monitor and switch for SMS tracking and GPRS tracking
5.How GPS103 works ?
1. Simply insert a GSM SIM card into the GPS unit
2..Whenever you call the unit it will respond with the coordinates of its location via a SMS message
3. You can then use these coordinates on any mapping software (Google Map: http://earth.google.com)
4. The map will show where exactly the unit is located
Applying directions:
car / vehicles / truck / fleet / asset management
Technology parameter:
*Network: GSM/GPRS
*Band: 850/900/1800/1900Mhz
*GPS sensitivity: -159dBm
*GPS accuracy: 5m
*Time To First Fix:Cold status 45s, Hot status 1s
Gps tracker gps tracking device car gps tracker GPS vehicle tracker Wholesale vehicle gps tracking device support Built-in GPS/GSM antenna GPS102 gps tracking device
How to tracking ?
The GPS devices support phone tracking and 16 languages website tracking. (English,Spanish,Portuguese,Arabic,Thai language,Italian,German,Chinese,French...)
Five types Tracking way:
A>: SMS + Map software;
B>: PDA Cell Phone;
C>: Real time tracking, and track via your computer;
D>: simple & useful real time tracking via our website www.gpstrackerxy.com
E >: IOS and Android APP
Web based online tracking system www.baanool.net user id: demo, password:8888
Specification:
| Content | Specification |
| DIM. | 87*54*26mm |
| Weight | 130g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s |
| Warm status 35s |
| Hot status 1s |
| Voltage of car power system | 12 V -24V |
| Backup battery | Chargeable 3.7V 500mAh Polymer Li-Battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |
