Product Description

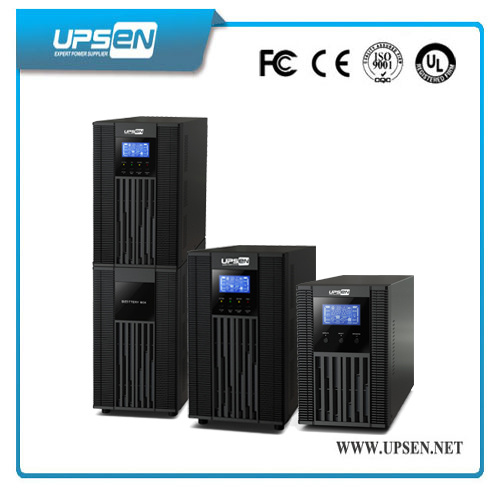

Long Backup time online UPS power supply for CCTV
True double-conversion on line UPS 6K-20Kva (1ph in/1ph out) (3ph in/1ph out)
Key Features
1:Advanced Current Control
2:Maintenance bypass available
3:True double-conversion on line UPS
4:System efficiency high up to 90%
5:50Hz/60Hz frequency converter mode
6:Emergency power off function (EPO)
7:Active input power factor correction 0.99
8:Adjustable battery number from 16 pcs to 20 pcs
9:3-stage extendable charging design for optimized battery performance
10:Excellent Protection against over voltage, over load, over current, over charge and so on.
11:Large blue ground LCD digital display shows Detailed Real-Time UPS Status and parameters
12:With external battery,it is convenient for user to expand use time and backup power time
Applications
Home, Office, Computer, PC, Data Room, Communication, Server,ATM, Bank System, School, CCTV, Security System, Alarm System etc.
Technical Specification
| GREEN STAR 6K/10K ONLINE UPS SPECIFICATION |
| MODEL | G6K (L) | G10K (L) |
| PHASE | 1 phase in / 1 phase out |
| CAPACITY | 6000 VA / 4800 W | 10000 VA / 8000 W |
| INPUT |
| Nominal Voltage | 208/220/230/240VAC |
| Voltage Range | Low Line Loss | 110 VAC ± 3% at 50% Load
176 VAC ± 3% at 100% Load |
| Low Line Comeback | 120 VAC ± 3% at 50% Load
186 VAC ± 3% at 100% Load |
| High Line Loss | 300 VAC ± 3% |
| High Line Comeback | 290 VAC ± 3% |
| Frequency Range | | 46 Hz ~ 54 Hz or 56 Hz ~ 64 Hz |
| Power Factor | >= 0.99 @ 100% load |
| OUTPUT |
| Nominal Voltage | 208/220/230/240VAC |
| AC Voltage Regulation | ± 1% |
| Frequency Range (Synchronized Range) | 46 Hz ~ 54 Hz or 56 Hz ~ 64 Hz |
| Frequency Range (Batt. Mode) | 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz |
| Current Crest Ratio | 3:1 (max.) |
| Harmonic Distortion | <= 3 % THD (Linear Load)
<= 6 % THD (Non-linear Load) |
| Transfer Time |
Bypass to Inverter
(Line mode) |
Zero |
Inverter to Bypass
(Line mode) |
Zero |
| Waveform (Batt. Mode) | Pure Sinewave |
| EFFICIENCY |
| Line Mode | 89% | 90% |
| Battery Mode | 88% | 89% |
| BATTERY |
| Standard Model | Battery Type | 12 V / 7 AH | 12 V / 9 AH |
| Numbers | 16 | 16 |
| Typical Recharge Time | 9 hours recover to 90% capacity |
| Charging Current |
Default:1.0 A ± 10%,
Max.:2.0A ± 10% |
Default:1.0 A ± 10%,
Max.:2.0A ± 10% |
Float Charging Voltage | 218.4 VDC ± 1% |
| Long-run Model | Battery Type | Depending on applications |
| Numbers | 16-20** (adjustable) |
| Charging Current | Default:4.0 A ± 10%, Max.:6.0A ± 10% |
Default:4.0 A ± 10%,
Max.:6.0A ± 10% |
Float Charging Voltage | 273 VDC ± 1% (based on 20 pcs batteries) |
| INDICATORS |
| LCD Panel |
UPS status, Load level, Battery level, Input/Output voltage,
Discharge timer, and Fault conditions |
ALARM |
| Battery Mode | Sounding every 4 seconds |
| Overload | Sounding twice every second |
| Fault | Continuously sounding |
| PHYSICAL |
| Standard Model |
Dimension,
D X W X H (mm) |
369 x 190 x 688 | 442 x 190 x 688 |
| Net Weight (kgs) | 60 | 75 |
| Long-run Model |
Dimension,
D X W X H (mm) |
369 x 190 x 318 | 442 x 190 x 318 |
| Net Weight (kgs) | 21 | 23 |
| ENVIRONMENT |
| Operation Humidity | 0-95 % RH @ 0- 40°C (non-condensing) |
| Noise Level | Less than 55dBA @ 1 Meter |
Less than 58dBA
@ 1 Meter |
| MANAGEMENT |
| Smart RS-232/USB |
Supports Windows® 2000/2003/XP/Vista/2008,
Windows® 7/8, Linux, Unix, and MAC |
| Optional SNMP | Power management from SNMP manager and web browser |
