| Prod Model: |
Green Star Series 1K - 20Kva |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
1000W-3000W |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Over Voltage, Over Current, Short Circuit |
| Brand: |
Upsen or OEM |
Product Description

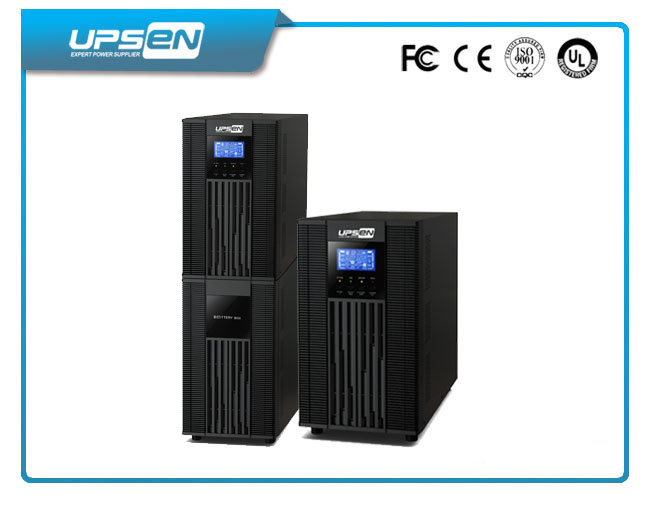

Long Backup UPS Power Supply 1-20Kva with LED/LCD Display1: Online UPS with digital LCD Display and LED Display for option
2: UPS with Pure Sine Wave and N+X Parallel Redundancy
3: Bypass repair switch for UPS Operation
4: UPS with connection for external battery bank, to supply long backup time
5: UPS Widely used to computer equipments, telecom munication systems and Industrial automatic control equipments
UPS Product DescriptionIntroduction: Queen Star Series Online UPS 6K-20Kva, is of fully of advanced DSP Online HF UPS.
It has high adaptability, performance, compact design and less batteries to reduce your space and installation cost.
UPS Perfect ApplicationNetwork, data centre, servers and workstations, control system, communication system, Telecom system, power station, security system, hospital, school, home and office etc.
UPS Main Features? True double-conversion
? Microprocessor control optimizes reliability
? Input power factor correction
? Output power factor 0.8
? Wide input voltage (110 V - 300 V)
? Converter mode available
? ECO mode for energy saving
? Generator compatible
? Charger capacity expansion to 6A for long-run models
? Smart SNMP works well with either USB or RS-232 together
? Comprehensive display allows easy monitoring and access of UPS status
Technical Specification| GREEN STAR ONLINE UPS SELECTION GUIDE |
| MODEL | G1K (L) | G2K (L) | G3K (L) |
| PHASE | Single phase with ground |
| CAPACITY | 1000 VA / 800 W | 2000 VA / 1600 W | 3000 VA / 2400 W |
| INPUT |
| Nominal Voltage | 100/110/115/120/127VAC or 200/208/220/230/240VAC |
| Input Voltage Range | 55-145 VAC or 110-300 VAC |
| Frequency Range | | 40Hz ~ 70 Hz |
| Power Factor | >= 0.99 @ Nominal Voltage (100% load) |
| OUTPUT |
| Output Voltage | 100/110/115/120/127VAC or 200/208/220/230/240VAC |
| Voltage Regulation | ± 1% |
| Frequency Range (Synchronized Range) | 47~ 53 Hz or 57 ~ 63 Hz |
| Frequency Range (Batt. Mode) | 50 Hz or 60Hz ± 0.1 Hz |
| Current Crest Ratio | 3:1 |
| Harmonic Distortion | <= 3 % THD (Linear Load); <= 6 % THD (Non-linear Load) |
| Transfer Time | AC to DC | Zero |
| Inverter to Bypass | 4 ms (Typical) |
| Waveform (Batt. Mode) | Pure Sinewave |
| EFFICIENCY |
| To AC Mode | 88% | 89% | 90% |
| To Battery Mode | 83% | 87% | 88% |
| BATTERY |
| Standard Model | Battery Type | 12 V / 9 AH | 12 V / 7AH | 12 V / 7 AH |
| Numbers | 2 | 6 | 6 |
| Typical Recharge Time | 4 hours recover to 90% capacity |
| Charging Current (max.) | 1.0 A |
| Charging Voltage | 27.4VDC ± 1% | 82.1 VDC ±1% | 82.1 VDC ±1% |
| Long-run Model* | Battery Type | Depending on the capacity of external batteries |
| Numbers | 3 | 6 | 8 |
| Charging Current (max.) | 1.0A/2.0A/4.0A/6.0 A |
| Charging Voltage | 41.0VDC ± 1% | 82.1 VDC ±1% | 109.4VDC ±1% |
| INDICATORS |
| LCD |
Load level, Battery level, AC mode,
Battery mode, Bypass mode, and Fault indicators |
ALARM |
| Battery Mode | Sounding every 4 seconds |
| Low Battery | Sounding every second |
| Overload | Sounding twice every second |
| Fault | Continously sounding |
| PHYSICAL |
| Standard Model | Dimension, D x W x H (mm) | 397 X 145 X 220 | 419X190X318 |
| Net Weight (kgs) | 13 | 26 | 28 |
| Long-run Model* | Dimension, D x W x H (mm) | 282 x 145 x 220 | 397 X 145 X 220 |
| Net Weight (kgs) | 4.6 | 6.8 | 7.4 |
| ENVIRONMENT |
| Humidity | 20-90 % RH @ 0- 40°C (non-condensing) |
| Noise Level | Less than 50dBA @ 1 Meter |
| MANAGEMENT |
| Smart RS-232/USB | Supports Windows 2000/2003/XP/Vista/2008/7/8, Linux, Unix, and MAC |
| Optional SNMP | Power management from SNMP manager and web browser |
* Long-run model is only available in 200/208/220/230/240VAC systems.
