| Prod Model: |
TK104 GPS Tracker |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: |
300g |
| Size: |
94mm*60mm*38mm |
| Main Features: |
GPS Tracker, GSM/GPRS Tracking, GSM Alarms |
| Sos Button: |
Yes |
| Antenna: |
Both Internal / External Antennas |
| Tracking Map: |
Real-Time Google Maps |
| Battery: |
Built-in 6000mAh Battery |
| OEM: |
Yes |
| Tracking System: |
SMS, Phone APP, Web Platform |
| Feature: |
Waterproof, Magnetic, Long Battery Life |
| Type: |
GPS Tracker |
| Use: |
Automotive&Hand Held |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Operating Principle: |
GPS, GSM, GPRS Tracking System |
| Port Number: |
20 |
| Model: |
Tk104 GPS Tracker |
| Screen Size: |
No |
| Brand: |
Coban |
| Certification: |
CE FCC ISO |
Product Description

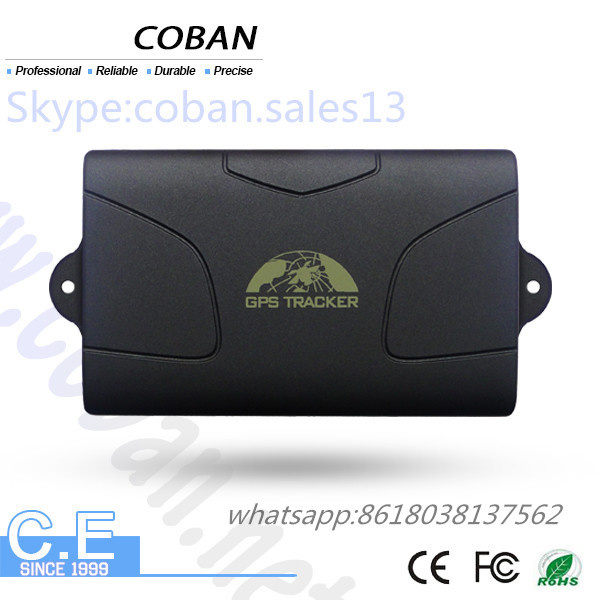

Model: GPS tracker TK-104
It is based on GSM/GPRS(850/900/1800/1900MHZ) and GPS satillite global position system .
1. Summary
This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
2. Features
* Waterproof shell
* Built-in large capacity 6000MA battery, standby about 4 months in sleep mode and 12 months in deep sleep mode.
* Powerful magnets to absorb to vehicle firmly.
* Real-time tracking, retrieve of lost vehicles, cargo.
* Movement alarm, Geo-fence alarm, shock sensor alarm, remote monitoring.
* Support map viewing on mobile phone screen, get absolute address by SMS, GPRS real time tracking on web based server.
* Built-in high sensitivity GPS and GSM antenna to make it can be used alone without installation, convenient and quick.
* Support for external GSM antenna, GPS antenna, and external power supply for the tracker to be installed on the device which can provide power for long-term using.
-get street name
-SMS/PDA/GPRS live tracking
-Remote monitor
3. Main Function Description
For vehicle (12V-24V) for Containers, Cargo,heavy equipment/asset etc;
1. Web based online tracking server www.gpstrackerxy.com
2.Location based service (LBS), SD card memory
3.Built-in flash 1MB (store about 16,000 positions); expanded volume depends on the SD card inserted.
4.Real time tracking by time&distance, voice listen in function
5.Remote shutt off vehicle engine & resume by SMS/GPRS
6.Geo-fence, movement, overspeed, low battery alarm
7.Shock sensor alarm, SOS panic button,USB configure
8.SMS tracking on cellphone with google maps link
9.Get aboslute address including street name by sms
10.Free PC based software for live tracking
11.Internal Accident alarm
12.Sleep mode by time&shock sensor to save battery

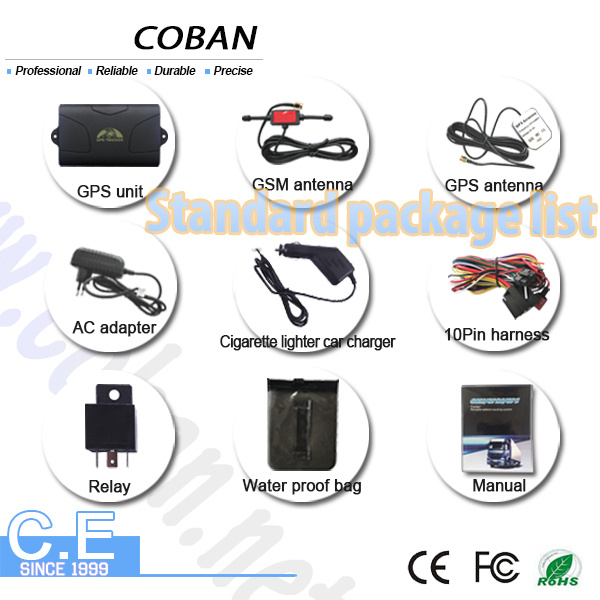

GPS104 Standard Package Content:
1 X GPS tracker
1 X GPS antenna
1 X GSM antenna
1 X AC Adapter
1 X Lighter adapter
1 X Harness
1 X CD
1 X Manual
1 X waterproof bag.
Specification : | GPS sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status | 45s |
| Hot status | 1s |
| EXT. power | DC 12 V -24V |
| Operating Current | Sleep Current | 1.8mA |
| Deep sleep | 0.6mA |
| GSM operating Current | 68mA±3mA |
| GPRS Current(data transfer) | 82mA±10mA |
| Battery | 3.7V 6000mA/h Polymer battery |
| Charge current | 1A±0.2A |
| Charge time | 7h |
| Standby time | Sleep | 4 months |
| Deep sleep | 12 months |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +70°C |
| Humidity | 5%--95% non-condensing |
How to tracking ?
The GPS devices support phone tracking and 16 languages website tracking. (English,Spanish,Portuguese,Arabic,Thai language,Italian,German,Chinese,French...)
Five types Tracking way:
A>: SMS + Map software;
B>: PDA Cell Phone;
C>: Real time tracking, and track via your computer;
D>: simple & useful real time tracking via our website www.baanool.net
E >: IOS and Android APP
Web based online tracking system www.gpstrackerxy.com user id: demo, password:8888

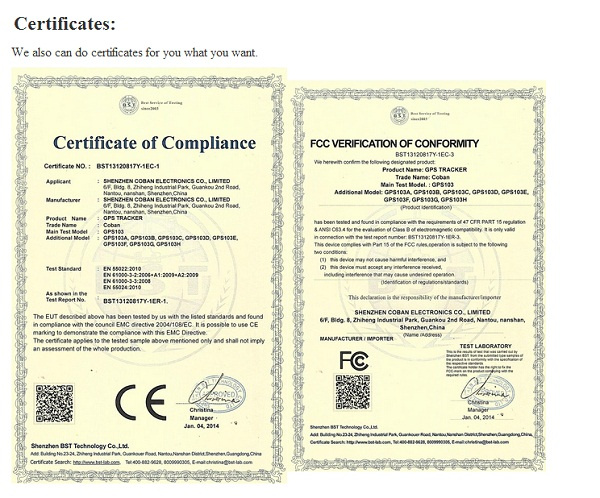

Certificate :
Shippment :
DHL/Fedex/UPS/TNT/ARA/EMS/By air/By sea and so on are optional, we can send goods by shipping ways you want.
1. Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
2. For order over 500pcs or customized order, lead time will be 3-15 days after the receipt of payment. Please contact our sales to make sure the current inventory.
Warranty
1. One year warranty is provided for all models.
2. All products have been strictly Quality Checked in house before packing.
3. All products have been well packed before shipping.
OEM&ODM Service
1.Customize logo and brand print on the device or box
2.Offer firmware modification service
3.Customize design in bulk order
