| Prod Model: |
GSM GPRS Car GPS Tracker Coban Tk104 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Global Compatibility: |
850/900/1800/1900 MHz |
| High Sensitivity GPS And GSM Antennas: |
Can Be Used Without Any Additional Antenna |
| Weight: |
300g |
| Map: |
Realtime Google Maps |
| Battery: |
6000mAh Battery, 60 Days Long Standby |
| Network: |
GSM/GPRS |
| Item Size: |
94mm*60mm*38mm |
| Long Working Battery: |
6000mha Battery |
| Alarms Under Arm: |
Acc Working, Shock Sensor Alarm |
| Warranty Time: |
One Year |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Port Number: |
20 |
| Model: |
Vehicle GPS Tracker GPS104 |
| Screen Size: |
No |
| Chip: |
No |
| Brand: |
Baanool GPS Tracker |
| Certification: |
ISO9001 |
Product Description

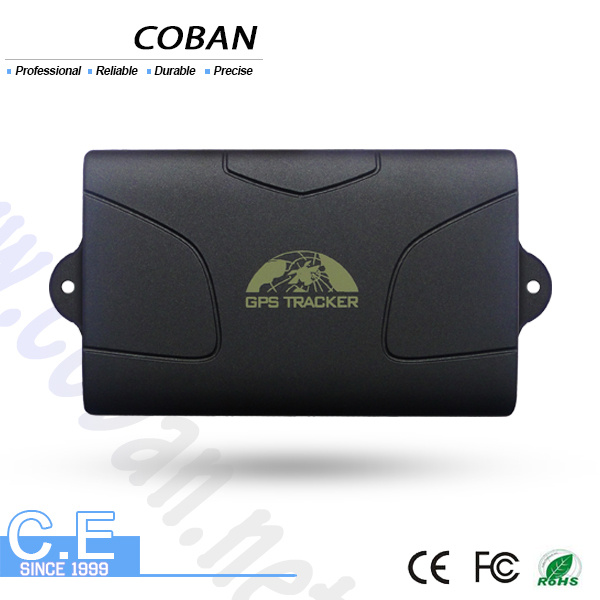

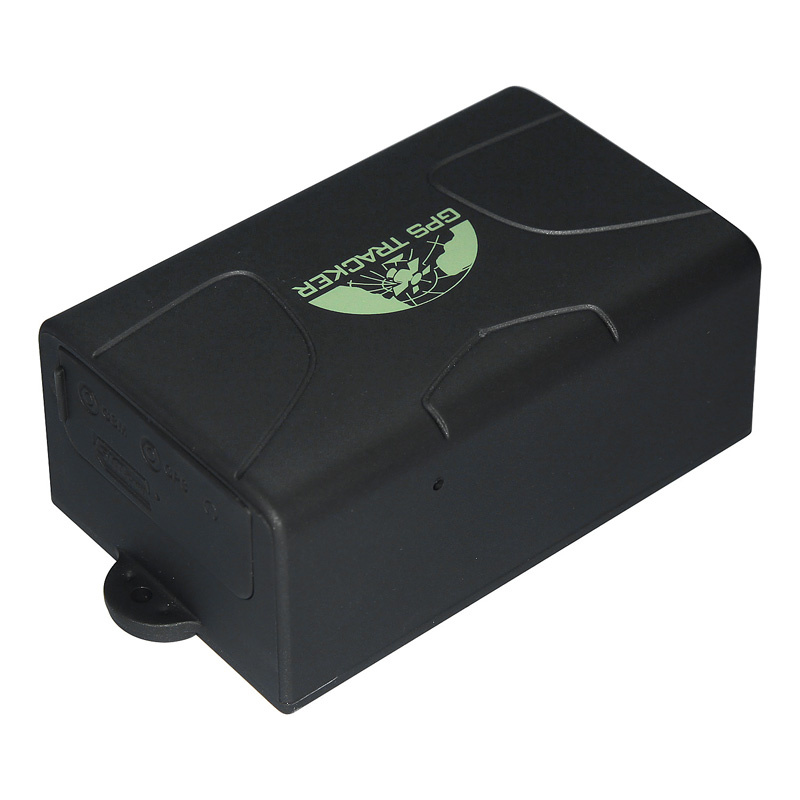

Long Battery Life GSM GPRS Car GPS Tracker Coban Tk104 Simply insert a GSM sim card into the GPS unit. Whenever you call the unit it will respond with the coordinates of itslocation thru a SMS message. You can then use these coordinates on any mapping software (for example google earth)which will show where exactly the unit is located.
With some little setup, you can also have the device to send the data directly to a computer thru GPRS and display itslocation on a map with our bundled software for real-time location tracking.
Item specificsWaterproof shell
Real-time tracking, retrieve of lost vehicles, cargo.
Movement alarm, Geo-fence alarm, shock sensor alarm, remote monitoring.
Support map viewing on mobile phone screen, get absolute address by SMS, GPRS real time tracking on web based server.
Support for external GSM antenna, GPS antenna, and external power supply for the tracker to be installed on the device which can provide power for long-term using.
Geo-fence: Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to the authorized numbers when it breaches the district.
Remote Engine-stop and Resume.Basic FunctionsSupport 5 authorization phone number, avoid any other people track it
Successive locating automatically
Get absolute address including street name
Check the vehicle status by SMS
Set up the correct time zone of your country
Voice surevillance
Cut off and resume Oil and power system
Geo-Fence
Movement Alarm
Overspeed Alarm
Shock sensor Alarm
Low Power Alarm
Sleep mode for saving power
GPRS real time tracking
Alarm FunctionGeo-fence, Movement Alarm, Over Speed Alarm, Shock Sensor Alarm, SOS(Option),
Low power alarm, Modes Switch between "SMS" and "GPRS"
GPRS Tracking & monitoring platform
Normal Package(Tracker with accessories)GPS Unit(Magnet included)
AC adapter
Harness
Relay for stopping engine
External GSM antenna
External GPS antenna
Waterproof bag
Cigarette lighter car charger
manual
GSM GPRS GPS Tracker tk104 Specifications
Content |
specifications |
DIM. |
94mm*60mm*38mm |
Weight |
300g |
Network |
GSM/GPRS |
Band |
850/900/1800/1900Mhz |
|
|
GPS sensitivity |
-159dBm |
GPS Accuracy |
5m |
GPS Start time |
Cold status |
45s |
Hot status |
1s |
EXT. power |
DC 12 V -24V |
Operating Current |
Sleep Current |
2.5mA |
GSM operating Current |
54mA ± 3mA |
GPRS Current(data transfer) |
60mA ± 5mA |
Battery |
3.7V 6000mA/h Polymer battery |
Charge current |
1A ± 0.2A |
Charge time |
7h |
Standby time |
Sleep mode |
2400h |
Storage Temp. |
-40°C to +85°C |
Operation Temp. |
-20°C to +65°C |
Humidity |
5%--95% non-condensing |

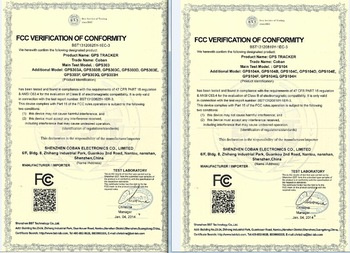

Coban TK104 GPS Tracker certification CE/FCC/RoHs
Tracking Solutions
-SMS tracking on cellphone with a googlemap link to view current location on map on cellphone screen.
-Get absolute address by SMS
-Android IOS app tracking
-Web server online tracking. Capable of monitor 10,000 objects
