| Prod Model: |
f21-6d |
| Product Name: |
24V Wireless Industrial Remote Control |
| Protection Level: |
IP65 24V Wireless Industrial Remote Control |
| Application: |
Industrial Machinery |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Voltage: |
3V |
| Battery Type: |
AA Battery |
| Material: |
Glass Fiber-Reinforced Nylon |
Product Description

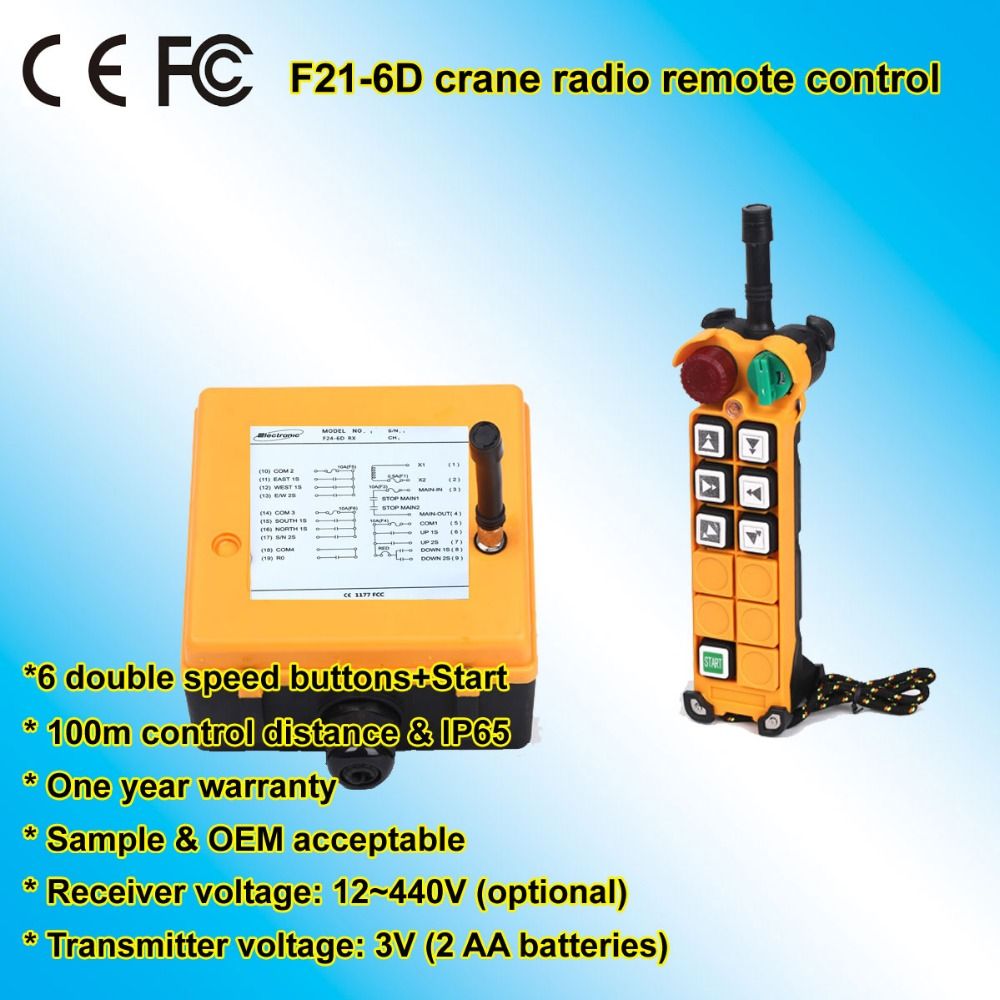

long distance control 24V wireless industrial remote control f21-6d with FCC ,CE ,ISO9001The industrial radio remote control operates exactly like the pendant but operates using a radio frequency instead of control cables attached to the crane ,the radio control system is comprised of two main components: the radio transmitter (handheld device) and the radio receiver( control box attached to crane or hoist) the radio control incorporates numerous safty features and allows the operator a greater range mobility than a pendant station| model | F21-6d |
| buttons | 6 double speed button+mushroom button +start button+rotary switch |
| material | glass fiber-reinforced nylon |
| temperature | -35~+80( regardless the battery temperature tolerance) |
| protection level | IP65 |
| security code | 4.3 billions |
| control distance | up to 100m( some models can reach 200m) |
| frequency range | VHF:310.0325-331.165MHZ UHF:425.5925-446.725MHZ |
| transmitting power | <10dBm |
| receive sensitivity | >-110dBm |
| transmiter power supply | DC3V( 2 pieces 1.5V AA size battery) |
| receiver power supply | AC380V/220V/110V/48V/36V/24V/12V or DC12V |

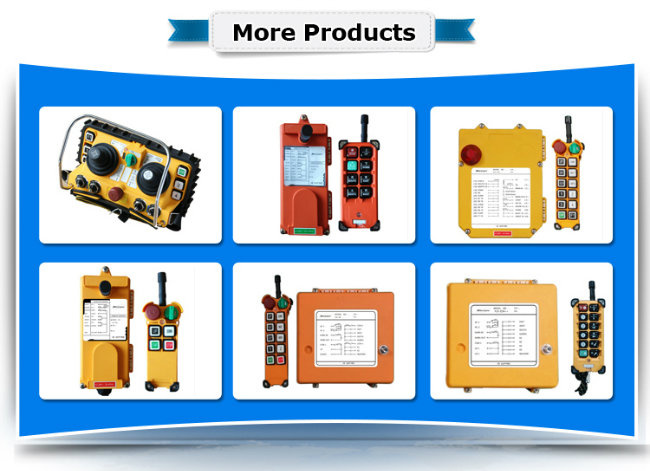

more related products
long distance control 24V wireless industrial remote control f21-6d with FCC ,CE ,ISO9001

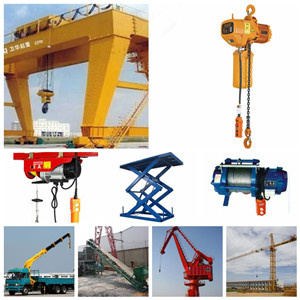

Application
long distance control 24V wireless industrial remote control f21-6d with FCC ,CE ,ISO9001
Radio remote controls are becoming more common in many industrial applications. These applications include material handling, cranes and hoists, agriculture, grain elevators, aggregates, conveyors, automation, assembly lines, railroad, mining, ship loading, recycling, waste management, military, entertainment, and rides.
Certificates
long distance control 24V wireless industrial remote control f21-6d with FCC ,CE ,ISO9001
We have obtained CE , FCC certificate for our industrial wireless radio remote control ,ISO-9001:2008
Company Information
long distance control 24V wireless industrial remote control f21-6d with FCC ,CE ,ISO9001Henan Yuding electronics co.,ltd was founded in 2010 years, mainly for industrial radio remote control system such as F21 serises , F24 serises ,C-E1Q, 60 etc ,production line is more than 5000sq.m ,more than 400 employee , we has build multiple internationally leading SMT production lines , BGA production lines and DIP production lines , we have obtainer ISO9001-2008 ,CE certificate and Anti-explosion certification in 2011 , on the other side ,our company accept OEM,ODM for different mainboard ,LED ,EPC,FPC etc .
Contact us
Henan Dirk Electronic Co. Ltd (former Henan Yuding Electronics Crop., Ltd) is an industrial radio remote controls manufacturer in China. Established in August, 2010, With more than 10 years experience on this industrial remote control system business area. Headquartered in Zhengzhou, Henan province. Dirk has so many experts in the industrial radio remote controller area to assure quality and productivity, Dirk are becoming one of the leading companies in this industry in China.
Our main products is: F21 Series radio remote controls, F23 series radio remote controls, F24-60 Dual Joystick radio remote control and explosion-proof remote controls. All these remote controls are easy to operate to keep workers safety and Efficient. All our products are CE & FCC & ISO Certificate.
Quality is company's life. From the raw material testing, manufacturing, aging test and assembly, Each process are operate according to ISO9001: 2008 & international quality control system to guarantee the products quality. Competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 countries. We also have built long-term business relationship with the foreign customers.
We here sincerely hope to establish partnership with you and your esteem company.
