Long Handle Knob Pushbutton Switch Electrical Switch

Name: Long Handle Knob Pushbutton Switch Electrical Switch
Brand: all-electronics-online.com
SKU: 758664665
Availability: InStock
Rating: 4.6 (114 reviews)

Price:	US $ 0.73-0.81/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CB2-BJ21
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Contact:	Copper&Silver Contact
Manufacturer:	Original Factory
Loaction:	Liushi Wenzhou
Company Credit Rate:	AAA
Type:	Normal Open
Usage:	Reset Button
Kind:	Flushpushbutton
Brand:	Chana or OEM
Certification:	RoHS

Product Description

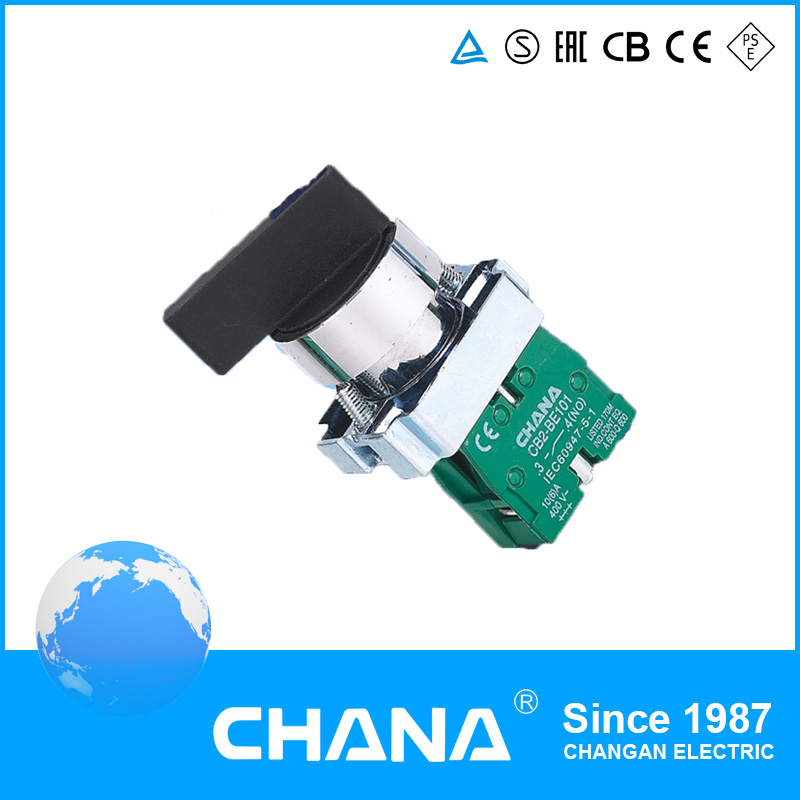

Long Handle Knob Pushbutton Switch

1. Application

CB series pushbutton switches are used in industrial for controlling circuits of AC50HZ or 60Hz, rated operation voltage 380V or below and DC operational Voltage 220V or below for controlling in magnetic starter, contactor, relay and other electrical circuits. The butons indicators can also be used in the place with indicated light or signal. They meet with the standards: IEC 60947-5-1

-Flush button spring return
-Fire retardant PBT material and Zinc alloy flame with copper&silver contact

2. Specification

Operation terperature: -5oC - +40oC
Operation humidity: 45% - 85%
Contact resistance: <=50mΩ
Degree of protection; IP40
Power-frequency withstand voltage: 2500V, 1 min
ELECTRIC durability: 50 x 104
Rated insulation voltage: Ui 660V
Conventional thermal current: Ith 10A
Rated operation voltage: Ue 380V, 220V, 110V, 48V, 24V
Rated operation current: AC-15 2.5A 4.5A 6A 8A -
DC-13 - 0.3A 0.6A 1.3A 2.5

Long handle knob	SPECIFICATION
CB2-BJ21	N/O
CB2-BJ25	N/O+N/C
CB2-BJ41	N/O
CB2-BJ45	N/O+N/C
CB2-BJ33	2NO
CB2-BJ53	2NO

3. Certificate

4. About Us

Established in 1987, CHANGAN is a large national enterprise, located in China Electric Appliance Capital- Liushi. Taking the industrial electric appliance as the leading sector, Integrating the R&D, information, trade, services, manufacture and sale of high and low voltage electrical apparatus, Instrument and Meter, Power Supply Equipment, Power Distribution Cabinet and Electric product for building and construction.

As core company, CHANGAN GROUP CO., LTD. is mainly engaged in MCB, RCCB, RCBO, MCCB, CONTACTOR, THERMAL RELAY, SPD, MPS, STARTER, STABLIZER, PUSH BUTTON SWITCH, INDICATOR, TERMINAL, CABLE ACCESSORIES etc. Company own over 2000 employees, 116000 square meter construction area, registered capital totalizing to 0.10518 billion RMB, it has established over 500 sales branches throughout the whole country.

Certificate: ISO9001,ISO14001,OHSAS18001,CCC,SEMKO,CE,CB,TUV,EAC,TSE.Products are sold to UK, France, Russia, Turkey, German, Brazil, Argentina, South Africa, Egypt, Iran and other 60 countries and areas.

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
