| Prod Model: |
MS4-16Z3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| The Theory: |
16A Micro Switch |
| Operating Force: |
1.5 N-3 N |
| Rated Current: |
16A/10A/6A |
| Rated Voltage: |
125VAC/250VAC |
Product Description

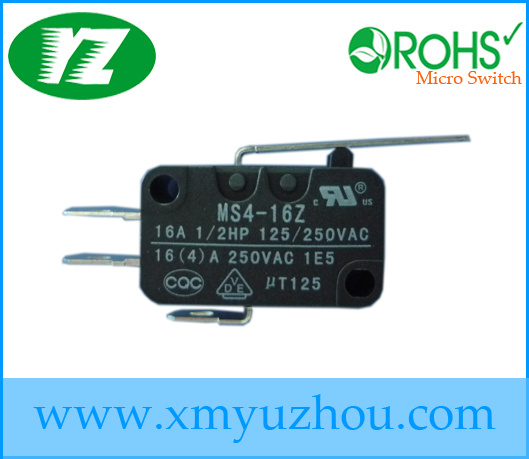

16A Micro Switch
Features of 10A Micro Switches:
-Small Size Switch
-Good quality
-Nice Appearance
-Several Kinds of Connect Terminals
-Equip with variety of Actuators/Levers
Specifications of 16A Microswitches:
1. Rated current and voltage:
16(4) 250 V AC/16A 125V AC 1/2HP 125/250VAC;
10(3)A 250V AC/10A 125VAC
6(2) A250VAC/1A 125VAC
1(1)A 250VAC/1A125VAC
2. Contact Resistance: 30mΩ Max;
3. Insulation Resistance: 100MΩ (500VDC);
4. Operating Force: 1.5 N--3 N
5. Life: Mechanical ≥ 5000000 cycles; Electrical≥ 50000 cycles;
Applications of Electronic Micro Switch:
Apply to microwave oven, air conditioner, electric cooker, dishwasher, cleaner, humidifier, water heater, electric radiator, electric drill, joystick, TV game, time recorder, solder gun, mixer, food processor, juice maker, alarm, mixer, shredder machine, etc.
Our Service:
Any inquiry/question will be reply in 24 hours during working days.
Sample order: Available, the customers should charge the sample fee and freight cost.
Delivery time: 2-4 weeks after order confirmation.
Terms of Payment: T/T, Paypal, Western Union, etc.
Terms of Shipping:
By Express: Such as FedEx/DHL/UPS/TNT/EMS, etc.
Air/Sea Freight: Goods will be delivered by air or sea according to customer's order.
Agent designated by client: Please tell us the contact detail of your shipping agent and we will arrange the delivery.
Contact person:
IVY LAN
Xiamen Universal Electronic Co., Ltd
No. 318, South Tongji Road, Jimei District, Xiamen City, Fujian, China
Tel: +86-592-5782 488
Fax: +86-592-5664 223
Mobile: +86-156 0600 3688
Website: Www. Xmyuzhou. COM
|
Item |
Value |
Perating Speed |
0.1mm~1m/s(Related with actuator forms) |
Operating Frequency |
Mechanical 60 cycles/min;Electrical 30 cycles/min |
Insulation Resistance |
100 MΩ (500VDC) |
Contact resistance |
<=30mΩ(Initial value) |
Test Voltage |
Between terminals of the same polarirty |
AC1000V,50/60Hz,1min |
Between current-carrying metal
And ground(case),and between
Each terminal and non-carrying
metal parts |
AC2000V,50/60Hz,1min |
Vibration resistance |
10-55Hz,1.5mm Double amplitude |
Shork Resistance |
Destruction : OF>0.5N:1000m/s ²(approx.100G)max
OF<=0.5N:500m/s ²(approx.50G)max
Malfunction: OF>0.5N:300m/s ²(approx.30G)max
OF<=0.5N:200m/s ²(approx.20G)max |
Life Expectancy |
Mechnical>=5000000 cycles
Electrical>=50000 cycles |
Degree of protection |
IEC IP40 |
Degree of protection against electric shock |
Class I |
PTI(Tracking Resistance) |
175 |
Ambient air temperature |
125°C 60%RH below(No ice and dew) |
Ambient air humidity |
85% Rhbelow(about +5~+35°C) |
Weight |
Approx.5.95g(No lever) |
