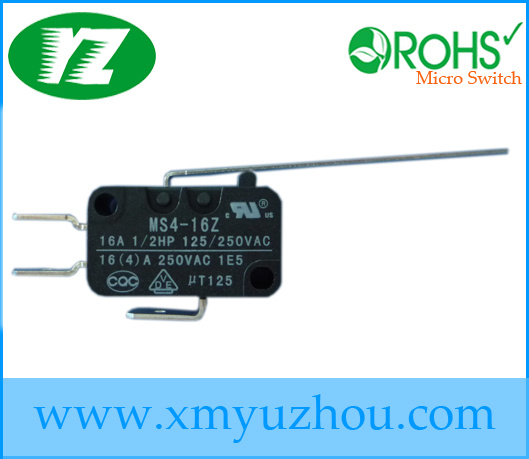

Long Lever Solder Terminal Spdt Micro Switch 16A

Name: Long Lever Solder Terminal Spdt Micro Switch 16A
Brand: all-electronics-online.com
SKU: 710615385
Availability: InStock
Rating: 4.7 (48 reviews)

Price:	US $ 0.38/Piece
Trade Terms:	FOB
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MS4-16Z2-A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
The Theory:	Spdt Micro Switch
Operating Force:	1.5 N--3 N
Current:	16A
Connect Forms:	Spdt
Pressing Type:	Long Arm
Protection:	Dust-Proof
Size:	Small-Sized
Breaking Form:	Single Type
Environment:	﹤250℃
Brand:	Yuzhou
Application:	Home Appliances

Product Description

SPDT Micro Switch

Features of 16A Micro Switch:

-Small Size Switch
-Good quality
-Nice Appearance
-Several Kinds of Connect Terminals
-Equip with variety of Actuators/Levers

Specifications of 16A Microswitches:

1. Rated current and voltage:
16(4) 250 V AC/16A 125V AC 1/2HP 125/250VAC;
10(3)A 250V AC/10A 125VAC
6(2) A250VAC/1A 125VAC
1(1)A 250VAC/1A125VAC
2. Contact Resistance: 30mΩ Max;
3. Insulation Resistance: 100MΩ (500VDC);
4. Operating Force: 1.5 N--3 N
5. Life: Mechanical ≥ 5000000 cycles; Electrical≥ 50000 cycles;

Applications of 125VAC Micro Switch:

Apply to microwave oven, air conditioner, electric cooker, dishwasher, cleaner, humidifier, water heater, electric radiator, electric drill, joystick, TV game, time recorder, solder gun, mixer, food processor, juice maker, alarm, mixer, shredder machine, etc.

Item		Value
Perating Speed		0.1mm~1m/s(Related with actuator forms)
Operating Frequency		Mechanical 60 cycles/min;Electrical 30 cycles/min
Insulation Resistance		100 MΩ (500VDC)
Contact resistance		<=30mΩ(Initial value)
Test Voltage	Between terminals of the same polarirty	AC1000V,50/60Hz,1min
	Between current-carrying metal And ground(case),and between Each terminal and non-carrying metal parts	AC2000V,50/60Hz,1min
Vibration resistance		10-55Hz,1.5mm Double amplitude
Shork Resistance		Destruction : OF>0.5N:1000m/s ²(approx.100G)max OF<=0.5N:500m/s ²(approx.50G)max Malfunction: OF>0.5N:300m/s ²(approx.30G)max OF<=0.5N:200m/s ²(approx.20G)max
Life Expectancy		Mechnical>=5000000 cycles Electrical>=50000 cycles
Degree of protection		IEC IP40
Degree of protection against electric shock		Class I
PTI(Tracking Resistance)		175
Ambient air temperature		125°C 60%RH below(No ice and dew)
Ambient air humidity		85% Rhbelow(about +5~+35°C)
Weight		Approx.5.95g(No lever)

Xiamen Universal Electronic Co., Ltd is a professional manufacturer of Rolling Door Motor, Tubular Motor, Micro Switch and semiconductor component separator, etc. After years of practical experience, efforts of all colleagues, the support of customers and suppliers, now we have Mechanical & Electrical Department, Electronic Components Department and Integrated Department of Market Operation. There are more than 40 series products, with over 500 kinds of specifications. Mechanical & Electrical products are widely used in shopping malls, hotels, warehouses, banks, factories and other buildings rolling door opening and closing; Electronic Components are mainly used in home appliances, industrial control, automotive electronics and other areas. We have done business with more than 40 countries all over the world and earned a good reputation.

Main products:

Rolling Door Motor, Roller Shutter Motor, Garage Door Motor, Rolling Shutter Motor, Automatic Door Opener, Tubular Motor, Micro Switch, Tip Over Switch, Tilt Switch, Safety Switch, Bridge Rectifier, etc.

Superior Service:

Being a professional manufacturer for many years, we always supply quality product at competitive prices with superior service. We keep the principle of "Quality First, Customers Supreme" and always try to meet customers' Requirements at any time. Any inquiries will be replied within 1 business day.

Quality Assurance:

We have QC department to make inspect every step of production, so we can make sure good quality products for customers.

Sample Order:

Sample order is available, normally, it takes about 7 days to make new samples.

Welcome to inquire from our company if you have any requirement. We are always positive and ready to offer excellent service.
