| Prod Model: |
DC260-12 |
| Color: |
Brown or Green or Customer's Require |
| Advantage: |
High Capacity and Long Life |
| Application: |
Golf/Utility Vehicles, Floor Machines, Marine Vess |
| Design Life: |
750 Cycles at 75% Dod |
| Separator: |
AGM(Absorbent Glass Mat) |
| Recommended Charging Current: |
0.15c20-0.35c20 |
| Warranty: |
2 Years From B/L Date |
| Type: |
Lead-Acid Batteries |
| Usage: |
Power System |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description
Koyama Battery
Specifications
Deep cycle battery
Supper deep cycle design
-Superior Deep Cycle Design
-High Power Density

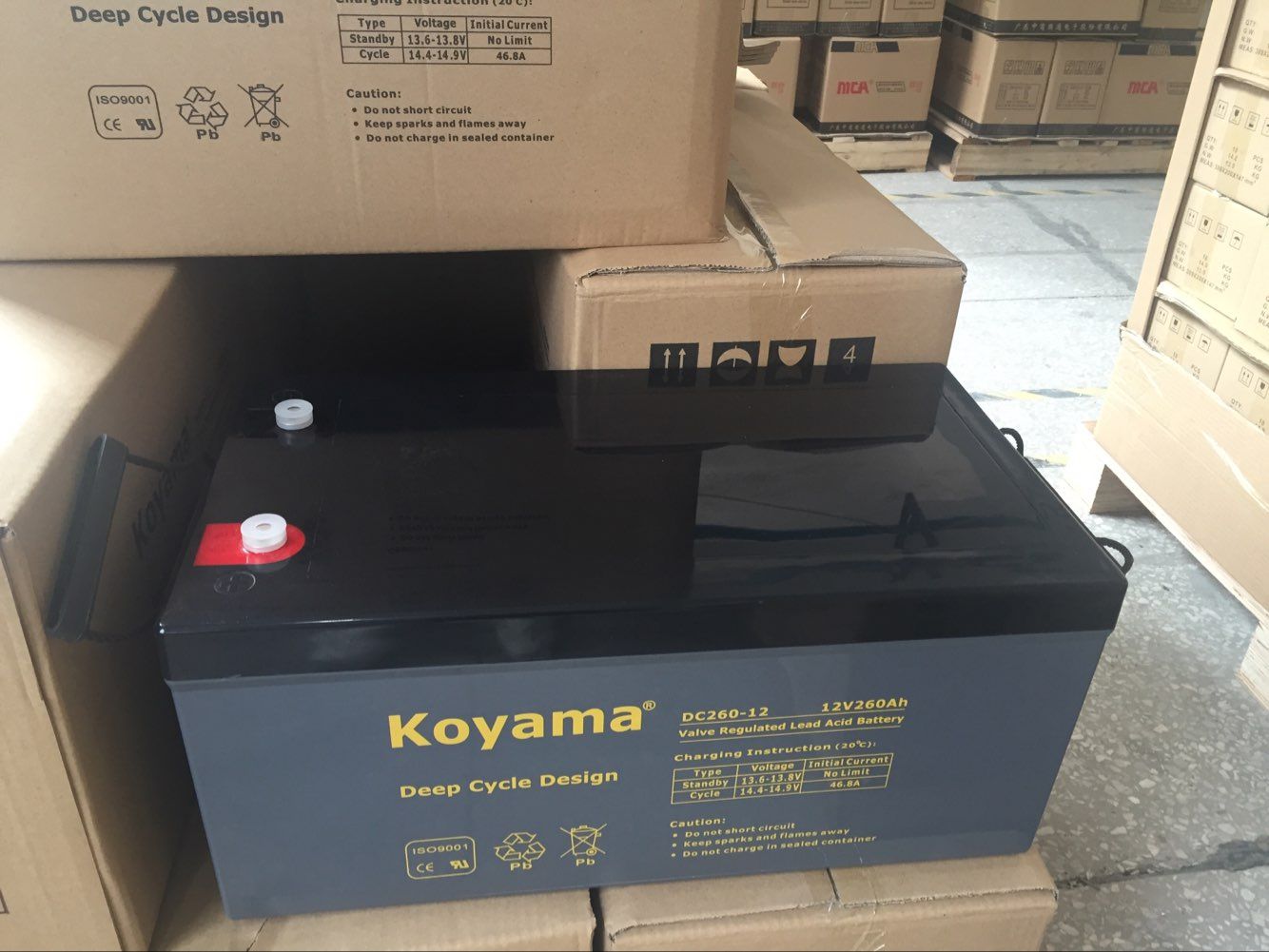

Model No: DC260-12
Rated Voltage(V) 12
Capacity (Ah) 260
Dimension: 520*268**220*226mm
Weight: 77 kg
Terminal: T5
Koyama DC Series Deep Cycle AGM Batteriesare specifically designed with revolutionary heavy duty plate AGM technology with high percentage tin alloyed. Batteries are ideal for applications that require sealed batteries with heavy duty cyclic capability or for backup power & storage. They are recommended for motive power applications.
EXTRA FEATURES
-Superior Deep Cycle Design
-High Power Density
-Thick Plates and High-density
-Active Material
DEEP CYCLE APPLICATIONS
- Golf/NEV/Utility Vehicles
-Aerial Work Platforms/Access
- Floor Machine
- Material Handings
-Renewable Energy Systems
-Backup power
Lead time: 25-30day after getting payment
Warranty: 2 years
Design life: 6-8years
Certificates: ISO, CE, UL
Description
Deep-cycle batteries typically feature thick plates with a high-density active material. The thick battery plates allow for reserve energy to be stored deep within the battery plate and released during slow discharge such as trolling or electronic instrument use. The high-density active material remains within the batteries 'plate/grid structure longer, resisting the normal degradation found in cycling conditions. They are typically used where the battery is discharged to great extent and then recharged.
Deep Cycle refers to applications that typically discharge 60 to 70% or more of the battery capacity. An automotive battery is an SLI battery (Starting, Lighting & ignition. )Its plates are designed to deliver maximum power for a short duration.
Starting an engine typically discharges an SLI battery 3% or less. When an SLI battery is used in a deep cycle application or in a vehicle with heavy accessory loads, the battery life will be shortened proportionally to how deeply and frequently it is discharged.
The Koyama Deep Cycle battery uses a different chemistry for the plates 'active paste material, and a slightly stronger acid. This chemistry allows for a much longer life in deep cycle applications with only a slight reduction in maximum power output.
We are one of the leading manufacturers of Deep Cycle batteries for more than 20 years in Guangdong, China. All batteries are excellent quality, well recognizing worldwide and with reasonable Prices. Any inquiries or query would be replied at the earliest date.
| DC Series-AGM Batteries for Deep Cycle Services | | |
| Model No | Rated Voltage(V) | Capacity (Ah) | Dimension | Weight | Terminal Type |
| Length | Width | Height | Total Height | kg |
| mm | mm | mm | mm |
| DC200-6 | 6 | 200 | 306 | 168 | 220 | 222 | 30.5 | T5 |
| DC210-6 | 6 | 210 | 260 | 180 | 247 | 249 | 30 | T5 |
| DC220-6 | 6 | 220 | 306 | 168 | 220 | 222 | 32.0 | T5 |
| DC225-6 | 6 | 225 | 243 | 187 | 275 | 275 | 31.5 | T5 |
| DC310-6 | 6 | 310 | 295 | 178 | 354 | 360 | 46.0 | T5/T6 |
| DC330-6 | 6 | 310 | 295 | 178 | 354 | 360 | 46.6 | T5/T6 |
| DC380-6 | 6 | 380 | 295 | 178 | 404 | 410 | 55.3 | T5/T6 |
| DC420-6 | 6 | 420 | 295 | 178 | 404 | 410 | 57 | T5/T6 |
| DC200-8 | 8 | 200 | 260 | 182 | 295 | 301 | 39.5 | T5 |
| DC14-12 | 12 | 14 | 152 | 99 | 96 | 102 | 4.1 | F1/F2 |
| DC20-12 | 12 | 20 | 181 | 77 | 167 | 167 | 6.1 | T1/L1 |
| DC24-12 | 12 | 24 | 166 | 175 | 126 | 126 | 8.5 | T1 |
| DC26-12 | 12 | 26 | 165 | 126 | 174 | 174 | 9.0 | T2 |
| DC35-12 | 12 | 35 | 196 | 130 | 155 | 167 | 10.5 | T3 |
| DC40-12 | 12 | 40 | 198 | 166 | 174 | 174 | 14.5 | T3 |
| DC55-12 | 12 | 55 | 229 | 138 | 208 | 212 | 16.8 | T3 |
| DC70-12 | 12 | 70 | 350 | 167 | 178 | 178 | 23.5 | T3 |
| DC75-12 | 12 | 75 | 260 | 169 | 211 | 215 | 25 | T3 |
| DC85-12 | 12 | 85 | 260 | 169 | 211 | 215 | 26.1 | T3 |
| DC90-12 | 12 | 90 | 307 | 169 | 211 | 216 | 28.5 | T3 |
| DC100-12 | 12 | 100 | 307 | 169 | 211 | 216 | 30.5 | T3 |
| DC110-12 | 12 | 110 | 331 | 174 | 214 | 220 | 33.5 | T4 |
| DC120-12 | 12 | 120 | 407 | 173 | 210 | 233 | 39.5 | T5 |
| DC135-12 | 12 | 135 | 341 | 173 | 283 | 289 | 41.5 | T5 |
| DC150-12 | 12 | 150 | 484 | 171 | 241 | 241 | 46.0 | T4 |
| DC180-12 | 12 | 180 | 532 | 206 | 216 | 222 | 56 | T4 |
| DC200-12 | 12 | 200 | 532 | 206 | 216 | 222 | 58.8 | T4 |
| DC210-12 | 12 | 210 | 522 | 240 | 219 | 225 | 66 | T5 |
| DC240-12 | 12 | 240 | 520 | 269 | 203 | 209 | 71.0 | T5 |
| DC260-12 | 12 | 260 | 520 | 268 | 220 | 226 | 77 | T5
|
