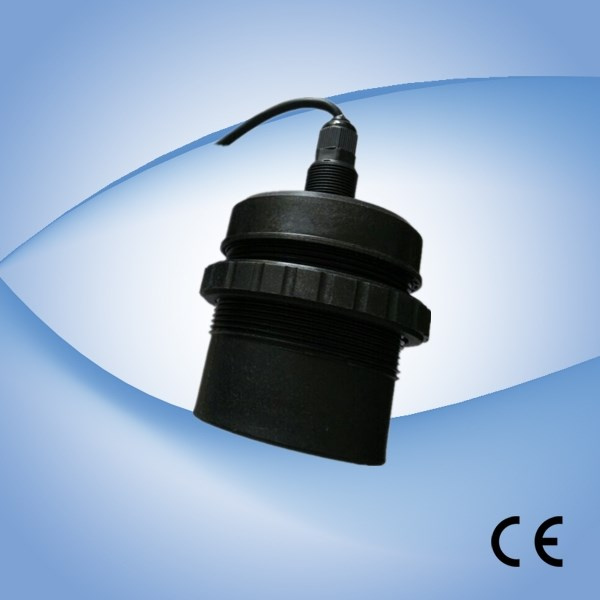

Long Measuring Range Ultrasonic Level Transmitter

Name: Long Measuring Range Ultrasonic Level Transmitter
Brand: all-electronics-online.com
SKU: 829931525
Availability: InStock
Rating: 4.6 (61 reviews)

Price:	US $ 100/Piece
Min Order:	5/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QU-05

Product Description

Model: QU-05

QU-05 ultrasonic level sensor is a combination of ultrasonic sensor, temperature sensor, ultrasonic servo circuit and transmitter circuit. It uses SMD components and ASC chip, which makes the circuit compact and concise. The circuit board is plated and has high stability and longterm reliability. Meanwhile, the shell uses NLEPF synthetic materials with sturdy texture and good acoustic property. The transducer can be used in most working condition sites. While fixing it on the liquid wall or instrument housing, there is no need tools such as screws, but a 68mm hole. It has the features of tabilization, easy installation and disassembly.

Parameters:

Item	Specification
range	5m,7m
Blind	≤300~350mm(according to sensor can Customize:200mm,100mm)
Accuracy	±0.5%F·S(Customized:0.25% F·S)
Output signal	4~20mA three wire system,4~20mA four wire system,1~5V,RS485,RS232, 1~10V or others
Beam angle	15°,12°(according to sensor can Customize)
Operating temperature	0~50°C(Customize:-10~60°C,-20~70 °C )
Power Supply	DC24V/300mA or DC12V/300mA
Cable way	Water proof connector ,down-lead 0.5m
Defend grade	IP65(Customized:IP66,IP67)
Mounting model	screw, or sifter clamping Thread size:M49×1.5mm
Application environment	normal pressures,non-explosion-proof,non- corrosive environment Customize:PDF BOOK,anti-explosion symbol Exia AT3

Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.

QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).

All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.

In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.

Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
