| Prod Model: |

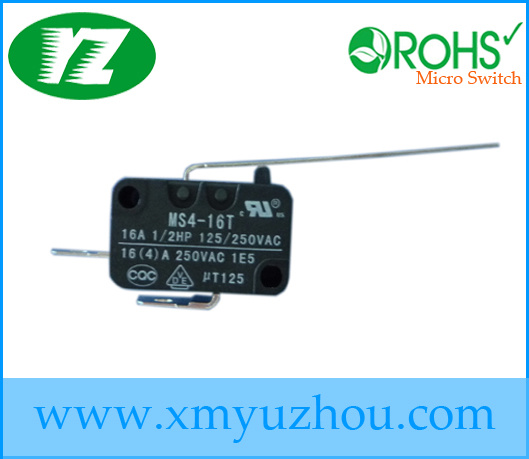

MS4-16T2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Theory: |
Electrical Micro Switch |
| Current: |
6A/16A |
| Voltage: |
250V |
| MOQ: |
1000PCS |
| Pressing Type: |
Long Arm |
| Protection: |
Dust-Proof |
| Size: |
Small-Sized |
| Breaking Form: |
Single Type |
| Environment: |
﹤250℃ |
| Breaking Capacity: |
Micro-Current |
| Application: |
Home Appliances |
| Brand: |
Yz |
Product Description
Electrical Micro Switch
Good quality, All kinds of operating force, Several Kinds of Terminal
1. Rated current and voltage:
16(4) 250 V AC/16A 125V AC 1/2HP 125/250VAC;
10(3)A 250V AC/10A 125VAC
6(2) A250VAC/1A 125VAC
1(1)A 250VAC/1A125VAC
2. Contact Resistance: 30mΩ Max;
3. Insulation Resistance: 100MΩ (500VDC);
4. Operating Force: 1.5 N--3 N
5. Life: Mechanical ≥ 5000000 cycles; Electrical≥ 50000 cycles;
Apply to microwave oven, air conditioner, electric cooker, dishwasher, cleaner, humidifier, water heater, electric radiator, e; Ectric drill, joystick, TV game, time recorder, solder gun, mixer, food processor, juice maker, alarm, mixer, shredder machine, etc.
Why Choose Us:
1: We are factory and only make switch more than 9 years.
2: Excellent quality with favourable price.
3: Quality guarantee strictly before shipping.
4: Short lead time, 2-3 weeks after payment receiving.
4: Long life time, every switch approved with CE, CCC and ROHS certification
5: Design the wonderful switch for you as your request. And according your design to produce quality switch
Package
1. Each product is packed with thick box. Completely protect products be damaged on transit
2. Using standard thick carton to pack
3. Carton size: 370mmx315mmx360mm
|
Item |
Value |
Perating Speed |
0.1mm~1m/s(Related with actuator forms) |
Operating Frequency |
Mechanical 60 cycles/min;Electrical 30 cycles/min |
Insulation Resistance |
100 MΩ (500VDC) |
Contact resistance |
<=30mΩ(Initial value) |
Test Voltage |
Between terminals of the same polarirty |
AC1000V,50/60Hz,1min |
Between current-carrying metal
And ground(case),and between
Each terminal and non-carrying
metal parts |
AC2000V,50/60Hz,1min |
Vibration resistance |
10-55Hz,1.5mm Double amplitude |
Shork Resistance |
Destruction : OF>0.5N:1000m/s ²(approx.100G)max
OF<=0.5N:500m/s ²(approx.50G)max
Malfunction: OF>0.5N:300m/s ²(approx.30G)max
OF<=0.5N:200m/s ²(approx.20G)max |
Life Expectancy |
Mechnical>=5000000 cycles
Electrical>=50000 cycles |
Degree of protection |
IEC IP40 |
Degree of protection against electric shock |
Class I |
PTI(Tracking Resistance) |
175 |
Ambient air temperature |
125°C 60%RH below(No ice and dew) |
Ambient air humidity |
85% Rhbelow(about +5~+35°C) |
Weight |
Approx.5.95g(No lever) |
