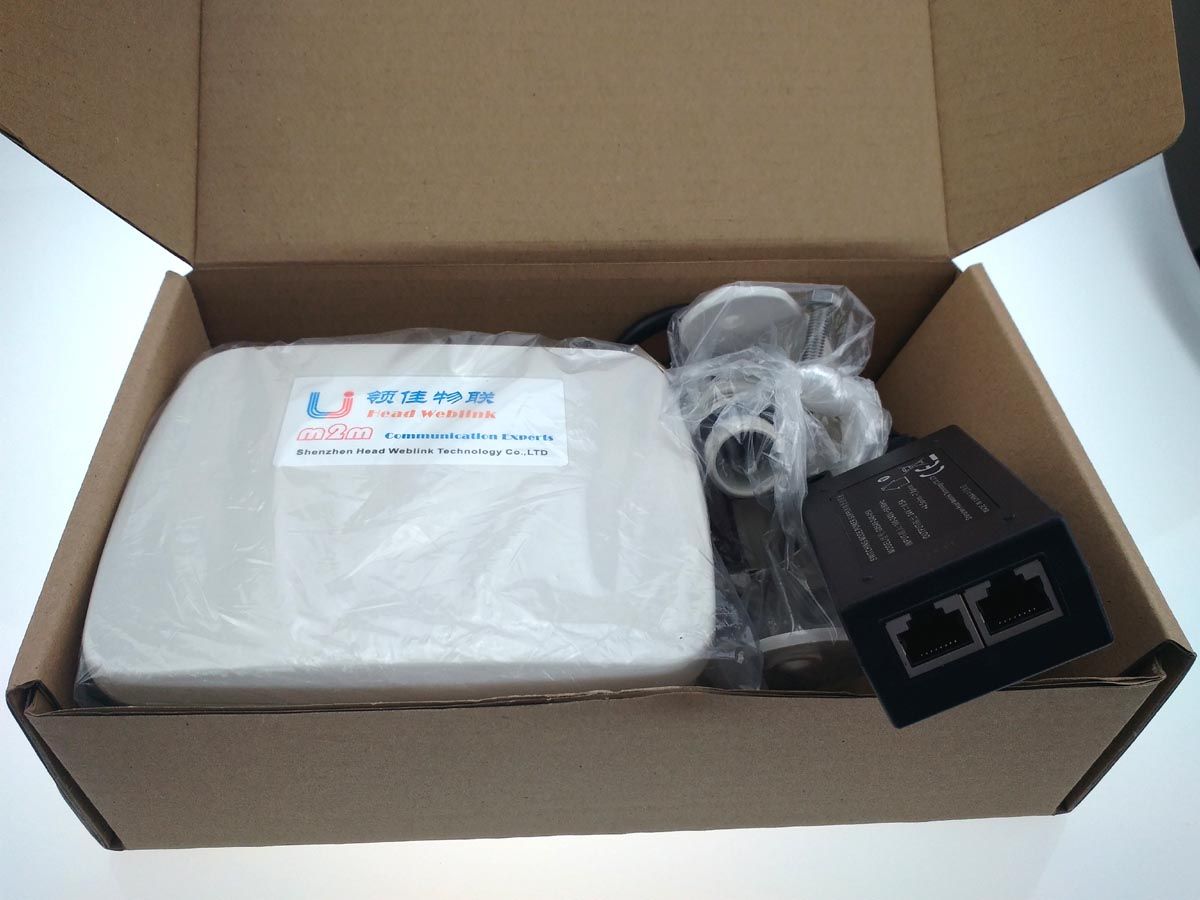

Long Range Transmitter and Receiver Outdoor Wireless CPE

Prod Model:	HDR1004G
WiFi Antenna Type:	Built-in
Transmission Rate:	101-150Mbps
Color:	Gray
Certification:	CE
Type:	Wireless Router
Work Mode:	4G Lte
Voltage:	12V~24V
Antenna Gain:	5dBi

Product Description

long range for 5km transmitter and receiver outdoor wireless cpe 4g outdoor router




Product Application
HDR100 outdoor router integrated machine, is designed for global market, It's designed waterproof, dustproof, lighting protection feature.Because of the industrial quality and multiple RF band combination.

HDR100 outdoor router provides stable and reliable data connection for user device such as RTU, Kiosk, Power Ammeter and other remote device management application. In order to achieve permanent online, some key features such as watch-dog function, wide temperature and multiple RF band/mode are supported by HDR100 outdoor router, making it can be used in any environment of worldwide.


Main Features
1)Industrial Quality: Industrial designing, waterproof, dustproof, lightning protection, making it stable and reliable;

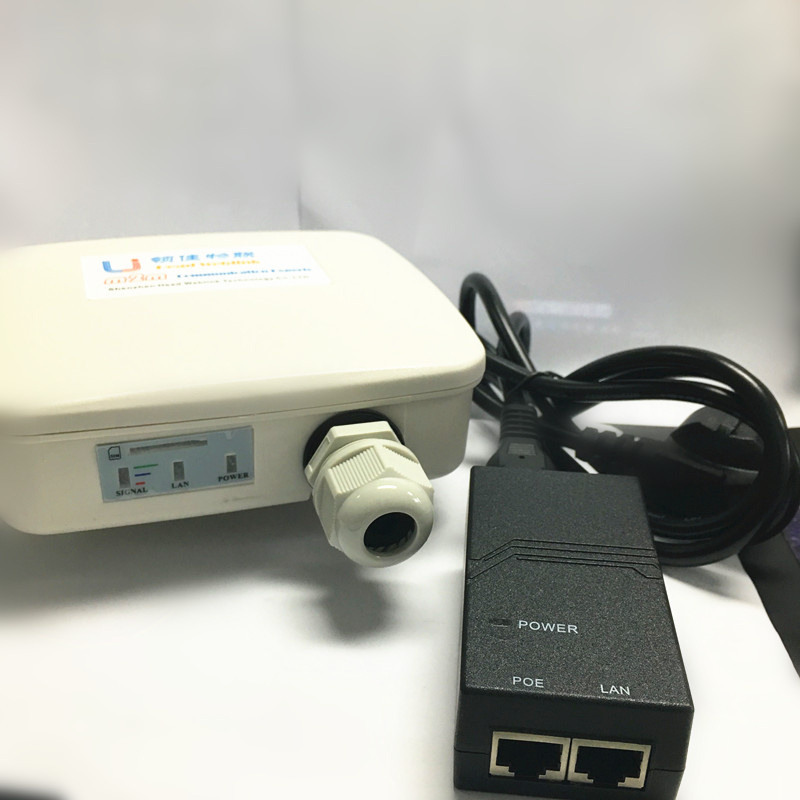

2) POE supply:Support POE power supply via LAN port. It can be extend 100m long via Ethernet cable.
3) High gain:High gain directional antenna , achieve 6DBi. It's suitable for poor signal region.
4) Waterproof and dustproof level. IP65.
5) Lightning protection.
*Note.
We can provide customized frequency bands for customers.



Version	Frequency bands
3G Version	HDR1003GWO+			HDR1003GEO.
	WCDMA. 850/1900MHz  & 900/2100MHz GSM.850/900/1800/1900MHz			EVDO 800MHz & 800/1900MHz
4G Version	Version A	Version E		Version C
	LTE FDD. B2,4,5,17 UMTS.850/1900MHz	LTE FDD. B1,3,7,8,20 LTE TDD B38, B40 UMTS. 900/2100MHz       GSM. 900/1800MHz		LTE FDD. B1,3,7,8 LTE TDD B38, B39, B40, B41 UMTS. 900/2100MHz  TD-SCDMA. 1880~1920MHz & 2010~2025MHz  GSM. 900/1800MHz
	Version JC	Version JE
	LTE FDD.B1,B3,B8,B18,B19 LTE TDD. B41 UMTS. B1,B6,B8 GSM. 900/1800MHz	LTE FDD. B1,B8 UMTS. B1,B8 GSM. 900/1800MHz

Date rate
3G Version	WCDMA. DL 14.4Mbps, UL 5.76Mbps	EVDO. DL 3.1Mbps, UL 1.8Mbps
4G Version	FDD LTE. DL,100Mbps  UL,50Mbps TDD LTE. DL,50Mbps    UL,25Mbps WCDMA. DL 42Mbps   UL5.76Mbps TD-SCDMA.  DL 2.8Mbps  UL 2.2Mbps	OR   LTE Category 4 - 150 Mbps (DL) LTE Category 4 - 50 Mbps (UL)

Technical Specification
Size/Weight: 150*130*67mmmm / 554g Temperature: Normal -30ć~+70ć, Restricted -35ć Power Supply: +5V ~ +30V  Power Saving: Typical 90mW, in sleep mode Max. Data/speed 4G Version 100Mbps DL/ 50Mbps UL 3G Version 14.4Mbps DL/5.76Mbps UL 2G Version 85.6Kbps DL/42.8Kbps UL	Hardware Interface: SIM card slot, LAN Main Function: SMS /STK FAX: Group 3 Class 1          Firmware update ( UI or FOTA)
