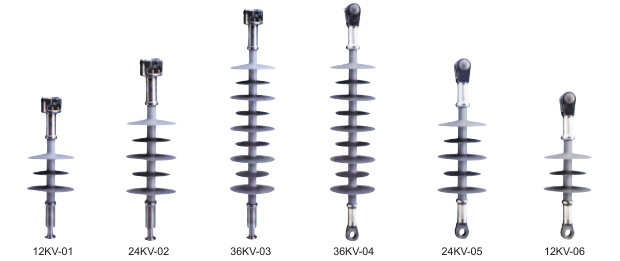

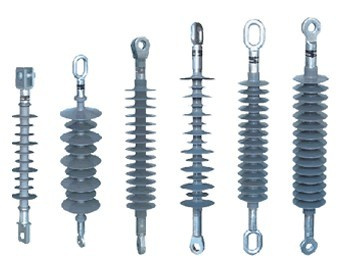

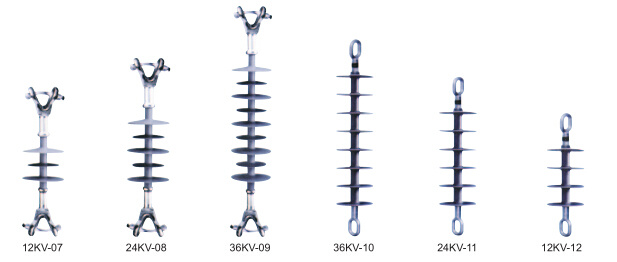

Long Rod Suspension Composite Insulator

Name: Long Rod Suspension Composite Insulator
Brand: all-electronics-online.com
SKU: 620962422
Availability: InStock
Rating: 4.9 (71 reviews)

Price:	US $ 1-20/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ALL KIND OF TYPES
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Phase:	Three
Application:	High-voltage
Material:	Composite Polymer
Type:	Power Cable

Product Description

• Good electrical specification, strong mechanical strength, tensile bending intension of the epoxy glass fiber rod of internal load bearing is double than normal rolled products, 8-10 times of high strength porcelain material, can effectively improve the reliable of safe operation.

• Fine anti-pollution, strong prevent flash accident, and the wet withstand voltage and pollution withstand voltage is 2-2.5 times than the same creep age distance porcelain insulator, and not to cleanup, can safe operate in the serious pollution areas.

• Small volume, lightweight (only for the same voltage grade of porcelain insulator 1/6-1/9), lightness structure, to easy for transportation and installation, the shed has favorable waterproof performance .which the whole structure assure the internal insulation is not wet, not need to test of prevent insulation and cleanup, to reduce the routine maintenance work capacity.

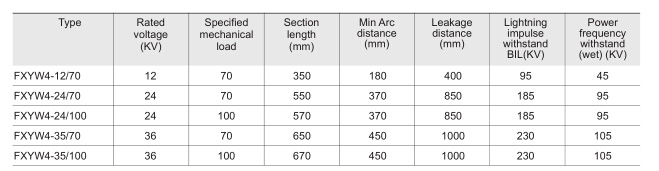

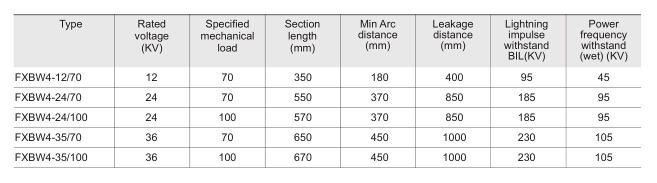

Basic Data

Service
Choose our products! You'll get
1) Good quality guarantee (2 years)
2) Factory direct prices
3) On time delivery
4) Free sample
5) Professional technology support

Strict quality controls have been taken to ensure that you'll get reliable products.
a. Material checks before production .
b. Random inspection during production .
c. Inspection before the shipment.

Our products fully comply with well recognized standards such as IEC, BS, ANSI.

FAQ:
1. Q: Do you have a catalog? Can you send me the catalog to have a check of all your products?
A: Yes, We have product catalog. Please contact us, we'll send our catalog by E-mail.

2 Q: I can't find the product on your catalog, can you make this product for me?
A: Our catalog shows most of our products but not all. If you couldn't find it, let us know the specification of your requirements, it usually takes 20-30 days for us to design and make new moulds which match your requirements.

3 Q: What's your payment term?
A: The price FOB Ningbo under payment term is 50% T/T in advance and the balance before shipment.

Chongqing Ziyong Technology Co., Ltd(Wenzhou(Yueqing) Ziyong Electrical Co., Ltd )is a professional supplier and exporter of electric cable connectors and fittings. Our products include a wide range of Aerial Electrical Fittings (Main products like: Insulation piercing connectors, suspension clamps, anchor clamp, etc. ); A variety of Electric Power Fittings (PG clamps, Aluminium alloy stain clamps, wedge clamps, earth rod); Various kinds of terminals, lugs and link fittings; And many other products for power line system.

Our products are widely used in LV & MV power line system. All of our products with highest quality. We are CE certified, have the ISO9001: 2000 certificate, all the produce is according to International Standard, such as NFC, GB and so on. We also offer OEM service of customized requests. We owns the most advanced technology. Have the ability to research and design electricala apparatus by ourselves.

We also hope that we can receive the feedback from you on evaluating our products, offering your good ideas. Let us build up international quality in China together!
