Long Slim Indoor 20W 12V LED Driver

Name: Long Slim Indoor 20W 12V LED Driver
Brand: all-electronics-online.com
SKU: 779792215
Availability: InStock
Rating: 4.8 (124 reviews)

Price:	US $ 3.3-3.4/Piece
Trade Terms:	FOB,CIF,DAP
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	TL-12E20
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe
Input Voltage:	220-240
Output Voltage:	12V
Output Current:	1.67A
Size:	2851818mm
Dimming:	Not-Dimmable
Wattage:	20W
Efficiency:	82%
IP Rating:	IP20
Cooling:	Free Air Convection
Weight(Kg):	0.2000
Usage:	Vehicle
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	AC220-240V
Brand:	Neonpro

Product Description

Long Slim Indoor 20W 12V LED Power Supply/ LED Driver

1. Features of LED driver
-Super Slim body, special design for application with narrow space.
-Constant Voltage output.
-For Indoor use only.

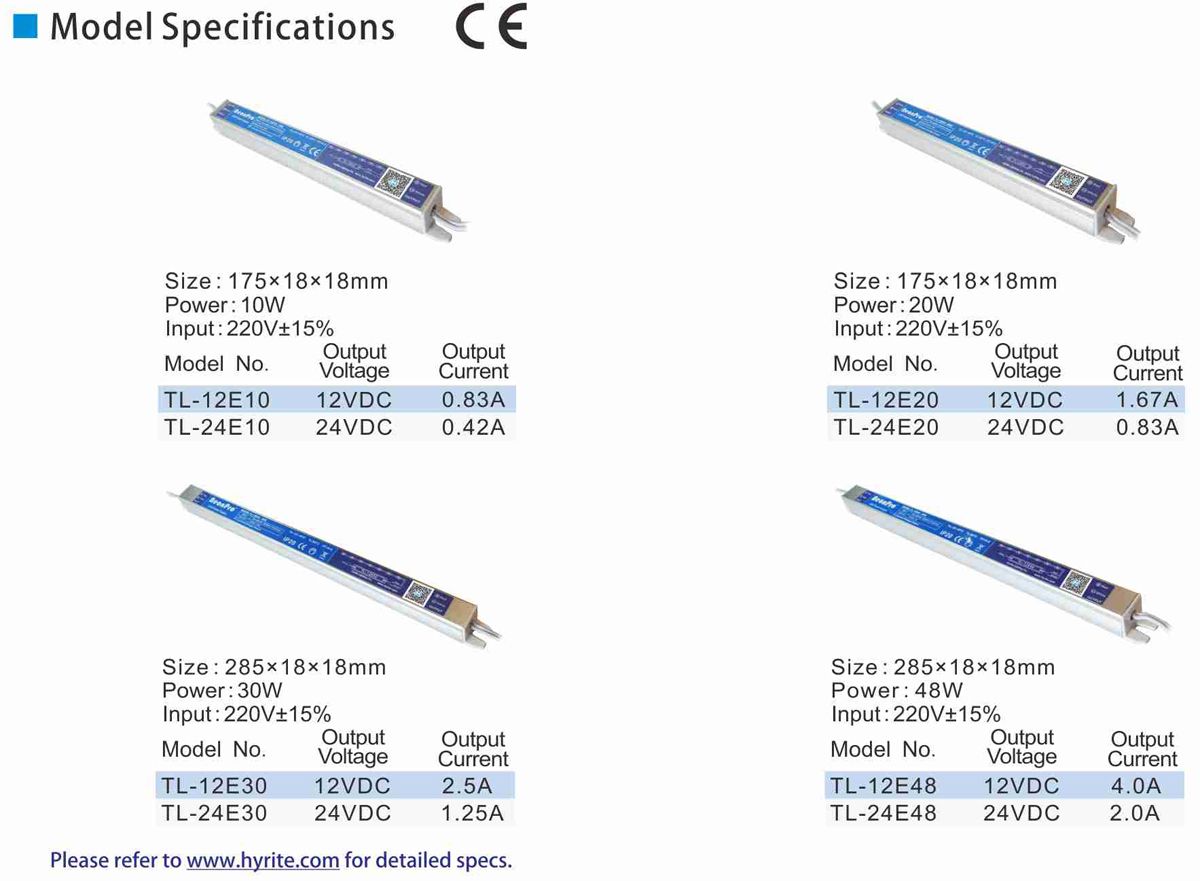

2. Technical Specification of LED driver

Model no.	TL-12E20,TL-24E20
Model series	TL
Input voltage	220 VAC± 5% 50/60 Hz
Power	20W
Output type	Constant voltage
Dimming	Not dimmable
Power Factor	Low PF~0.6
Efficiency	82%
Output voltage	12V; 24V DC ± 5%
Output current	1.67A; 0.83A max
Overload protection	105%-120% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25~40ºC
Installation	Indoor
IP rating	IP 20
Cooling	Free air convection
Certificates/standards	CE
*Dimensions(LWH)*	2851818 mm
Weight(kg)	0.0700
Packing information	100 Pcs/ Carton, G.W 7KG

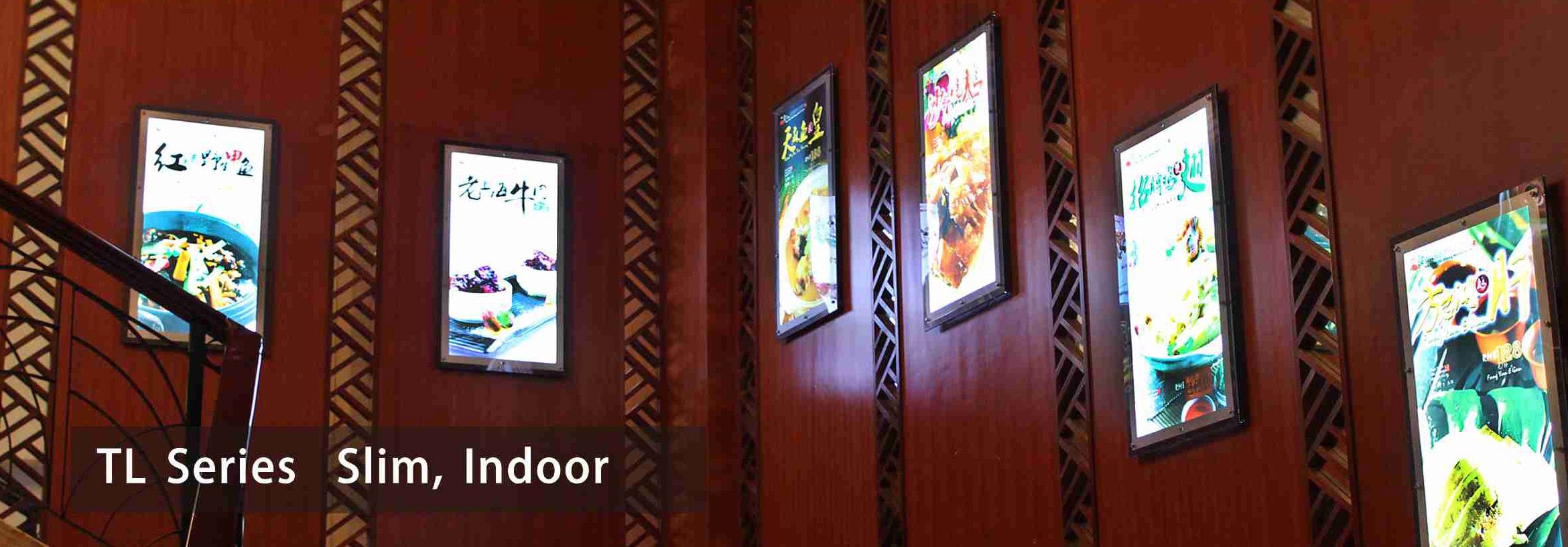

3. Application of LED driver
Slim LED Light box
Display cabinet lighting
Covelight, channel letter
Used for LED module, strip, perforating lamp, pixel lamp, light bar, light box, wall washer, panel light, etc…

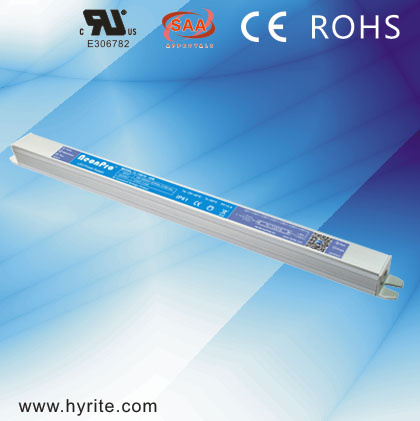

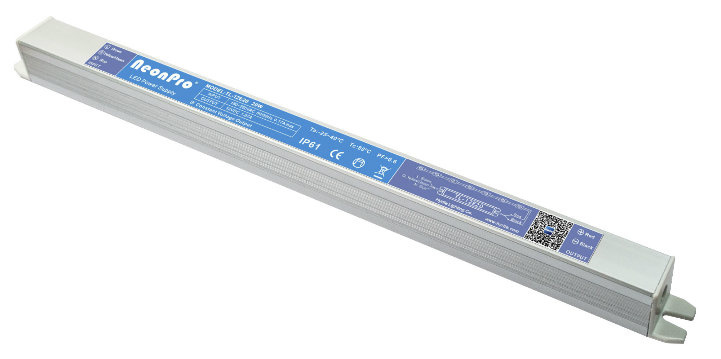

4. Product Pictures of long slim power supply / LED driver

5. Projects Picture & Company's workshop & Exhibition

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
