| Prod Model: |
GPS container Tracker 104 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Battery: |
6000 mAh Coban Container GPS Tracker |
| Compact Design: |
Internal and External Antennas |
| Certificate: |
Ce FCC Coban GPS Tracker |
| Standby Time: |
100 Days Standby GPS Tracker 104 |
| Features: |
Waterproof, Magnetic, External Internal Antenna |
| Delivery Time: |
2-3 Business Days |
| Tracking Solution: |
SMS, GPRS Web Platform, Android Ios APP |
| Car Container Security: |
Engine Shut, Large Battery, Real Time Tracking |
| Support Android Ios APP Tracking: |
Yes |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Screen Size: |
No Screen |
| Operating Principle: |
GPS Position and GSM Transmit |
| Port Number: |
20 |
| Model: |
104 |
| Brand: |
Baanool GPS Tracker |
| Chip: |
No |
| Certification: |
ISO9001 |
Product Description

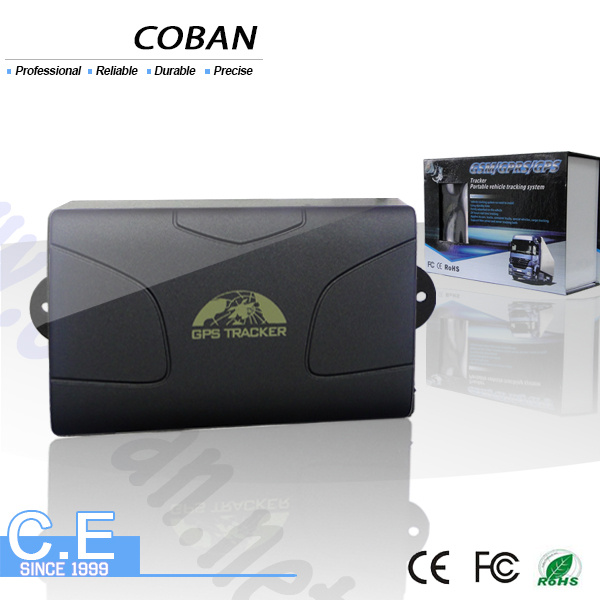

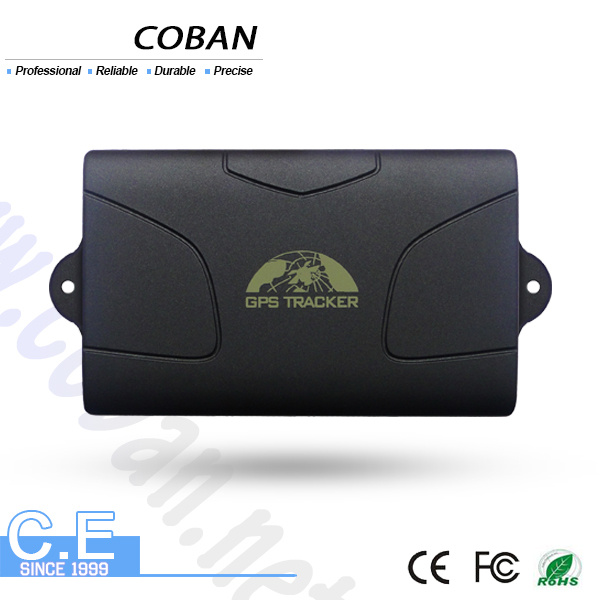

Long Standby GPS container Tracker 104 with Real Time Web APP TrackingWhat's the special?-standby 60 days
-built in motion sensor
-built in Built-in GPS antenna and GSM antenna
-Built-in powerful magnet
-EXT. Power, Relay
-3 LED Indicators
-support AC Adapter and Lighter car adapter
-SOS in emergency
-Door alarm, ACC alarm, sensor alarm
What's the basic information?General
Based on GSM/GPRS and GPS network, you can locate and monitor any remote targets by SMS or GPRS.
Features:O Waterproof shell
O Built-in large capacity 6, 000mA battery, long standby time of 60 days
O Powerful magnets to absorb to vehicle firmly
O Real-time tracking, retrieve of lost vehicles, cargo
O Movement alarm, geo-fence alarm, shock sensor alarm, and remote
Monitoring
O Support map viewing on mobile phone screen, get absolute address by SMS,
GPRS real-time tracking on web based server
O Built-in high sensitivity GPS and GSM antenna to make it can be used alone
Without installation, convenient and quick
O Supports for external GSM antenna, GPS antenna, and external power supply
For the tracker to be installed on the device which can provide power for
Long-term using
O Easy for installation
Functions:O Web based online tracking
O View map on cellphone, PDA, view target current location on map on the cell
Phone and PDA with the maps link in the message from tracker
O
Get location in real street/address name, send address + password to tracker. The tracker will reply detailed street address, like No. 113, Nantou guankou 2ND rd, Nanshan, Shenzhen, China
O If your target enters into underground parking lot or other GPS blind area, the tracker will inform you the last orientation
O
Remote engine-stop and resumeO Tracking function by timing and frequency
O Authorized number added and deleted function
O Support hidden alarm and monitor function
O Geo-fence: Set up a geo-fence for the unit to restrict its movements within a district
O The unit will send the message to the authorized numbers when it breach the district.
O Door alarm
O ACC alarm
O Movement alert: You can set up barriers when the vehicle is stopped.
Application1. Vehicle for rental or manage of outside equipment, etc.
2. Protect the elder, kid, employee and pet, etc.
3. Protect the businessmen.
4. Manage the outworker.
5. Covert Tracking.
GPS104 Specifications
Content | Specifications |
| DIM. | 94mm*60mm*38mm |
| Weight | 300g |
| Network | GPS/GSM/GPRS |
| Band | 850/900/1800/1900Mhz or 900/1800/1900Mhz |
| GSM/GPRS Module | Simcom340z or Simcom300z |
| GPS Module | SIRF3 chip |
| GPS sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status | 45s |
| Hot status | 1s |
| EXT. power | DC 12 V -24V |
| Operating Current | Sleep Current | 4mA±1mA |
| GSM operating Current | 54mA±3mA |
| GPRS Current(data transfer) | 60mA±5mA |
| Battery | 3.7V 6000mA/h Polymer battery |
| Charge current | 1.2A±0.2A |
| Charge time | 5h |
| Standby time | GSM sleep mode | 1500h |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing
|
