| Prod Model: |
GPT26 |
| Voltage: |
3.7 VDC |
| Work Current: |
<30 Ma |
| Standby Current: |
<15 Ua |
| GPS Accuracy: |
5-15 M |
| Lbs Accuracy: |
About 200m |
| GPS Frequency: |
1575MHz |
| GSM Frequency: |
850/900/1800/1900MHz |
| Battery Capacity: |
7000 mAh |
| Dimensions (mm): |
108.5(L) × 66.5(W) × 22.4(H) |
| Weight: |
180 G |
Product Description

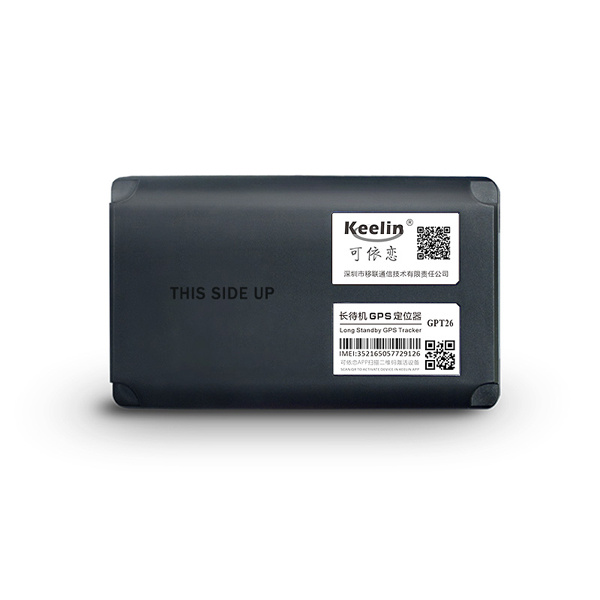

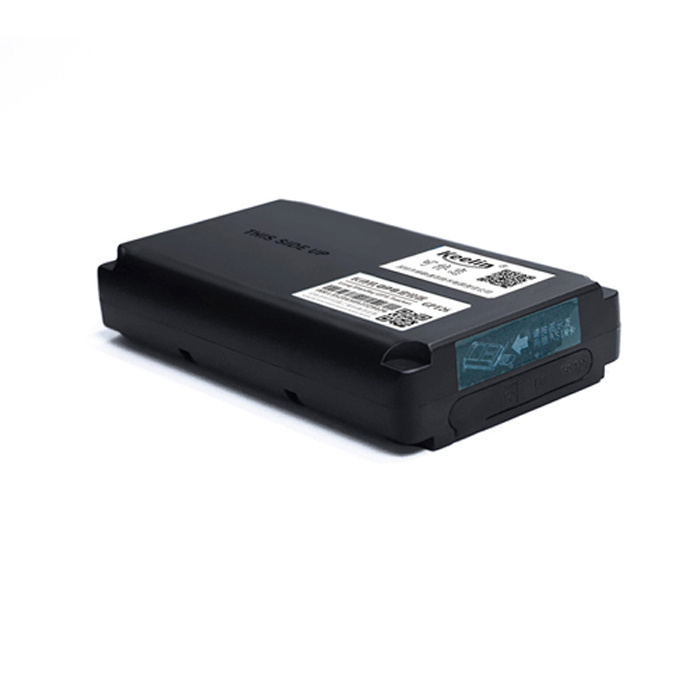

GPS TRACKER GPT26 standby 1 Month/Rechargable
PRODUCT FEATURES:
Supports quad bands, i.e. 850/900/1800/1900MHz, universal in the world.
GPS / LBS Double locating mode , support A-GPS
Usually LBS working, GPS can be enable when needed (automatically closed after 6 hours)
Built-in 7000mAh High-capacity battery, The longest standby for a month (LBS status)
Strong magnetic force,can be adsorped on iron
Military grade three anti-performance, waterproof to IP67
Keelin Tracking Service Platform, Keelin APP Client, SMS query
Support EELINK protocol, can be integrated to any platform of the customer's
OTA upgrade firmware.
PLATFORM/APP:
Real-Time Tracking
History Route Play Back
Vibration Alarm
SOS Alarm
Speed Alarm
Geo-fence Alarm
Low Battery Alarm
Application Scenarios:
GPT26 is an one-month standby GPS tracking device, which battery can last longest for 1 month. It can be applied to asset monitoring, car rental, vehicle loan, VAL reserve and transportation, heavy machinery lease, Zoology breeding, automotive security, and special items' monitoring and controlling, etc.
It's rechargable ,military grade three anti-performance, easy to be hidden, with real time tracking. These characters bring security for your assets
Typical application: logistics enterprise, fleet management, bus management, insurance companies,power companies, oil companies, communication companies, taxi companies, car sales, car rental companies, car owners, the small and medium-sized enterprise team, vehicle maintenance , automotive research personnel, the individual owners.
Basic Specifications:
Voltage | 3.7 VDC |
Work Current | <30 mA |
Standby Current | <15 uA |
GPS Accuracy | 5-15m |
GSM Accuracy | About 100m |
GPS Frequency | 1575MHz |
GSM Frequency | 850/900/1800/1900MHz |
Hot/warm/cold Start | <3s,<15s,<60s |
Battery Capacity70 | 7000 mAh |
Dimensions (mm) | 108.5(L) × 66.5(W) × 22.4(H) |
Work Temperature | -20ºC~70ºC |
Work Humidity | 20%~80%RH |
Net Weight | 180g |
IPR | IP67 |
Platform:
You can choose Keelin terminal monitoring platform or download APP by phone. It is both designed by EELINK, we can position, real time tracking and playback on the platform server or app. Meanwhile you can use your own platform which can support multiple protocols.
Platform website: hk.keelin.com.cn, choose language at the right hand side and click demo button to experience
Delivery:
*Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
*For order over 500pcs or customized order, please contact our sales to make sure the current inventory. Our manufacturing capacity is 1, 200, 000 units per year. And for the popular units we hold 3000pcs stocks in advance per month.Warranty:
*All products have been strictly Quality Checked in house before packing.
*All products have been well packed before shipping.
*One year warranty is provided for all models. We will bear maintenance cost during warranty.
