Long Stroke Range up to 100000mm Wire Rope Displacement Sensor

Name: Long Stroke Range up to 100000mm Wire Rope Displacement Sensor
Brand: all-electronics-online.com
SKU: 820280955
Availability: InStock
Rating: 4.6 (83 reviews)

Price:	US $ 100-120/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WPS-S-A
Cetification:	RoHS
Output Signal:	4-20mA
Warranty:	12months
Feature:	High Precision
Material:	Aluminum Alloy

Product Description

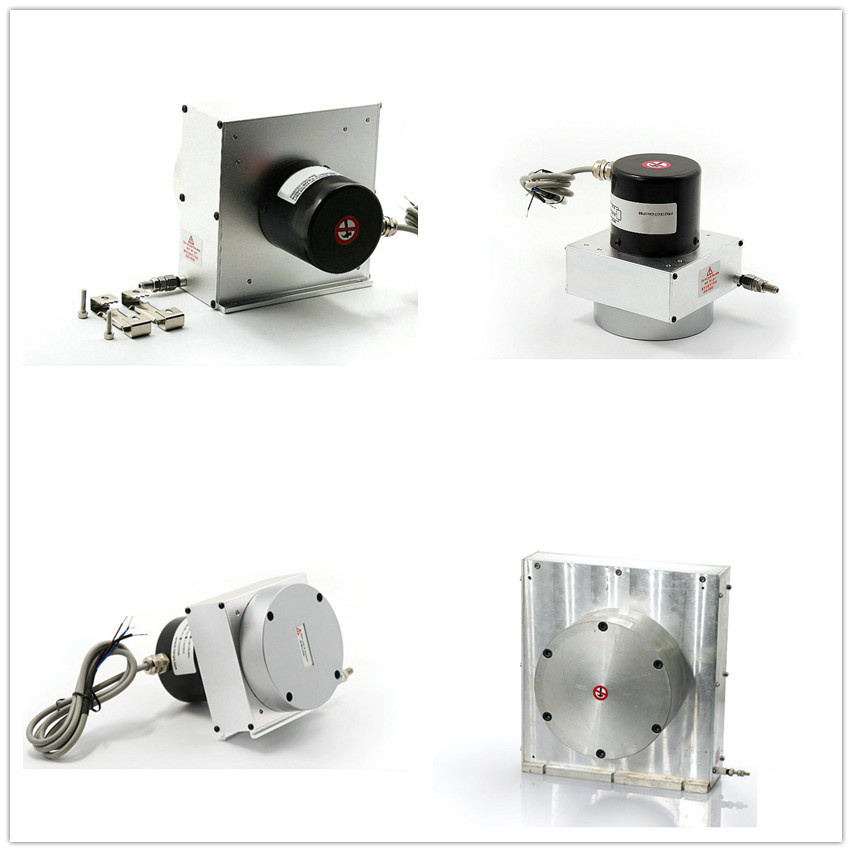

Long Stroke Range up to 100000mm Wire Rope Displacement Sensor

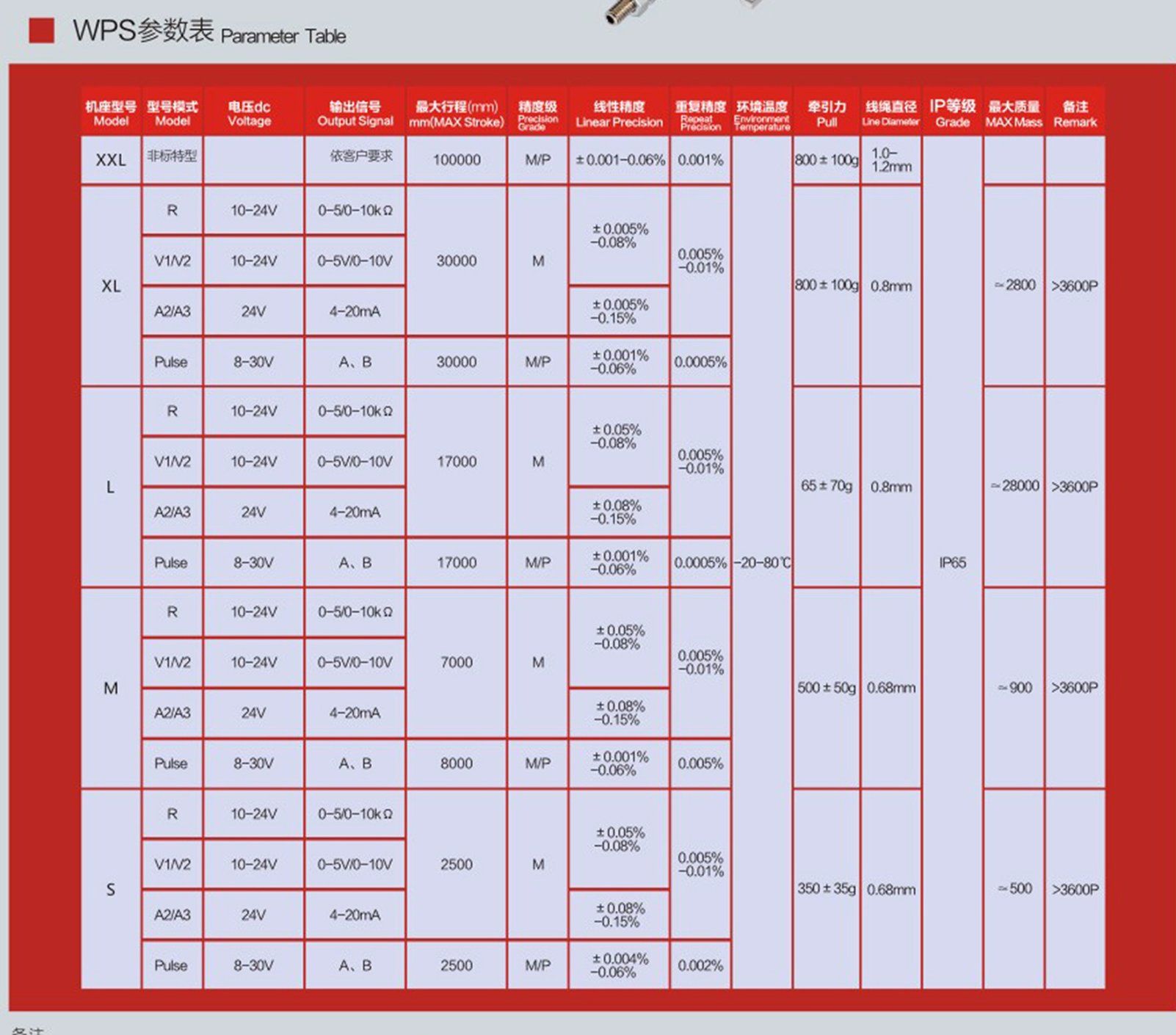

Modle	Max Stroke	IP Grade	Line Diameter	Environment Temperature
WPS	mm	IP	mm	ºC
XL	30000	65	0.8	-20~80

Aluminum alloy shell, lightweight appearance
Nti-corrosion and anti rust, usage is very long
With fashion black box
Precious and not too clear

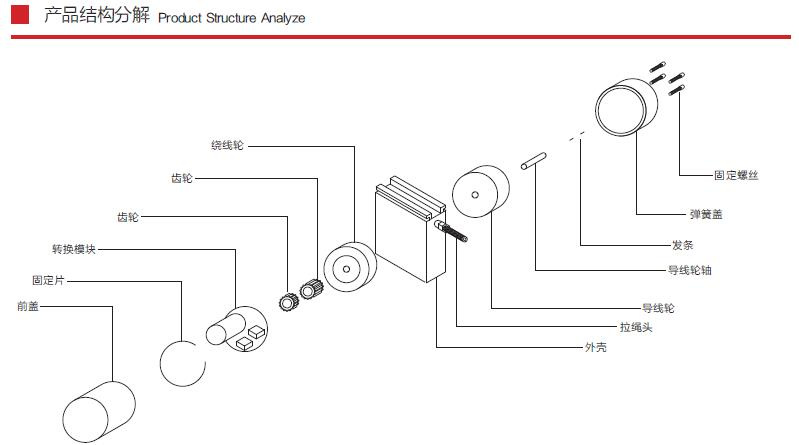

Draw-wire displacement sensor measures linear movements using a highly flexible steel cable. The cable drum is attached to a sensor element which provides a proportional output signal.

We offer one of the largest variety of Linear Draw Wire Sensors in measuring ranges from 100mm up to 100000mm. A variety of configurations are available, providing alternative features. A number of outputs are available, including Poteniometer, Voltage, Current, and Quadrature Encoder.

Rope displacement sensor, also known as draw wire sensor, rope encoder. It is fully compacted by a linear displacement sensor in structure which combined the advantages of an angle sensor and linear displacement sensor, ranging from a few hundred millimeters to 100 meter, with small size, compact structure, measuring stroke, high precision and 4 to 20 mA analog current, analog voltage 0 to 5 V or 0 to 10 V and pulse A, B, Z-phase digital output to meet various signals demand of the large stroke, high precision for the majority of customers use.
Package:

Packing with standard carton
Are your company a Professional manufacturer?
Yes, we are a factory with 13 years' custom production.
What's your company warranty policy?
After-sale Service
Experienced suggestion for sensor installation and use.
12 months warranty. Long-term technical support.
Our warranty doesn't include misusing and man-made damages.
