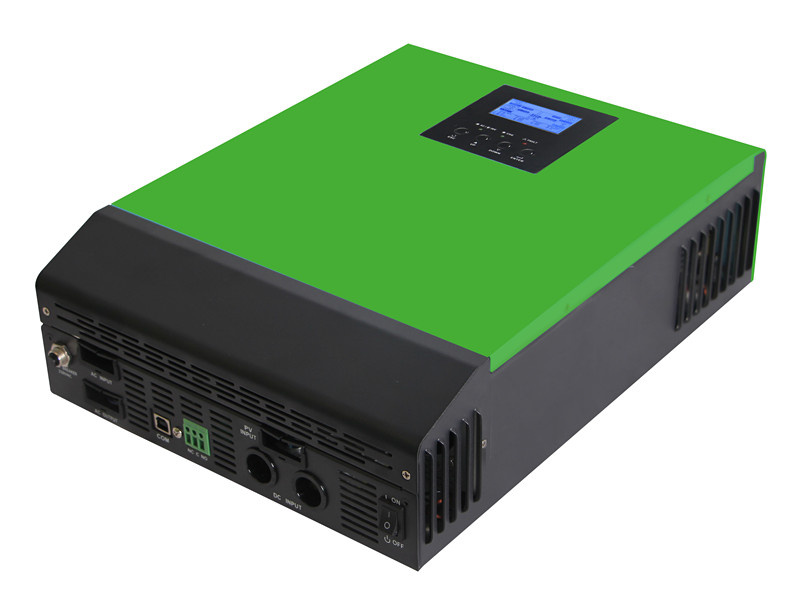

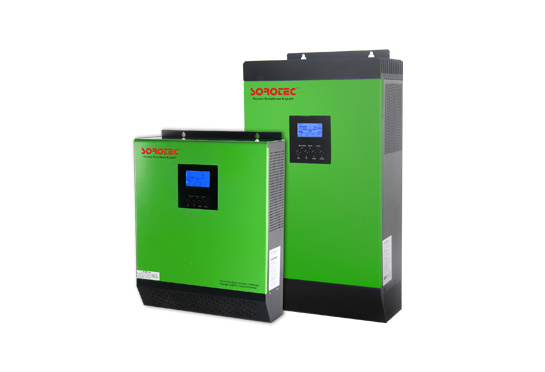

Long Time Backup Power Supply, off Grid Integrated Solar Power Inverter 1000va to 5000va

Prod Model:	SSP3118C 1000VA-5000VA
Product Name:	Solar Power Inverter
Inverter Power:	1000va-5000va
Size(W*D*H):	105X 272 X 355mm
Weight(Kg):	N.W: 6.4/6.9kg
Colour:	Green
Application:	Home and Office Appliance
Output Power Factor:	0.8
Solar Controller:	PWM
Wave Form:	Pure Sine Wave
Parallel Working:	Max 6PCS Solar Power Inverter

Product Description

Long Time Backup Power Supply,Off Grid Integrated Solar Power Inverter  1000VA to 5000VA

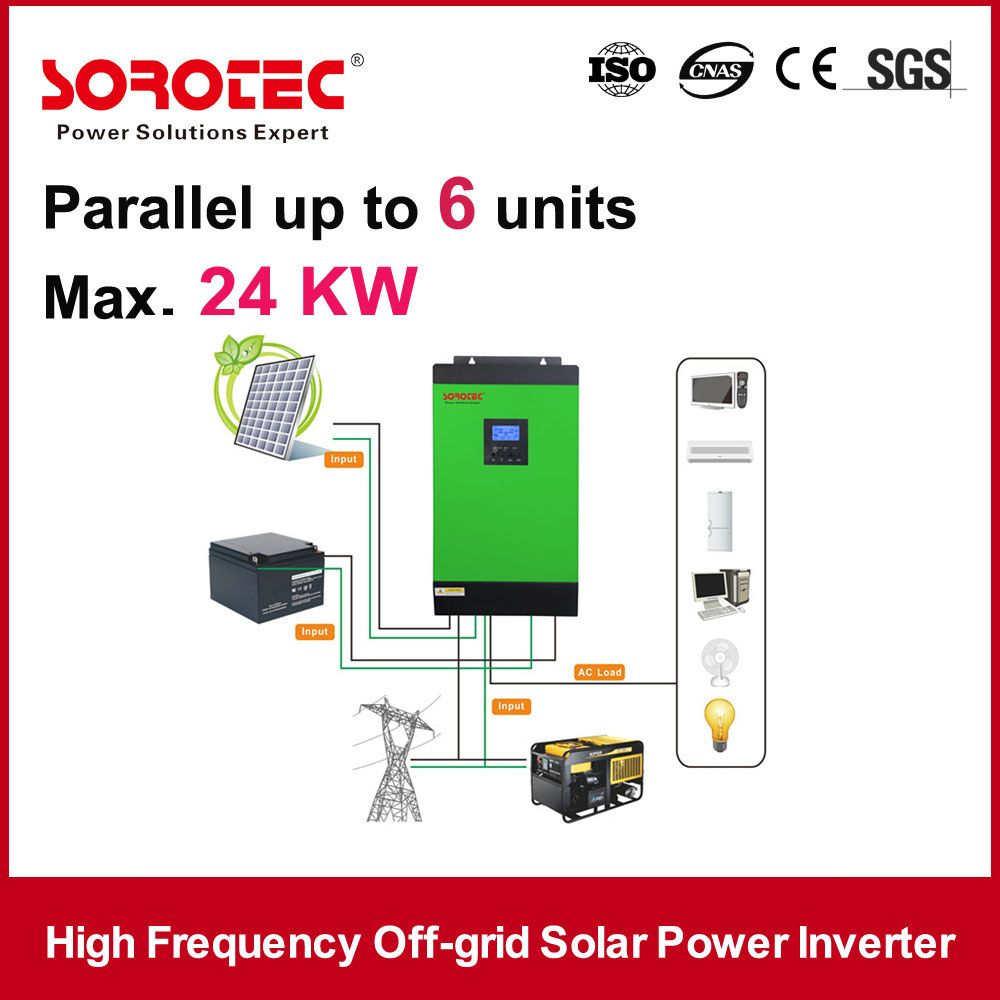

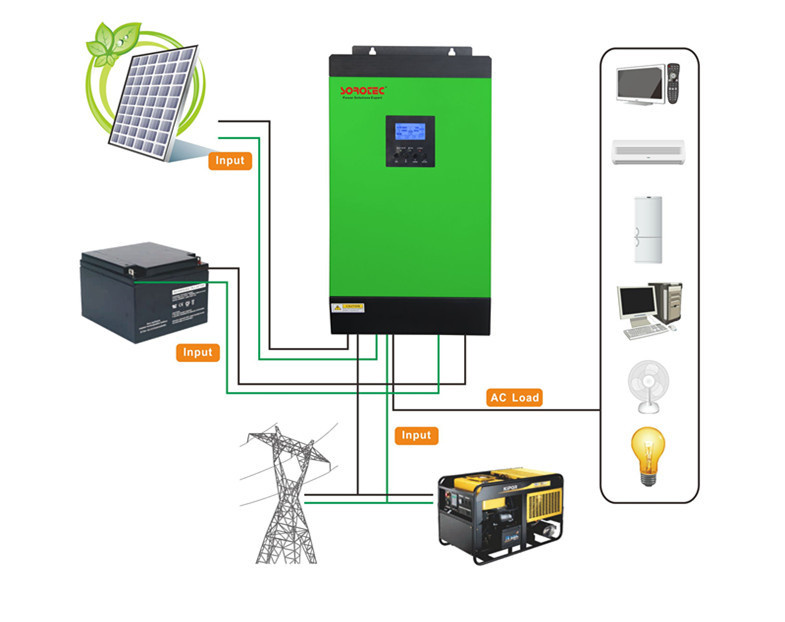

SOROTEC SSP3118C3(1000va-5000va) Series is a multi-function  Off-grid type Solar Power Inverter,which built-in MPPT Solar Charge Controller.Adopts advanced Parallel technology can achieve max 6pcs (4kva/5kva) Solar Inverter for capacity expansion ,and also can support 3 Phase input and output by parallel operation. it support Various Charging Priority Modes and Output Priorities . High Frequency with half-bridge design,Pure sine wave  can provide reliable long backup time ac power supply for home and office equipment such as:Fridge,Air-conditional,TV,Computer .etc

Key Features:
1. Pure sine wave inverter.
2. Cold start function.
3. Remote panel available.
4. Auto restart while AC is recovering.
5. Overload and short circuit protection.
6. Compatible to mains voltage or generator power.
7. Selectable charging current based on applications.
8. Configurable AC/Solar input priority via LCD setting.
9. Built-in PWM solar charge controller.
10. Smart battery charger design for optimized battery performance.
11. Parallel operation with up to 6 units only available for 4KVA/5KVA.
12. Selectable input voltage range for home appliances and personal computers.

Full Protection:

Protection for low battery voltage, over load, output short circuit and over- temperature Restrain surge interference, eliminate noise, protection for thunder striking, provide the reliable power to the home appliances.

Applications:

Supply the reliable long back up time power for the home appliances and office appliances solar power systems etc.

Product Parameter of SOROTEC SSP3118C 1000-5000VA  Hybrid Solar Power Inverter

MODEL	C1 1K-1250	C1 2K-2450	C1 3K-2450	C1 4K-4850	C1 5K-4850
Rated Power	1000VA/800W	2000VA/1600W	3000VA/2400W	4000VA/3200W	5000VA/4000W
INPUT
Voltage	230 VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers)  90-280 VAC (For Home  Appliances)
Frequency Range	50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)	230VAC ± 5 %
Surge Power	2000VA	4000VA	6000VA	8000VA	10000VA
Efficiency (Peak)	90%	93%
Transfer Time	10 ms (For Personal Computers) 20 ms (For Home Appliances)
Waveform	Pure sine wave
BATTERY
Battery Voltage	12 VDC	24 VDC		48 VDC
Floating Charge  Voltage	13.5 VDC	27 VDC		54 VDC
Overcharge Protection	15.5 VDC	31 VDC		60 VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage	50VDC	60VDC		105VDC
Standby Power Consumption	1 W	2 W		2W
Maxmum Solar Charge Current	50A	50A		50 A
Maximum AC Charge Current	20 A	30 A		60 A
Maximum Charge Current	50 A	50 A		110 A
PHYSICAL
Dimension, D x W x H (mm)	100 x 240 x 318	105x 272 x 355		120 x 295 x 468
Net Weight (kgs)	5	6.4	6.9	9.8
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	0°C - 55°C
Storage Temperature	-15°C - 60°C

ct Show:

Introduction of Company
Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.

Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system. The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.



Trade Show:


Why Choose US?
1,QC Control
The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.
2,Best Partner
We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.

FAQ
1.How to choose suitable inverter?

If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter.

For example: fans, precision instruments, air conditioner, fridge, coffee machine, computer, and so on.

Modified wave can be started with some inductive loads, but effect for load using life,because capacitive loads and inductive loads need high quality power.

 .......................................................................................................................................................................................................................................

2.How do I choose the size of the inverter?

Different types of load demand for power are different. You can view the load power values to determine the size of the power inverter.

Notice:

Resistive load: you can choose the same power as the load.

Capacitive loads: according to the load, you can choose 2-5 times power.

Inductive loads: according to the load, you can choose 4-7 times power.

........................................................................................................................................................................................................................................

3.How connection between batteries and an power inverter?

We usually believe that cables connecting battery terminal to inverter shorter is better. If you are just standard cable should be less than 0.5M, but should correspond to the polarity of the batteries and inverter-side outside. If you want to lengthen the distance between battery and inverter, please contact us and we will calculate the recommended cable size and length. Due to long distances using a cable connection, there will be a reduced voltage, which means that the inverter voltage would be far below the battery terminal voltage, this inverter will appear under voltage alarm conditions.

  .....................................................................................................................................................................................................................................

4.How to calculate the load of working hours requires configuration of the battery size?

We will usually have a formula to calculate, but it is not hundred percent accurate, because there is also the battery's condition, the old batteries have some loss,so this is only a reference value:

Work hours = battery capacity * battery voltage * 0.8/load power (H= AH*V*0.8/W)

.......................................................................................................................................................................................................................................
