| Prod Model: |
PT30 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Is Customized: |
Yes |
| Type:GPS Tracker: |
Use:Kids/ Animals/Old People |
| Real-Time Tracking: |
Sos Panic Button |
| Long Battery Life: |
Power Saving |
| Type: |
GPS Tracker |
| Use: |
Automotive&Hand Held |
| Screen Size: |
No |
| Chip: |
Ublox7 |
| Brand: |
Topshine |
| Certification: |
CE+RoHS |
Product Description

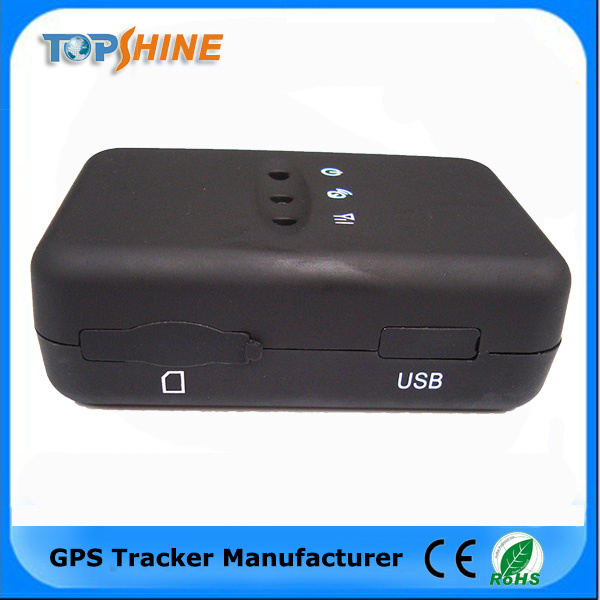

Compact Size Personal GPS Trackers with Long Standby Time,SOS Panic Button,No Installation for Kids/Aged PT30
PT30 provides an easy way to track your targets and provides peace of mind by showing you with your mobile phone or PC the location of your targets via SMS or GPRS.
Applications
* People tracking & security, like the Kids, the Elderly, the tourists
* Assets tracking & security
* Pets tracking & Security
Product Features
* No installation, mini size, easy taken
* Track by SMS/GPRS (TCP/UDP)
* Track on Demand
* Real Time tracking via the web-platform
* Track by time Interval
* Two-way conversation
* SOS panic button
* Built-in backup 950mAh battery, normal working, it can work 12 hours, sleep mode, can work 24 hours.
* Geo-fence Alarm
* Built-in sensor for power saving & GPRS flow saving mode (sleep mode)
* Speeding Alarm
* GOOGLE map URL for location via SMS, which shows you location on map via mobile phone.
* Built-in 2MB memory & position logging capacity up to 10, 000+waypoints even no GPRS signal
* Get the physical address name via SMS.
* Three buttons for making phone call and/ or sending message
| Items | Specifications |
| Dimension | 77*51*25mm |
| Weight | 96g |
| Charging Voltage | DC 4.5V~5.5V/400mA(Mini USB port) |
| SIM card type | 3V |
Power
consumption |
Active mode(peak) < 1.0A
Active mode(avg.) < 300mA |
Operating
Temperature | -20degree~+ 75degree |
| Humidity | Up to 75% non-condensing |
| External Antenna | Connected via 50Ω coax connector |
| External SIM Card | Connected via SIM card connector |
| Button | 1 SOS and 1 power on/off |
| Microphone | Optional |
| Transmit Power |
Class 4(2W) for E-GSM 900 and 850
Class 1(1W) for DCS 1800
Class 1(1W) for PCS 1900 |
| Sensitivity |
-104dBm minimum for E-GSM 900 AND 850
-102dBm minimum for DCS 1800
-102dBm minimum for PCS 1900 |
| GPS Chip | Latest GPS SIRF-Star III chipset |
| Speech Codec |
Triple rate Codec
Half rate_ETS 06.20
Full rate_ETS 06.10
Enhance full rate_ETS 06.50/06.06/06.08 |
| GPRS |
Multi-slot Class 8(4Rx, 1Tx., 5slot Max.)
Support all 4 coding schemes(CS-1,CS-2,CS-3 and CS-4)
Maximum download speed is 85.6kbps
Maximum upload speed is 21.4kbps |
| I/O |
3 panic button
1 MIC port
1 USB port |
