Long Time Standby GSM GPS Tracked by GPS/Lbs (GPT12)

Prod Model:	GPT12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number:	Gpt12
Color:	Black
Weight:	65g
GSM Frequency:	850/900/1800/1900MHz
Working Voltage:	3.7 VDC
Dimension:	96(L) * 50(W) * 11.2(H)
GPS Positioning Accuracy:	5-15meters
Lbs Positioning Accuracy:	About 200m
Battery Capacity:	5000mAh
Long Standby Time:	3years

Product Description

New long standby GPS tracker GPT12 has been released.It is widely applied for long time tracking upto 3 years.User can view the status of vehicle on tracking platform system via website and mobile APP
Default working mode is that the tracker works 5 minutes once per day, then it sleep, it will automatically wake up at that time and work for 5 mins, repeat this working mode.

PRODUCT FEATURES:
Supports quad bands, i.e. 850/900/1800/1900MHz, universal in the world.
GPS/LBS double-Positioning mode, support A-GPS
5000mAh Battery , standby for 3 years.
Long Standby mode, wake up for 5 mins a day, then sleep.
Turn to Emergency mode for real time tracking after wake up.
GEO-Fence Alarm, Low battery Alarm.
Track and config device by PC & APP online & SMS query
Switch to emergency mode to restore the real-time tracking mode
Support EELINK protocol and can be integrated to platform of customers
OTA upgrade firmware.

PLATFORM/APP:
Tracking ( Emergency Mode )
Route Play Back ( Emergency Mode )
Remote Setting
Geo-fence Alarm
Low Battery Alarm

Platform

You can choose Keelin terminal monitoring platform or not. It is designed by EELINK, we can position, playback the cars' track, listen and cut off oil of car on the platform server.

Delivery

*Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
*For order over 500pcs or customized order, please contact our sales to make sure the current inventory. Our manufacturing capacity is 1, 200, 000 units per year. And for the popular units we hold 3000pcs stocks in advance per month.

Warranty

*All products have been strictly Quality Checked in house before packing.
*All products have been well packed before shipping.
*One year warranty is provided for all models. We will bear maintenance cost during warranty.

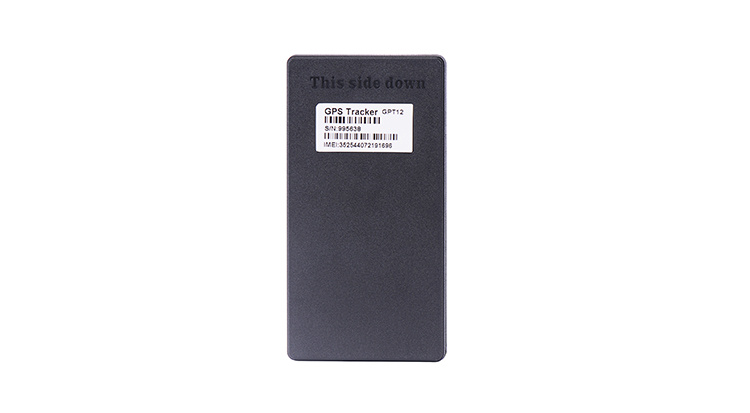

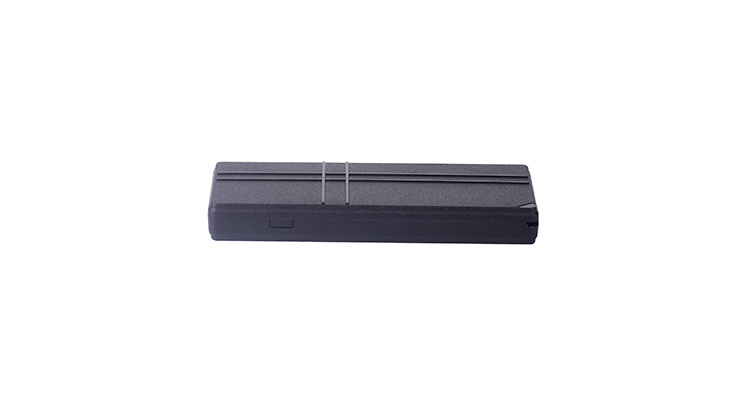

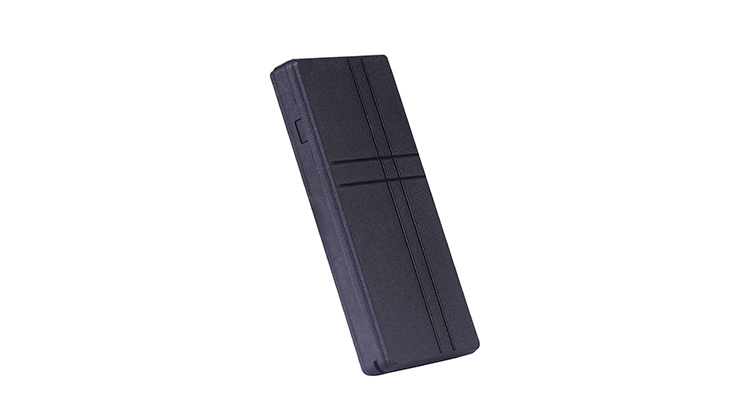

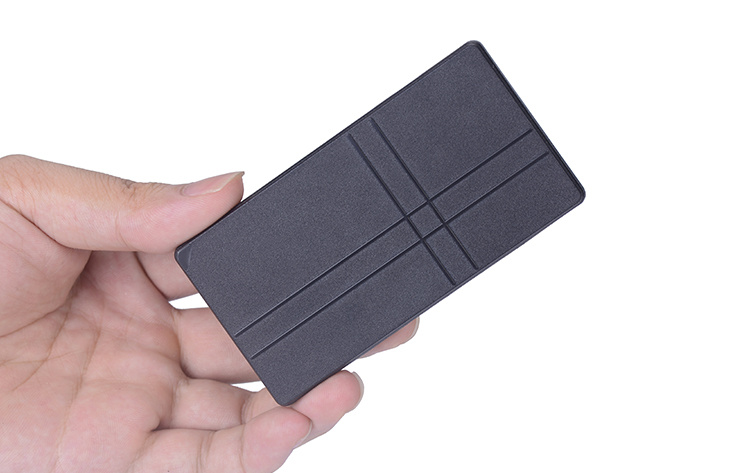

PRODUCT PICTURE:




PRODUCT PARAMETER:

Voltage	3.7 VDC
Work Current	<30 mA
Standby Current	<15 uA
GPS Accuracy	5-15m
GSM Accuracy	About 200m
GPS Frequency	1575MHz
GSM Frequency	850/900/1800/1900MHz
Hot/warm/cold Start	<3s,<15s,<60s
Battery Capacity	5000 mAh
Dimensions (mm)	96(L) × 50(W) × 11.2(H)
Work Temperature	-20ºC~70ºC
Work Humidity	20%~80%RH
Net Weight	65g
