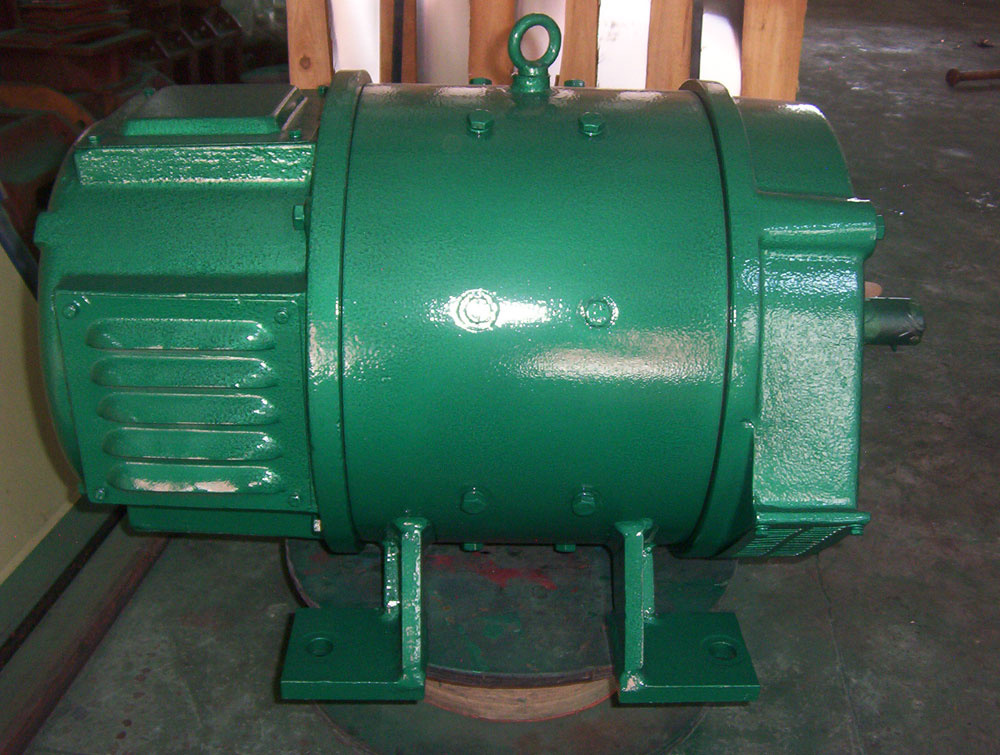

Low Constant Speed 500 Watt Electric Induction Motor

Name: Low Constant Speed 500 Watt Electric Induction Motor
Brand: all-electronics-online.com
SKU: 795811015
Availability: InStock
Rating: 4.6 (78 reviews)

Price:	US $ 800-10000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Z2
Product Name:	Low Constant Speed 500 Watt Electric Motor
Protect Feature:	Drip-Proof
W For Drivingchine Protection Rating:	IP21, IP21s, IP23 or Else
Efficiency:	Ie1
Power Range:	0.4kw~200kw
Shaft Type:	Single Shaft, Dual Shaft
Insulation Class:	B or F
Mounting:	B3, B35, V1 or Else
Duty:	S1 Continuous
Cooling Type:	IC01, IC06 or as Requirement
Application:	Industrial
Operating Speed:	Constant Speed
Excitation Mode:	Shunt
Structure And Working Principle:	Brush
Number Of Poles:	2, 4, 6, 8, 10
Brand:	China Electric

Product Description

low constant speed 500 watt electric INDUCTION motor

I. Brief introduction
Z2 series motor generally for the industrial DC motor, which are suitable for constant power speed range of not more than 1: 2, electric driving ability of overload not greater than 1.5 times the rated torque, also can be used for metal cutting machine tools, paper making, dyeing and weaving , printing, cement and other industries.
It has serveral unquie characteristics: 1. Strong wind structure; 2. Compact sturcture; 3. Riding type blower or dual-with blower; 4. Long time running; 5. Speed regulation and speed control.

II. Product parameters

Part Specifications for DC Z2 Motors
Model	Rated power	Rated voltage	Rated current	Rated rotating speed	Moment of inertia	Weight
Model	KW	V	A	r/min	kg*m2	kg
Z2-11	0.8	110	10	3000	0.012	30
Z2-12	1.1	110	13	3000	0.015	35
Z2-21	1.5	110	17.5	3000	0.045	50
Z2-22	2.2	110	24.7	3000	0.055	55
Z2-31	3	110	33.2	3000	0.085	67
~
Z2-61	10	110	107.5	1500	0.56	180
Z2-62	13	110	134.5	1500	0.65	200
Z2-71	17	110	183	1500	1	265
Z2-72	22	110	235	1500	1.2	300
Z2-81	30	110	317	1500	2.8	403
~
Z2-11	0.8	220	5	3000	0.012	30
Z2-11	1.1	220	6.52	3000	0.015	35
Z2-21	1.5	220	8.85	3000	0.045	50
Z2-22	2.2	220	12.2	3000	0.055	55

electromotor power range:0.4Kw~200Kw
electromotor rated voltage:110V and 220V
electromotor rated running speed):3000r/min, 1500r/min, 1000r/min, 750r/min and 600r/min
electrical machine power range:0.6kW~185kW
electrical machine rated voltage:115V and 230V
electrical machine rated running speed):2850r/min and 1450r/min

III. Ambient invironment
On the following conditions, this series motor can be used continuously
(1) Altitude above sea level maximal 1,000m.
(2) Cooling air temperature maximal 40C.

IV. Installation Choices & Package

serial number	code No.	installation structure	applicable motor type
1	IMB3	horizontal, motor with leg	Z2-11~Z2-112
2	IMB34	horizontal, motor with leg, end shield with small flange	Z2-11~Z2-32
3	IMB35	horizontal, motor with leg, end shield with big flange	Z2-41~Z2-82
4	IMV14	vertical, motor with leg, end shield with small flange	Z2-11~Z2-32
5	IMV15	vertical, motor with leg, end shield with big flange	Z2-41~Z2-82
6	IMB14	horizontal, motor without leg, end shield with small flange	Z2-11~Z2-32
7	IMB5	horizontal, motor without leg, end shield with big flange	Z2-41~Z2-62
8	IMV18	vertical, motor without leg, end shield with small flange, shaft extension downwards	Z2-11~Z2-32
9	IMV1	vertical, motor without leg, end shield with big flange, shaft extension downwards	Z2-41~Z2-112
10	IMV19	vertical, motor without leg, end shield with small flange, shaft extension upwards	Z2-11~Z2-32
11	IMV3	vertical, motor without leg, end shield with big flange, shaft extension upwards	Z2-42~Z2-62

Plywood case for each motor

V. Bearing brand ( reference, as customers's requirement)

Frame	vertical		horizontal
Frame	drive-end	commutator	drive-end	commutator
Z2-1	6302	6302	6302	6302
Z2-2	6304	6304	6304	6304
Z2-3	6305	6305	6305	6305
Z2-4	6307	6307	6307	6307
Z2-5	6309	6309	6309	6309
Z2-6	6309	6309	6309	6309
Z2-7	6310	6309	6310	7309ACJ
Z2-8	6311	6310	6311	7310ACJ
Z2-9	6314	6313	6314	7313ACJ
Z2-10	6317	6315	6317	7315ACJ
Z2-11	6320	6318	6320	7318ACJ

VI. Company introduction
China Electric (Shanghai) Co., Ltd. is established since 1960s. It locates in Shanghai - the most important international financial and business center of China and has employees more than 1000. Its factory is about 30,000~50,000 square meters. With rich experience in manufacturing and exploring motors, the company has got ISO 9001:2000 Management Certification, CE Certificate for European Union, UL and CSA Certificate for North America, GOST Certificate for Russia and SONCAP Certificate for Nigeria for its products.

IIV. FAQ
1. How can I get a quotation?
You can send your inquiry to the below rectangular blank directly and we will reply you in 5 hours.

2. Can I get a sample?
Yes. We can offer you a sample but it might not be free. However, we can give discount in your later order.

3. Can I view your factory?
Yes. We accept view of our factory in before order. Tell us your agenda in advance and we
can arrange then.

China ELECTRIC, Shanghai FORTUNE ELECTRIC Co., Ltd. is located in Shanghai China. It has employees more than 1000. Its factory is about 30, 000~50, 000 square meters. It passed ISO 9001: 2008. All its products passed CE Certificate for European Union, UL and CSA for North America, GOST for Russia and SONCAP for Nigeria.

China ELECTRIC is qualified to issue Form E Certificate of Origin for ASEAN customers, China-Pakistan FTA Certificate of Origin and all Preferential Certificate of Origin for Peru, Chile, India, Bangladesh and Sri Lanka. It also permitted to issue CIQ Certificate of Pre-shipment Inspection for exporting to Africa, such as Egypt.

China ELECTRIC is specialized in manufacturing and exporting electrical machines. Its main products are as below:
GW-JJ series aluminum shell mechanical tilting coreless medium frequency induction melting furnace, induction holding furnace;
GWG-J (GW-J) series steel shell hydraulic tilting coreless medium frequency induction melting furnace, induction holding furnace;
HX series electric steel-making arc furnace;
LF series ladle refinery furnace;
Continuous casting machine, CCM;
Z2, Z4 series DC motor;
Z series medium/large size DC motor;
ZYZJ series DC motor for sugarcane mill;
ZJJ800 series DC motor for rolling mill auxiliary drive
ZFQZ series frequently starting/braking DC Motor
ZSN4 series DC Motor for driving cement rotary kiln
Y, Y2, YKK, YKS series medium/large size squirrel-cage motor;
YR, YRKK, YRKS series medium/large size wound rotor slip ring motor;
YLS, YLKK, YLKS, YLST, YLKKT, YLKST series vertical type medium/large size squirrel-cage motor;
VHS series IEC standard Vertical hollow shaft motor;
OHS series NEMA standard Vertical hollow shaft motor;
China ELECTRIC is one of the biggest manufacturer and exporter for medium frequency induction melting furnace, high voltage motor and DC motor.

Customer satisfaction is the mission of China ELECTRIC. Professional, timely and careful is the basic essence and work attitude of China ELECTRIC's every member.

Thanks to the competitiveness both in quality, service and price, China ELECTRIC's products are distributed to most of the countries and regions around the world, such as Bulgaria, Croatia, Romania, Slovenia, Turkey, Armenia, Azerbaijan, Ukraine, Kazakhstan, Uzbekistan, Russia, Iran, Dubai, Yemen, Saudi Arabia, Egypt, Nigeria, South Africa, Pakistan, Sri Lanka, Mexico, Chile, Peru, Bolivia, Uruguay, Argentina, Australia, Singapore, Malaysia, Vietnam, Thailand, Indonesia, Philippines and etc. China ELECTRIC warmly welcomes both former and new customers to further develop business relationship and partnership for prosperous futures.
