Prod Model: |
WNK21 |
Model No.: |
W21 |
Output Signal: |
4-20mA, I2c, 0.5V-4.5V |
Usage: |
Pressure Measurement |
Pressure Range: |
0-300kpa^10MPa |
Compensation Temperature: |
-20~70c |
Pressure Reference: |
Gauge, Sealed Pressure |
Place Of Origin: |
Heifei, Anhui, China |
Type: |
Ceramic Capacitive Pressure Sensor |
For: |
Gauge & Sealing Pressure Measurement |
Output Signal Type: |
Analog & Digital Type |
Material: |
Al2O3 |
Wiring Type: |
Two Wire, Three Wire |
Measuring Medium: |
Liquid, Gas, Vapour |
Product Description

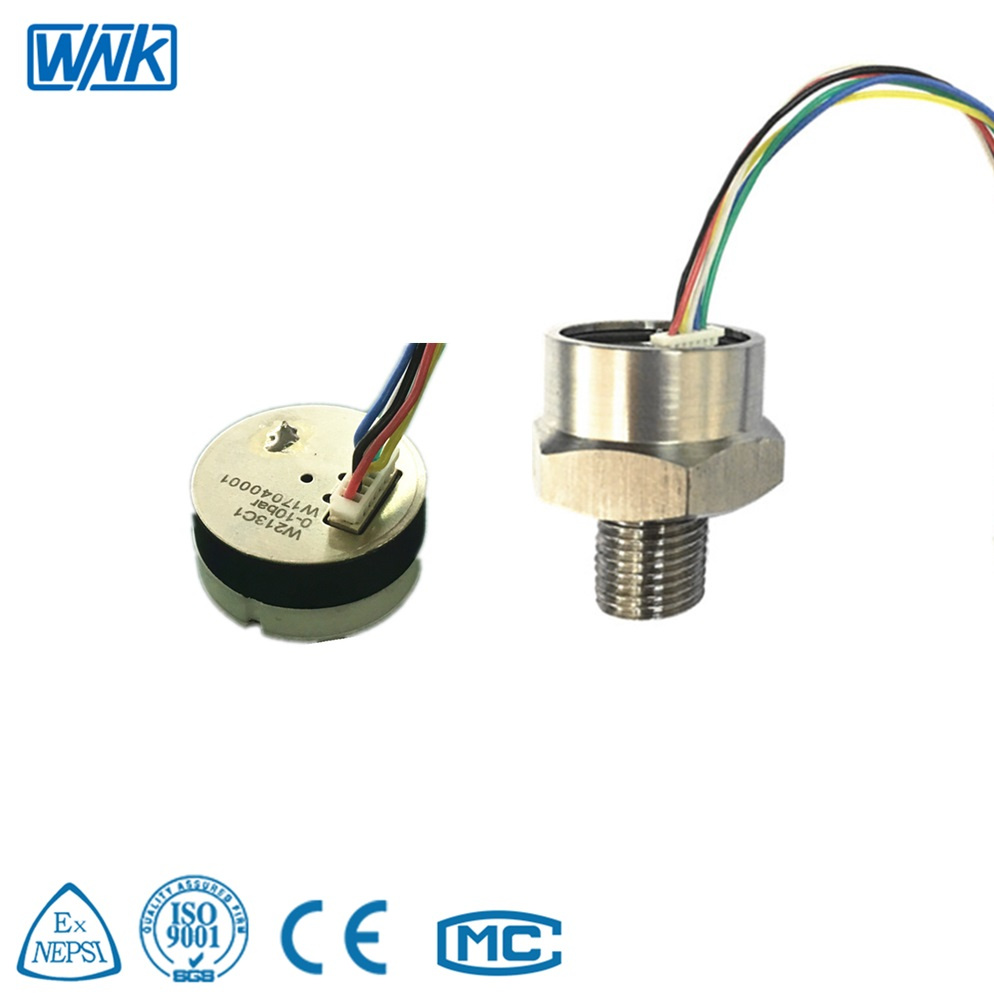

W21 series ceramic capacitive pressure sensorW21 series pressure sensor core is a dry ceramic capacitive pressure sensor which is made of special method by using ceramic material. The ceramic is a recognized material with high elasticity, corrosion resistance, abrasion resistance, impact resistance and vibration. The thermal stability of the ceramic can make its operating temperature range up to -40 to 135 ºC, and has a high precision measurement, high stability. Its anti-overload capacity of up to 100 times the range, completely solve the other types of sensors in the small range of poor overload capacity of the shortcomings, which in addition to the general sensor range, the most characteristic is its positive and negative gauge pressure function, Such as: ± 10kPa, ± 1MPa and so on. Ceramic capacitive pressure sensor with high output, wide range, especially suitable for the manufacture of high-performance industrial control pressure transmitter and adapt to the harsh environment of the pressure measurement.
Features - Pressure Sensor:• Dry ceramic capacitive pressure sensor;
• Rugged ceramic capacitor sensitive diaphragm;
• Excellent resistance to corrosion and abrasion resistance;
• Adapt to pollution and corrosive environments;
• Flat large round diaphragm, easy to install;
• Rapid response, no hysteresis;
• Wide operating temperature range;
• Sensor-specific signal conditioning;
• 0.5 ... 4.5V voltage output or I2C digital output, 4-20mA output;

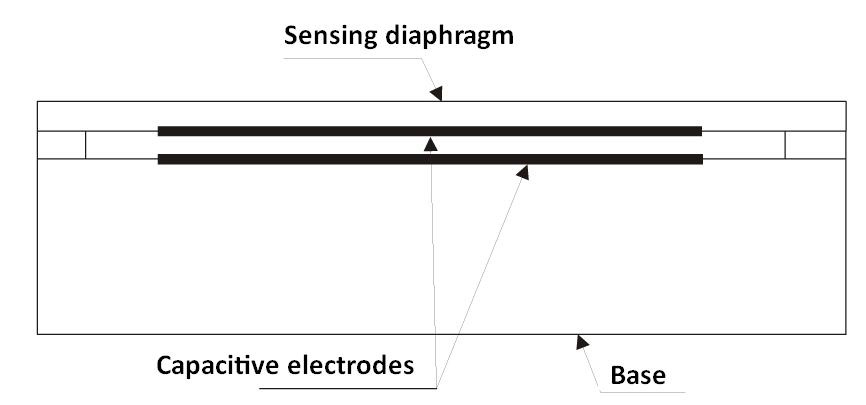

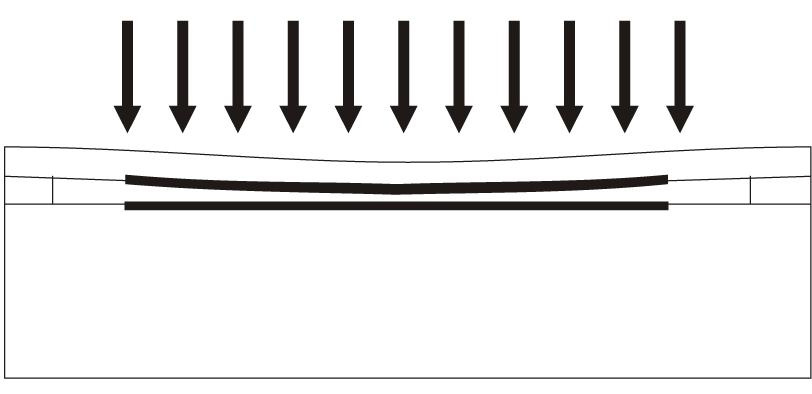

• Accurate, stable and reliable;Principle
Ordering Sheet Model | Product name |
W21 | Ceramic capacitive pressure sensor |
Code | Accuracy class |
1 | 0.2% |
2 | 0.5% |
3 | 1% |
Code | Pressure range |
A | 5bar |
B | 10 bar |
C | 20 bar |
D | 50 bar |
E | 100 bar |
We are developing other pressure range, please check with us for other pressure range. |
Code | Pressure type |
A | Absolute pressure |
G | Gauge pressure |
S | Sealing pressure |
Code | Output |
1 | 0.5…4.5V |
2 | I2C |
For 4…20mA or SPI output, please contact with us. |
Typical model:W21 1BG1 |
Why Choose us?1. We are professional manufacturer with own R&D and sales team, experienced producing experience in transmitters & sensors since 2004.
2. We have strict quality control system, each set product we do temperature compensation and aging test before shipment, so the quality is guaranteed.
Delivery
7~15 days after order confirmed
FAQ
Q1: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer with more than 13 years of experience. Our factory address is: 4/F,Bldg #6, No.168, Xiangzhang Road, High-tech District, 230088, Hefei, Anhui province, China.
Q2: What's your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.
Q3: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q4: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome
Q5: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.
Q6: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
