- Function Description
- Summary

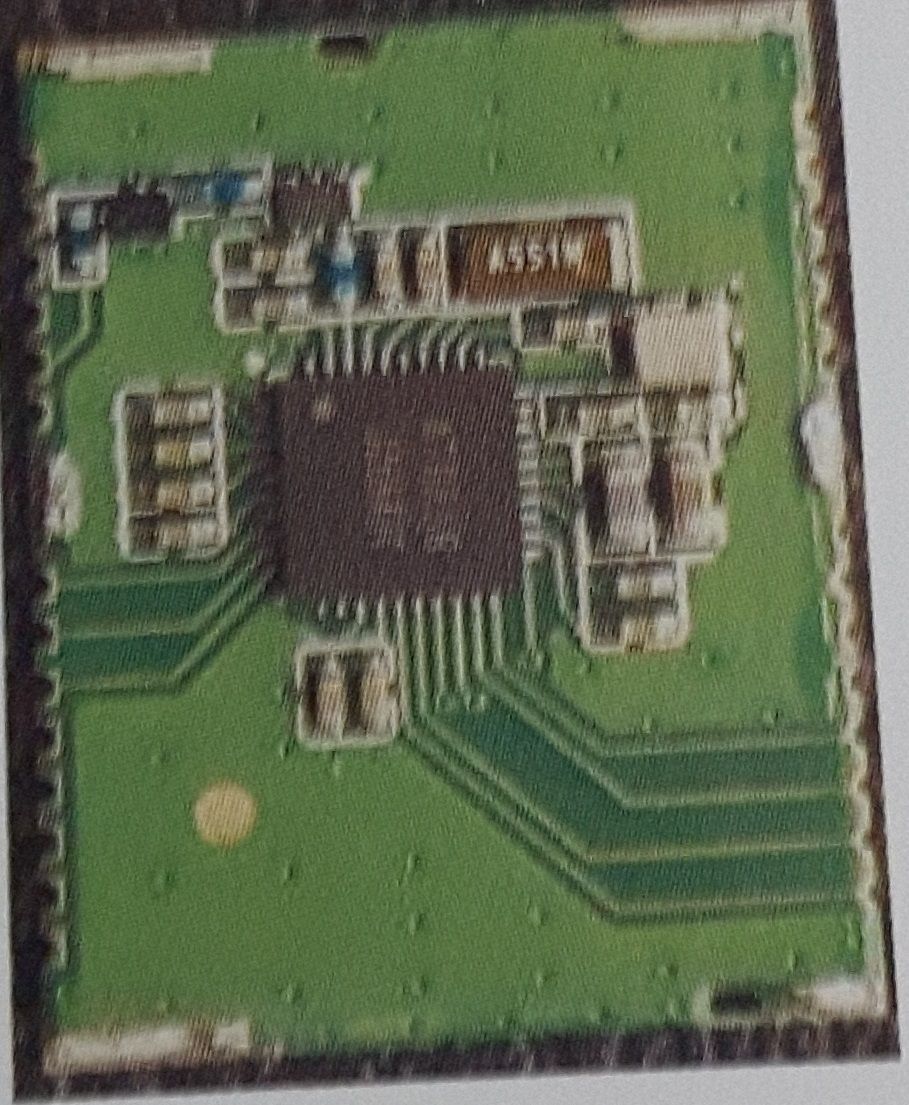

ATGM331C-5N series module is the genetic name of BDS/GNSS GPS navigation module series with good performance and 17X22.4 size. These series are based upon GNSSSOC single chip--AT6558, they support multiple systems such as BDS of China, GPS of the US, GLONASS of Russia, GALILEO of the EU, QZSS of Japan and Satellite augmentation system SBAS(WAAS, EGNOS, GAGAN, MSAS). AT6558 is the real meaning multide satellite navigation module, which contains 32 tracking channels and accept 6 GNSS signals of satellite navigation systems, it an also realize the joint positioning ,navigation and timing. This series module with the advantage of high sensitivity, low-power consumption and low cost is suitable for car navigation, handheld positioning, wearable device and can directly take place of U-blox MAX series module.- Product Selection
- Performance Index Excellent positioning and navigation function. It supports the single system positioning of the satellite navigation system, as well as any combination of multi system positioning, QZSS and SBAS systems.
It supports A-GNSS
Cold start capture sensitivity:-148dBm
Tracking sensitivity:-162dBm
positioning accuracy: 2.5m (CEP50)
Initial positioning time: 32sLow power consumption: continuous operation< 25mABuilt in antenna detection and short circuit protection
Note1: The following performance indexes suit ATGM331C-5N-1X, ATGM331C-5N-3X,ATGM331C-5N-5X and ATGM331C-5N-7X models.
Note2: As for performance index of ATGM331C-5N-2X, please conform it with sales representative - Module function diagram Multi system signal processing engine
1.5 Application FieldsVehicle positioning and navigationPhone, Pad, Handheld device Embedded positioning systemWearable device 1.6 Assist GNSS (Assisted GNSS, AGNSS)All ATGM331C-5N series modules support assist GNSS (AGNSS) function. AGNSS could supply essential support information of positioning for receivers, such as massage, rough position and time. These information can significantly shorten the time for the first time, whether it is in the strong signal environment or weak signal environment. - PPS
ATGM331C-5N series modules support precise second pulse output, pulse rising edge aligned with UTC time.- Output Protocol
ATGM331C-5N series modules output are based on NMEA0183 protocol form, and its output main channel is UART.- Flash
Flash configuration of ATGM331C-5N series modules can update position function and system by online upgrade function. Users can configure location refresh rate themselves to get suitable low power by using this configuration function. Also, users can update the latest optimization of global multi-mode positioning. In addition, users can add new control function such as location record, regular geographical enclosure and custom output format.- Online upgrade function
ATGM331C-5N series modules support the online upgrade agreement of us. Users can upgrade new software program into modules by the upgrade agreement and the communication with modules to gain new characteristics of software. Users can also remote control the devices to start the upgrade process mentioned above to realize remote online upgradation.- Antenna
ATGM331C-5N series modules support active antenna and passive antenna.- Upper computer tools
We provide "GNSSToolKit" Lite software pack (Windows Edition and Android Edition) for positioning output resolution and working mode configuration. We also provide UBF serial port upgrade tool software pack (Windows Edition) for online upgrade tools based on PC. The online upgrade program of device need to be explored by users. 2. Technical Discription 2.1 Apparent size (mm) 2.2 PCB layout (mm)2.3 PIN Pareto Diagram2.4 Pin Description| Pin Number | Name | I/O | Description | Electrical characteristics |
| 1 | TXD2 | O | Auxiliary
serial data output | |
| 2 | RXD2 | I | Auxiliary
serial data input | |
| 3 | TXD1 | O | Navigation
data output | NMEA0183 protocol |
| 4 | RXD1 | I | Interactive command input | Configuration command input |
| 5 | NC | | | |
| 6 | NVV | I | Module
power input | DC 3.3V±10%,
100mA |
| 7 | GND | I | Ground | |
| 8 | SCL | O | I2C Clock interface | NC |
| 9 | SDA | I/O | I2C Data interface | NC |
| 10 | nRESET | I | Module reset input
Low level effective | NC without using |
| 11 | VBAT | I | RTC,
SRAM backup power supply | Provide 1.5~3.6V power to make sure of warm start |
| 12 | NV | | | |
| 13 | GND | I | Ground | |
| 14 | GND | I | Ground | |
| 15 | GND | I | Ground | |
| 16 | RF_IN | I | Antenna signal input | |
| 17 | GND | I | Ground | |
| 18 | VCC_RF | O | Output power supply | +3.3V, power supply for antenna |
| 19 | ANT_PWR | I | Antenna power supply | 3.3V active antenna can be directly connected to the 18 pin |
| 20 | NC | | | |
| 21 | NC | | | |
| 22 | FWD | I | Forward and backward signals, inertial navigation | NC |
| 23 | SPEED | I | Speed pulse input,
inertial navigation | NC |
| 24 | NC | | | |
| 25 | Reserve | | | NC |
| 26 | Reserve | | | NC |
| 27 | NC | | | |
| 28 | 1PPS | O | Second pulse output | |
2.5 Electrical ParametersLimit parameters| Parameter | Symbol | Minimum Value | Maximum Value | Unit |
Module power
supply voltage(VCC) | Vcc | -0.3 | 3.6 | V |
| Backup battery voltage( VBAT) | Vbat | -0.3 | 3.6 | V |
| Digital input pin voltage | Vin | -0.3 | Vcc+0.2 | V |
| Maximum acceptable level of ESD | VESD(HBM) | | 2000 | V |
Operational Condition| Parameter | Symbol | Minimum value | Typical
value | Maxmum
value | Unit |
| Power supply voltage | Vcc
| 2.7 | 3.3 | 3.6 | V |
Vcc peak current
(with out antenna) | Ipeak | | | 100 | mA |
| Backup power supply | Vbat | 1.5 | 3.0 | 3.6 | V |
| Backup-power supply(Vbat) current | Ibat | | 10 | | V |
| Input pin | Vil | | | 0.2*Vcc | V |
| Vih | 0.7*Vcc | | | V |
Output pin | Vol
lo=-12mA | | | 0.4 | V |
Voh
lo=12mA | Vcc-0.5 | | | V |
| Active antenna output voltage | Vcc_RF | | 3.3 | | V |
| Antenna short circuit protection current | Iant short | | 50 | | mA |
| Open circuit current | Lant open | | 3 | | mA |
| Antenna gain | Gant | 15 | | 30 | dB |
2.6 Technical Specifications| Index | Technical Parameter |
| Signal Reception | BSD/GPS/GLONASS/GALILEO/QZSS/SBAS |
| Frequency channel number | Three channel receiver, support BDS, GPS,GLONASS |
| Cold Start TTFF | ≤35s |
| Warm Start TTFF | ≤1s |
| Recapture | ≤1s |
| Cold start capture sensitivity | -148 dBm |
| Warm start capture sensitivity | -156 dBm |
| Recapture sensitivity | -160 dBm |
| Tracking sensitivity | -162 dBm |
| Positioning sensitivity | <2m (1σ) |
| Precision of velocity measurement | <0.1m/s ( 1σ) |
| Timing accuracy | <30ns(1σ) |
| Location update rate | 1Hz(default value ), maximum value 10Hz |
| Serial port property | Baud rate range: 4800bps~115200bps, default value 9600bps, 8 data bits, No calibration, one stop bit |
| Agreement | NMEA0183 |
| Maximum height | 18000m |
| Maximum speed | 515m/s |
| Maximum acceleration | 4g |
| Backup battery | 1.5V~3.6V |
| Power supply | 2.7V~3.6V |
| GPS&BD typical power consumption | <[email protected] |
| Working temperature | -40ºC~+85ºC |
| Storage temperature | -45ºC~+125ºC |
| Size | 22.4mmx17.0mmx2.4mm |
| Weight | 2.2g |
2.7 Module application circuit2.7.1 Active antenna applications (modules provide antenna power supply, antenna detection and short circuit protection) - Passive antenna applications (add LNA in module RF_IN input)
2.8 ConsiderationsIn order to make full use of excellent performance of the module, users need to pay attention to the following points when using this module:Use low ripple LDO power supply, control the ripple within 50mVppVicinity of module should be no other high frequency and large amplitude digital signal. All modules are filled with ground wire.The RF input pin should be as close as possible to the wireless interface module, and be attention to impedance matching of 50 ohm.The module has the active antenna access, pull out, short circuit detection circuit itself, the antenna power supply current limit (50mA), play the role of protection while in the antenna accident short circuit. When the above 3 kinds of antenna port state change, you can get information from the serial port. Such as: $GPTXT, 01, 01, 01, ANTENNA SHORT*63$GPTXT, 01, 01, 01, ANTENNA OPEN*25$GPTXT, 01, 01, 01, ANTENNA OK*35 3. Test and Authentication of Reliable 3.1 RoSH AuthenticationATGM336H-5N series modules all meet the RoSH certification.4. Delivery and Welding of Module 4.1 Package of Module ATGM336H-5N series of modules use vacuum tape packaging, with moisture, anti-static and other characteristics, the process of using is compatible with the industry's major patch machine. Package method is 500 piece each set.4.2 Transfer and storage of module4.2.1 Moisture LevelMoisture Sensitivity Level MSL): 4As for MSL, please refer to IPC/JEDEC J-STD-020 Standard 4.2.2 Reflow profile Attention:1. Adjust the balance time to ensure a reasonable treatment of gas when solder paste melt. It can increase the balanced time if there is a lot of space. 2.Because the product will be placed in the weld zones(temperature will be over 180ºC),in order to prevent component and bottom plate from damaging, the placing time should be as short as possible.Some important characteristic of curve:Rising speed=1~4ºC/sec, 25ºC to 150ºC on averagePreheat temperature=140ºC to 150ºC,60sec ~ 90secTemperature fluctuation= 225ºC to 250ºC, about 30secDecent speed=2~6ºC/sec, to 183ºC, about 15secTotal time= about 300sec 4.2.3 Electrostatic protectionATGM331C-5N series module is one kind of electric sensitive elements. Regular electrostatic contact will cause the unexpected damage of module. Except standard ESD protection requirements, those following points should be followed:- The first position of module should always be PCB GND unless PCB GND has been connected to ground.
- Connect GND to ground first before signal lines.
- Do not touch charging capacity when contacting RF circuit, also please get away from devise and equipment which could generate static electricity such as dielectric antenna, coaxial cable and electric soldering iron, etc.
- Don't not touch medium exposed part of antenna to prevent RFIN from charge discharge. As for the exposed antenna, add ESD protection circuit.
- Please use non electrostatic gun when welding connectors connected with RFIN and antenna.
5.1 Module labelATGM331-5N module label includes some important product information, the label content format is as follows:5.2 Rules of model designationTake ATGM331C-5N-31-0 for instance, explanation is as follows:| Field | Example | Explanation |
Product code
Name of product | ATGM331C | 17mmX22.4mm series module |
Type code
Type name | 5N | Navigation module AT6558 hardware platform |
Hardware code
Hardware function name | 31 | Hardware Version=1 hardware type with GPS+BDS function |
Software code
Software function name | 0 | Standard software function version |
5.3 General order model| General order model | Product |
| ATGM331C-5N-11-0 | 17X22.4 size, AT6558 chip, navigation module, single GPS positioning, 16.369 Crystal oscillator, standard output |
| ATGM331C -5N-21-0 | 17X22.4size, AT6558 chip, navigation module, single BDS positioning, 16.369 Crystal oscillator, standard output |
| ATGM331C -5N-31-0 | 17X22.4 size, AT6558 chip, navigation module, GPS+BDS positioning, 16.369 Crystal oscillator, standard output |
| ATGM331C -5N-51-0 | 17X22.4 size, AT6558 chip, navigation module, GPS+GLONASS positioning, 16.369 Crystal oscillator, standard output |
| ATGM331C -5N-71-0 | 17X22.4 size, AT6558 chip, navigation module, GPS+BDS+GLONASS positioning, 16.369 Crystal oscillator, standard output |
5.4 Custom order modelWe provide software function customized orders for Chinese clients.As for specific cooperation and product orders, please contact the sales representative.Reference:1. AGNSS solution2. CASIC multi-mode satellite navigation receiver protocol specification3. ATGM module online upgrade agreement4. AT6558 chip data manual5. GNSSToolKitLite tool instructions6. UBF serial port upgrade tool instructions
