Low Cost Laboratory Multirange LV Current Transformers

Name: Low Cost Laboratory Multirange LV Current Transformers
Brand: all-electronics-online.com
SKU: 723576232
Availability: InStock
Rating: 4.8 (74 reviews)

Price:	US $ 88-100/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FU-100
Primary Current:	400A/500A/600A/800A/1000A/ 1200A/1500A/2000A/3000A
Overload Withstand:	1.2 Times Rated Current Continuously
Key Words:	Low Cost Current Transformer
Key Word:	Laboratory Multirange Current Transformers
Model:	LV Current Transformer
Accuracy:	0.2%, 0.5 %, 1%
System Voltage:	720V(0.72kv)
Output Signal:	1A or 5A 333mv AC or 100mv-2V Optional
Frequency Range:	40 Hz-500 Hz
Burden:	40 Hz-500 Hz
Application:	Position Sensor
Type:	Current Transformer
Phase:	Single

Product Description

Product Description

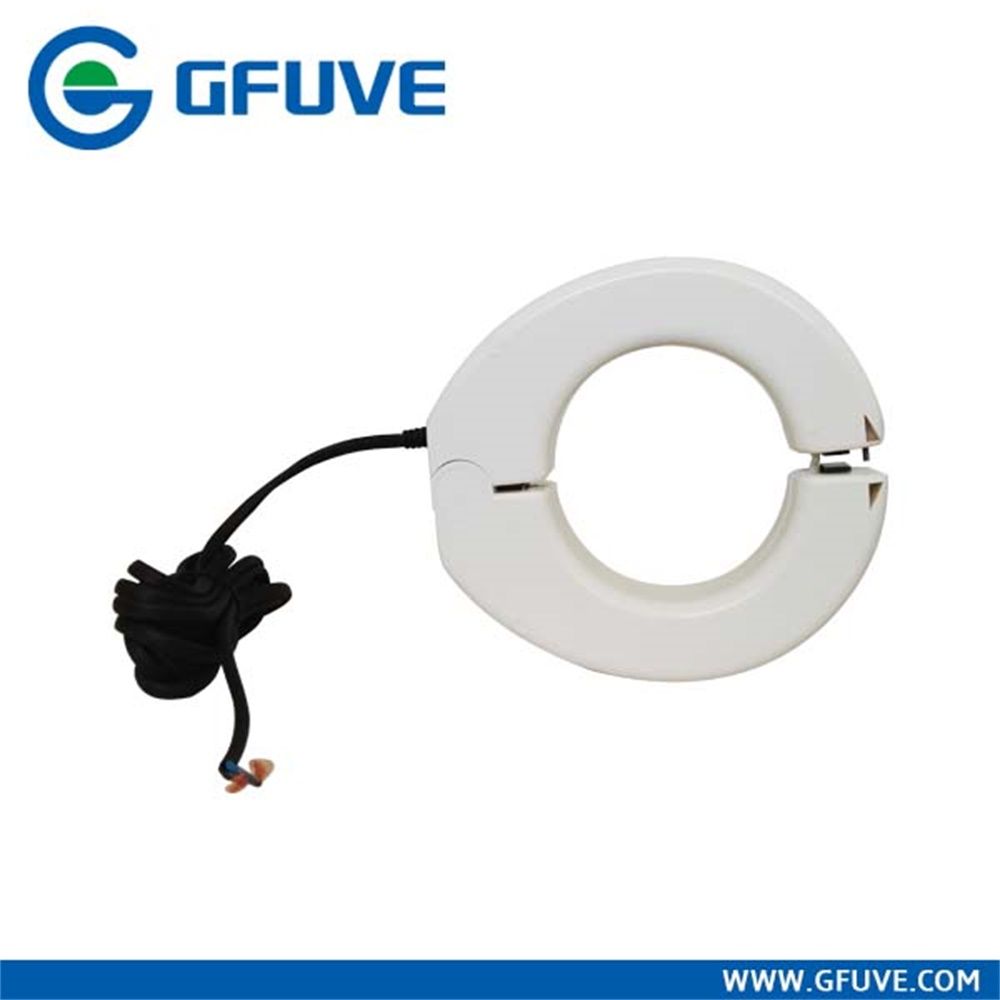

The GFUVE FU-100 low cost laboratory multirange lv current transformers are compact and low cost current transformers with high accuracy. The current transformer are ideal for quick and easy installation without disconnecting cables during installation. Multiple installation mechanisms provide stable and durable current measurement.
Applications
1. Energy sub - meter
2. Power meters
3. Power quality monitoring
4. HVAC & Pumps, etc
5. Distributed measurement system
Features
1. Most cost-effective
2. Faster installation
3. Safe and easy installations
4. High accuracy 0.5
5. Holding wire diameter: φ32mm
6. Ratio's ranging from 60/1A to 600/5A
7. CE, UL
Parameters

Technical parameters
Standards	IEC/EN60044-1 & IEC61010-1 & IEC61869-2&ANSI C57.13
Ratio	1000: 5 or 2000:5 , customized
Nominal input current(Primary current)	400A/500A/600A/800A/1000A/1200A/1500A/2000A/3000A
Overload withstand	1.2 times rated current continuously
Accuracy	0.2%, 0.5 %, 1%
System Voltage	720V(0.72kV)
Output signal	1A or 5A 333mV AC or 100mV-2V optional
Burden	2.5VA
Frequency range	40 Hz-500 Hz
Dielectric strength	3KV 50Hz/60Hz at 1 minute
Output	Standard 2.5 meter cable
Max. jaw opening	100mm
Mechanical parameters
Dimensions (W×D×H) (mm)	170mm×184.5mm×41mm
Weight(Kg)	1
Operating conditions
Operating temperature	-25°C to +55°C
Relative Humidity	0-85% non-condensing
Altitude	<3500 meters
Condition	No existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current.
