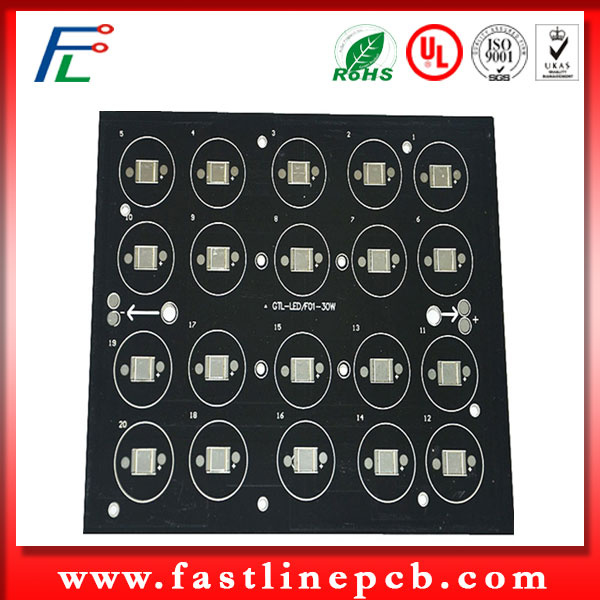

Low Cost LED Aluminum Based PCB Prototype

Prod Model:	FL350
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Board Material:	Aluminum
Board Layer:	1
Board Thickness:	0.8 mm
Copper Thickness:	1 Oz
Min. Hole Size:	0.20 mm
Min Line Width&Space:	0.15 mm
Solder Mask:	White/Black
Silksreen:	Black/ White
Surface Fnishing:	HASL-Lf
Lead Time:	5-6 Working Days
Type:	Rigid Circuit Board
Flame Retardant Properties:	V0
Material:	Aluminum
Dielectric:	Aluminium Base PCB

Product Description

Low cost LED Aluminum based pcb prototype Product Description PCB advantages: 1 R&D team support 2 UL, RoHS,ISO9001 3.IPC class2 4.Advanced production line and promtly delivery. 5,Honest Credibility in China. 6.Professional and abundant experience in PCB. 7.Competitive price and good quality. 8. Excellent after-sales service. PCB product showcase: PCB application: PCB production line: Our Services Fastline is  a leading PCB manufacturer in China. providing PCB design, PCB fabrication,PCB clone and PCB assembly services. and we have got the UL, ISO, SGS certifications. Pls see the Metal Core PCB Capability below, TECHNICAL DETAILS OF Fastline Aluminum PCB MATERIALS Aluminum   MAXIMUM LAYER COUNT 4 Layers MAXIMUM PANEL SIZE 17" x 23" (432 x 584 mm2) MIN. BOARD THICKNESS 1.0mm Al, 4 mils (0.1 mm) FR4 COPPER CLAD (inner) 1/2 oz, 1 oz, 2 oz, 3 oz, 4oz COPPER CLAD (outer) 1/2 oz, 1 oz, 2 oz, 3 oz, 4 oz SURFACE FINISHES ENTEK 106A, Immersion Gold, HAL, immersion silver SOLDER MASK LPI: Taiyo PSR 4000, Tamura DS2200, Probimer 77MA MINIMUM TRACE (width) 12.0 mils (0.30 mm) MINIMUM TRACE (spacing) 12.0 mils (0.30 mm) MINIMUM PAD-TO-PAD TOL. ± 3 mils (± 0.76 mm) HOLE SIZE TOLERANCE (NPTH) ± 2 mils (± 0.05 mm) HOLE SIZE TOLERANCE (PTH) ± 3 mils (± 0.076 mm) MINIMUM HOLE SIZE 20 mils (0.50 mm) OUTLINE DIMENSIONAL TOL. < ± 10 mils (0.25 mm) IONIC CLEANLINESS < 5 mg/in2 of NaCl (0.775 mg/cm2) IMPEDANCE CONTROL ± 10% (Differential) WARPAGE < 1% FAQ Q1: What's your minimum order quantity? A1: Our MOQ is not the same based on different items. Small orders are also welcome. Q2: what file we should offer? A2: PCB:Gerber file is better,( Protel ,power pcb,PADs file), PCBA : Gerber file and BOM list. Q3: What any other information should be offered except for file? A3:Following specifications are needed for quotation: a) Base material b) Board thickness: c) Copper thickness d) Surface treatment: e) color of solder mask and silkscreen f) Quantity Q4: I am very satisfied after I read your information, how can I start to purchase my order? A6: Please click the "send" at the bottom of this page or contact our sales on Trade Manage online! How to Contact Us? Would like to know more about the product? Send us inquiry, click "Send" now! More information about PCB, pls contact with us!
