Low Cost Pressure Sensor of Sinoder Company for Sale
| Price: |
US $ 10-100/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,D/P |
| Prod Model: |
T901 |
| Capacity: |
5,10,30,35,40,50,60MPa |
| Rated Output: |
0.8~1.5mv/V |
| Weight Approx.: |
φ3×1500mm |
Product Description

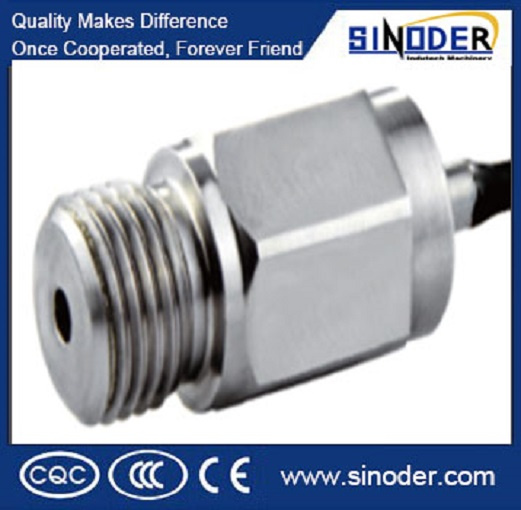

low cost pressure sensor of SINODER company
Features & Applications
1, Made of stainless steel
2, Miniature pressure sensor
3, Light weight and flexible to install, easy to use, IP65 protection
4, High precision and high stability
5, Widely used for electricity sewage treatment,combustion engines, engine hydraulics and pneumatic systems ,6, water supply system and other industries liquid as well as gas measurement and control.
| | Technique |
| Capacity | 5,10,30,35,40,50,60Mpa |
| Rated output | 0.8~1.5mV/V |
| Zero balance | ±10% F.S. |
| Comprehensive accuracy | 0.25~0.5% F.S. |
| Temp.effect on output | 0.05%F.S./10ºC |
| Temp.effect on zero | 0.05%F.S./10ºC |
| Input impedance | 350Ω |
| Output impedance | 350Ω |
| Insulation | ≥5000MΩ/50VDC |
| Recommended excitation | 5~10V |
| Compensated temp range | -20~60ºC |
| Operation temp range | -40~125ºC |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | φ3×1500mm |
| Weight approx. | 0.1kg |
| Material | Stainless Steel |
| IP Class | IP65 |
Company info:
Zhengzhou Sinoder Machinery Co., LTD is not only a manufacturer, but also an innovator in sensor industry, who is specializing in Automotive Pressure Sensor, Domestic Pressure Sensor, Industrial Pressure Transmitter, Digital Pressure Gauge, Control Gauge, and Alarm Gauge. All our products reach or surpass the criteria of the same type of foreign products, among which, HM1000 series, HM4000 series, HM5000 series products are out of the domestic initiative, which are leading the technology tide.
Our company currently has an annual output capacity of about 2 million units of various pressure sensors, with a professional Research and Development team, and quality assurance ability. Its distribution network has covered most markets of China as well as Europe, America, Min-East, Southeast Asia and other places.
We provide high quality OEM services. We also look forward to starting friendly, extensive and profound cooperation with all the clients.
FAQ:
If you want to know more information about the vegetable processing machine, welcome to contact me:
Tel: 0371 55933391 Fax: 0371 55919082
Sinoder Group is a joint-stock machinery developing enterprise group, integrating industrial scientific research, production, marketing, installation, commissioning and training service.
Sinoder group company obtained outstanding member of Chinese Cereals and Oils Association and of Chemical Association, approved by the State Quality and Technical Supervision of "Pressure Vessel Manufacturing License" "Pressure Vessel Design License" "Pressure Piping Installation License" "Pressure Piping Design License", with many years of grain and oil machinery, chemical equipment and the advanced mechanical design, manufacture, installation history.
Sinoder Group establish a long-term technical cooperation relations with School of Food Science and Technology, Engineering Research Center of Henan University of Technology, Xi'an Oil Grease Institute, Zhengzhou Machinery Research Institute and our customers, ensure the technical content of product and process innovation.
We have 368 staffs including more than 42 professional technical personnel. Company organizations are: Engineering technology department, marketing services dept., integrated management dept., financial management dept., machinery manufacturing center and the research and development center and other departments. We have 25 engineering design staff. All design are by computer operations, and passed the ISO9001-2000 quality management system certification forming a set of scientific research, production and development together.
Scientific and technological innovation, excellent quality, customer satisfaction is our consistent business principle, service is company's long-term commitment.
In recent years, the company has completed hundreds of projects involving the exploitation of oil pretreatment, extraction, oil refining, animal oil refining processing, small varieties of oil deep-processing, bio-diesel and other technologies, the projects cover more than 20 domestic provinces and cities, autonomous regions and export to South Africa, Ethiopia, South Asia, Pakistan, Russia, Peru, Argentina and other dozens of countries, especially in Uzbekistan, the Sinoder Group finished 18 sets of edible oil projects. Our proudct well received by customers at home and abroad.
What We Do Now In Oil & Grain Industry:
1) Oil Screen, Drying, Storage Engineering, 5-1000t/D
2) Plant Oil Pretreatment, Squeezing, 5-1000t/D
3) Plant Oil Leaching, 3-1000t/D
4) Continuous And Semi-Continuous Salad Oil Physical Refining, 10--600t/D
5) Senior Cooking Oil Refining, 1t/D-1000T/D
6) Cottonseed Dephenolizing Protein, 50--500t/D
7) Oil Fractionation, 5--600t/D
8) Corn Oil, Rice Bran Oil, Sunflower Oil Winterization Dewaxing Production Line, 5--300t/D
9) Purely Physical Squeezing Produced Flavor Sunflower Oil, 5--1000t/D
10) Tea Seed, Walnut, Almond, Chinese Prickly Ash Seed, Grape Seed Special Oil, 1--20t/D
11) Soybean, Peanut Protein Concentrate, Active Protein Powder, 5-300t/D
12) Tea Seed Squeezing, Tea Saponin Extraction, 3--500t/D
13) Chickens, Ducks And Other Animals Skeleton, Waste Squeezing Preparing Meat And Bone Meal Powder, 5--50t/D
14) Animal Oil Low-Temperature Concentrated Extract, 5--600t/D
15) Bio-Diesel, 5--300t/D
16) A Class, Second Class Pressure Containers And Grease Chemical Equipment
17) 10-1000T/D Grain and creal drying process machinery
18) Animal Feed pellet production plant
19) 10-1200T/D industrial material drying machinery
20) Coal Gasifier station solution and machinery
21) Load cell sensor, moisture meter, gauge
