Low Cost Water/Air Pressure Sensor with 0.5~4.5V Output, OEM&ODM Available

Name: Low Cost Water/Air Pressure Sensor with 0.5~4.5V Output, OEM&ODM Available
Brand: all-electronics-online.com
SKU: 807111935
Availability: InStock
Rating: 4.8 (133 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WNK811WK
Model No.:	Wnk811wk
Output Signal:	Analog Type
Pressure Range:	0-1000kpag
Operating Temperature Range:	-20~85ºC
Pressure Reference:	Gauge
Place Of Origin:	Heifei, Anhui, China
Diameter:	20mm
Supply Power:	4.75~5.25VDC
Component:	OEM Technology
Measuring Medium:	Liquid, Gas,

Product Description

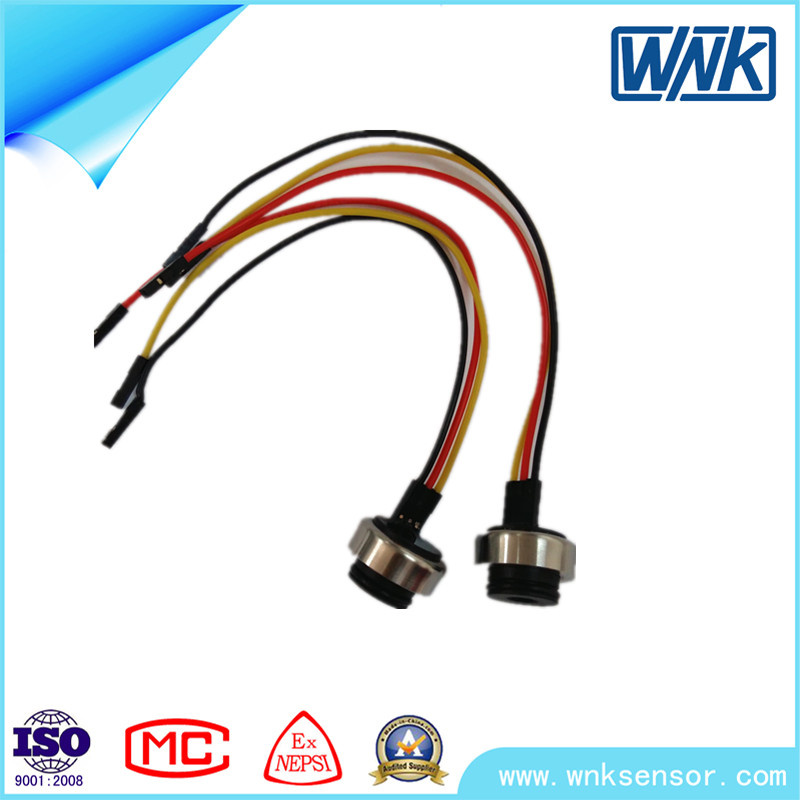

WNK811WK super mini stainless steel water pressure sensor

1.Mini dimension-- diameter smaller than a coin
2.Various accuracy for option
3.High quality stainless steel housing
4.High cost-effective
5.OEM, ODM serive provided

Specifications:

Technical Performance
		Units
Power supply	4.75~5.25	Vdc
Supply current	15	mA MAX
Connection	See Pic 2	--
Operating Pressure Range	0~1000	KPaG
Medium	Clean&non-corrosive gas or liquid
Operating Temp. Range	-20~85	ºC
Proof Pressure	3000	kPa
Burst pressure	8000	kPa Gauge
Output range	0.5~4.5	V
otal Error Band	±3%Vcc
Housing material	316L

Notes:
1. Wiring connections are adjustable as per client's requirement;
2. Sensor housing is 316L, customizable as per client's requirement;
3. Sensitive element of sensor is sealed with silicon oil, do not touch or press the stainless steel
moire diaphragm during operation;
4. Sensor has a NBR external sealing ring, this part also is customizable as per client's requirement.

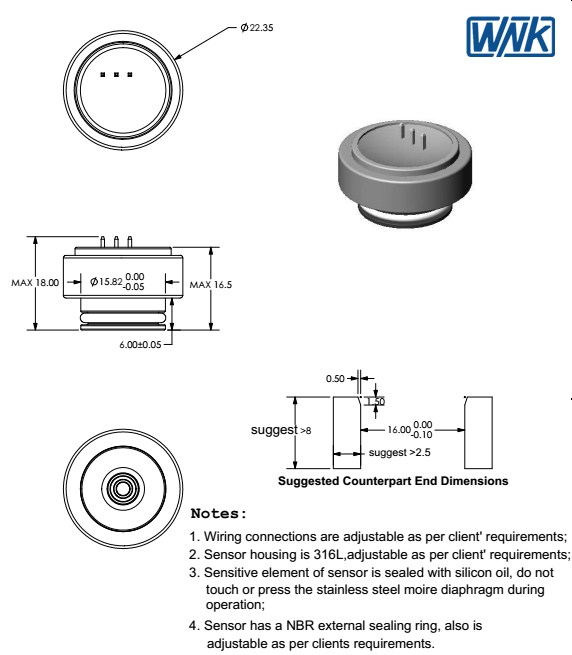

Dimensions(mm):

Payment Terms

1. Port of Loading: Shanghai China
2. Samples Lead Time: 3-7 working days
3. Delivery Time: 7-15 working days after payment
4.Payment: T/T, Western Union, Paypal

After-sales service

We promise to deliver the following after-sales service:
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. For on-site services not caused by manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges such as travel expense;
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.

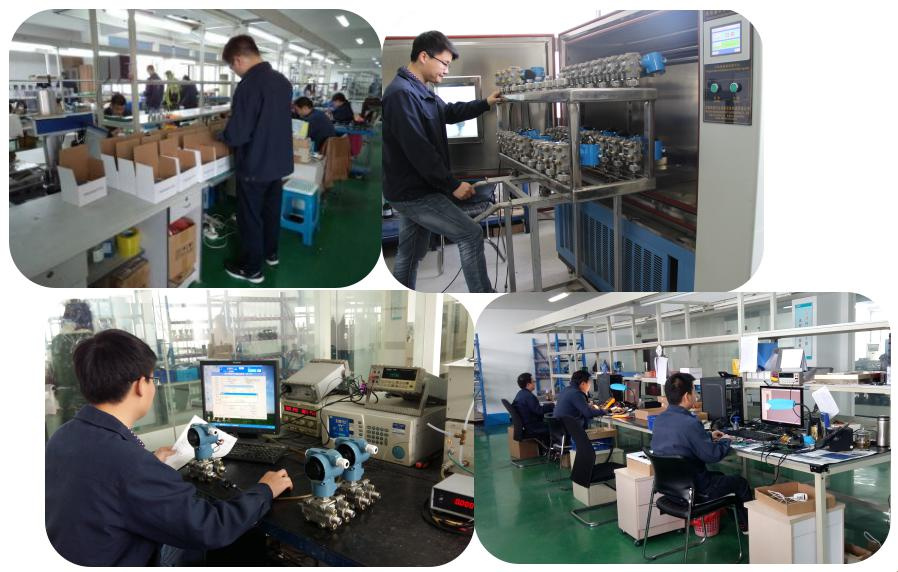

Factory Pics:

Founded in 2004, ANHUI WNK ELECTRONIC ENGINEERING Co., Ltd is a hi-tech company specializing in different kinds of technologically-advanced and good quality sensor, transmitter and automation instrument. We devote to developing, manufacturing and selling of automation control system, providing our customers comprehensive fieldbus technical solutions and factory informatization construction.

Our main products include iEOS industrial cloud data base developing plate form; Industrial Internet of Things; WNK-WMS industrial wireless measurement system; Onsite measurement instruments like temperature, pressure, flow, level sensor and transmitter etc, widely applied in Petrochemical, Chemical, Power, Steel and Cement.

WNK is the third company in China developed PROFIBUS transmitters. WNK series PROFIBUS transmitter is the fourth in China certificated by international PROFIBUS organization, and Chinese first that completely having proprietary intellectual property rights. WNK PROFIBUS-PA temperature transmitters filled Chinese blank technology in the field.

With strict, scientific management system, WNK has been certificated to conform to standard GB/T 19001-2008 / ISO 9001: 2008 by China CLASSIFICATION SOCIETY CERTIFICATION COMPANY. WNK commits to developing of new products and technical innovation. With continuously effort in advanced technology of automation control system, WNK has been undertaking some innovation projects of MST (Ministry of Science and Technology), and has been honored as promising enterprise of "Giant of Technology "in Hefei Hi-tech Industry Development Zone.

As Chinese first and unique qualified production enterprise of 0.075% measurement in Anhui, WNK brand was awarded Anhui Famous Brand.
