Low Cost Water Pipe or Gas Pressure Sensor

Name: Low Cost Water Pipe or Gas Pressure Sensor
Brand: all-electronics-online.com
SKU: 838625535
Availability: InStock
Rating: 4.9 (133 reviews)

Price:	US $ 25-45/Piece
Min Order:	5/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QP-83C pressure sensor
Measure Range:	0~0.5MPa,0~20MPa
Accuracy:	0.5%Fs
Output Signal:	4~20mA;0~10V, 1~5V, 0~5V, 0~20mA
Power Supply:	12~36(Standard 24VDC)
Housing Material:	Stainless Steel
Material Of Diaphragm:	316L Stainless Steel
Application:	Measuring Gas and Liquid
Operating Temperature:	-20 Degree to 100 Degree
Measuring Medium:	Gas and Liquid

Product Description

Production Introduction:

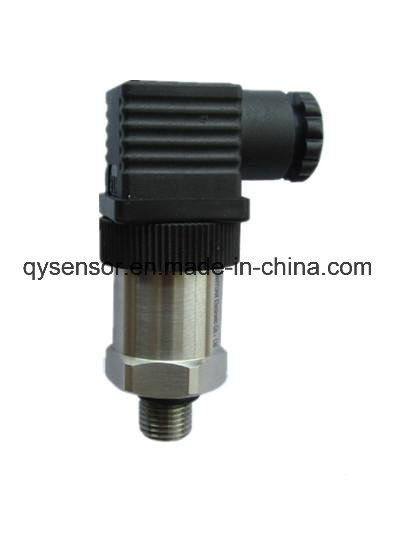

Model: QP-83C low cost water pipe or gas pressure sensor
Range: 0~0.5MPa, 0~0.6MPa, 0~1MPa, 0~1.6MPa, 0~2MPa, 0~2.5MPa, 0~3MPa, 0~4MPa, 0~5MPa, 0~10MPa, 0~16MPa, 0~20MPa

Features:

It has a strong corrosion resistance
Good stability
Integral structure, easy installation
Be suitable for a wide range of using
The range of medium temperature: -20ºC~100ºC
The range of high temperature: -30ºC~150ºC(Customized)
Adopting high precision components, it's will to work in the harsh environment.

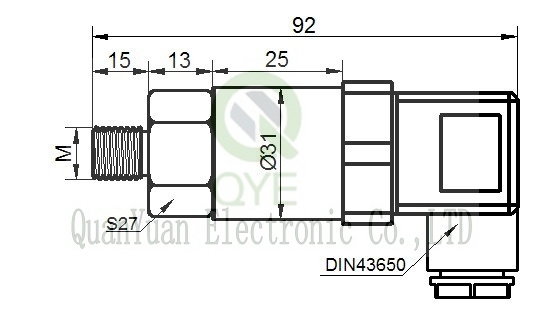

Dimensions: (unit: mm)

Technical Specifications:

Measuring media	Gases or liquids which are compatible to 316L stainless steel
Measuring range	0~0.5MPa, 0~0.6MPa, 0~1MPa, 0~1.6MPa, 0~2MPa, 0~2.5MPa, 0~3MPa, 0~4MPa, 0~5MPa, 0~10MPa, 0~16MPa, 0~20MPa
Pressure type	Gage pressure
Signal output	transmitter, mA (2 wires)	4~20mA
Signal output	transmitter, Vdc (3 wires)	0~5V, 0~10V,1~5V, 0~20mA
Combined accuracy	%FS	±0.5(Standard), ±1(Max)
Long stability	≤±0.2%FS/year
Power supply	Vdc	12~36(Standard 24Vdc)
Compensated temp.	ºC	-10~+60
Operating temp.	ºC	-20~100
Temperature coefficient of ZERO	%FS/10ºC	≤±0.3
Temperature coefficient of SPAN	%FS/10ºC	≤±0.3
Insulation resistance	MΩ	>500 @ 100Vdc
Electrical connection	DIN43650
Material	Stainless steel
Pressure connection	G 1/4,ZG1/4, M20×1.5, M14×1.5(Customized)
Environment protection	IP	65
Safe overload	%FS	150
Ultimate overload	%FS	200

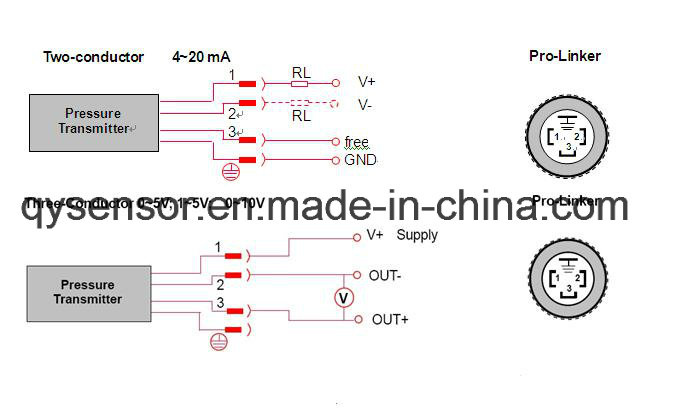

Electrical connection:

Packaging & Shipping:

All products can be shipped by International Express including EMS,UPS,FedEx,DHL and TNT as you required. By plane or by ship is available, too. The detailed can be discussed with our sales.We will choose the safe and cheapest way for you to reduce your cost.

All products will be well packed in hard paper box properly and security. Packing list will be enclosed inside the box. Please take care of this when you unpack the package.

Our Services:

1. OEM/ODM Services:
Our company provides OEM/ODM service and Customized products service.
With know-how technique and mass production capability, we are able to provide the specified sensing solution according to customer's application.

2. Quality Quarantee
We quarantee product quality for one-year starting from the date of delivery.

FAQ:

1. What is the MOQ?

For different product,the MOQ is different.But we can supply you samples.

2:How long will you give me the reply?
we will contact you in 12 hours as soon as we can.

3.How about the price?

As we believe the quality is the most important,we will provide the best quality product with reasonable price.

4:Could I visit your factory?
Of course,if you need we will help you to visit our factory.

5:If I have paid,when will you help me to produce?
When we have received the money in our account,we will give you the receipt and arrange to produce immediately.

6. What is lead time?

If we have it in stock, we can ship it to you within about 3-5 working days.

If we don't have it in stock, the lead time will be 10-30 days.
If the product is urgent,please tell us and we will try our best to satisfy you.

7. What is the payment terms?

All T/T,Western Union,Paypal are acceptable.

8. What is the express delivery?

DHL, Fedex, TNT ,EMS, UPS etc.

If you order large quantity products,the most economic shipping way will be by sea or by air transport.

9. What is the quality guarantee?

Quality guarantee:12 months

If the product has quality problem within 12 months, please return it to us, we will repair it; if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.

And you will pay the shipping cost of returning to us, we will pay the shipping cost to you.

10. Is there any after-sale servince?

After you receive our product, if you have any questions or need any assistance, we can provide you the after-sale service by e-mail,skype,trade manager,telephone and QQ etc.

Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.

QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).

All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.

In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.

Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
